RAM Tough-Track – 9″ Track for 1 3/4″ – 2″ Rails

RAM Tough-Track – 9″ Track for 1 3/4″ – 2″ Rails

OVERVIEW

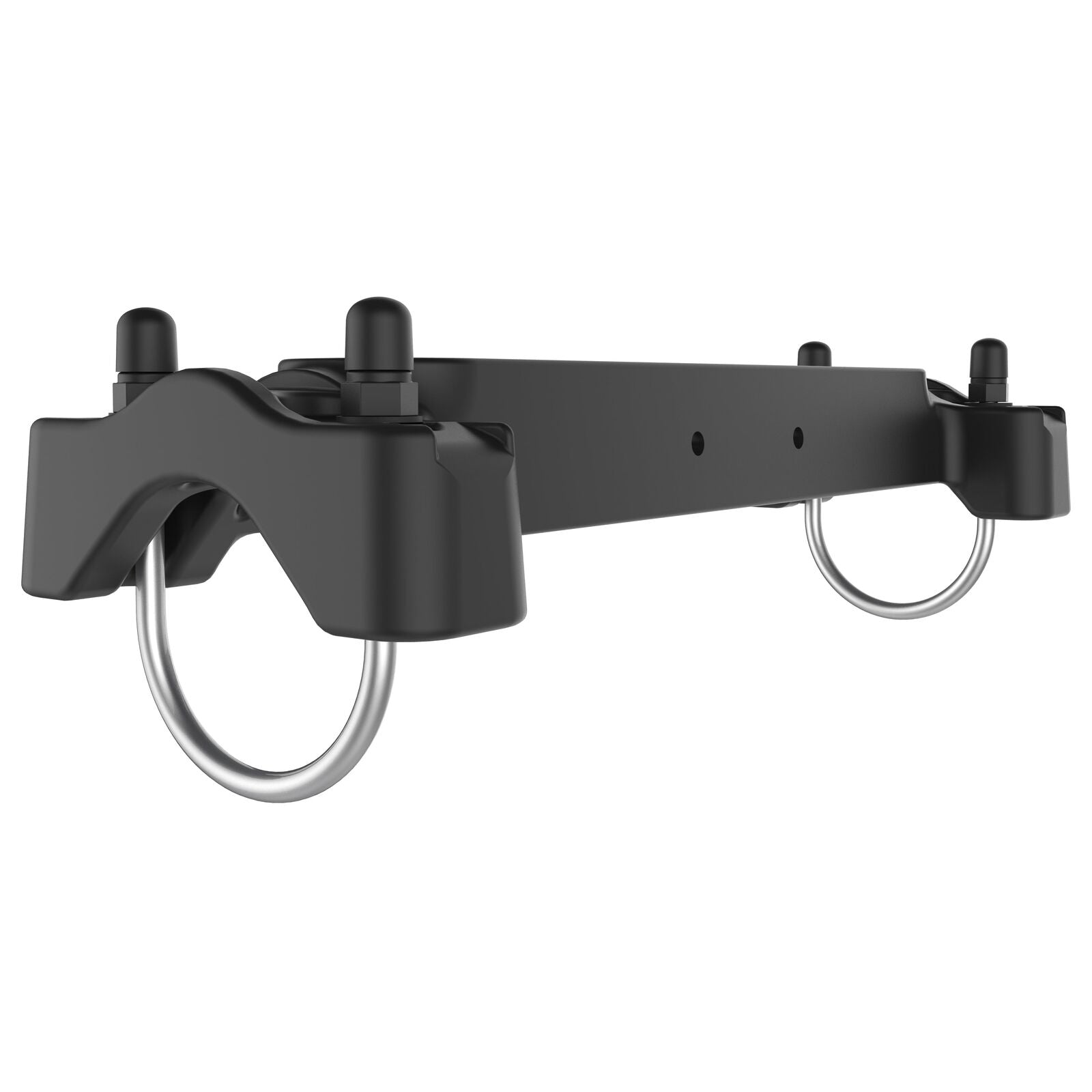

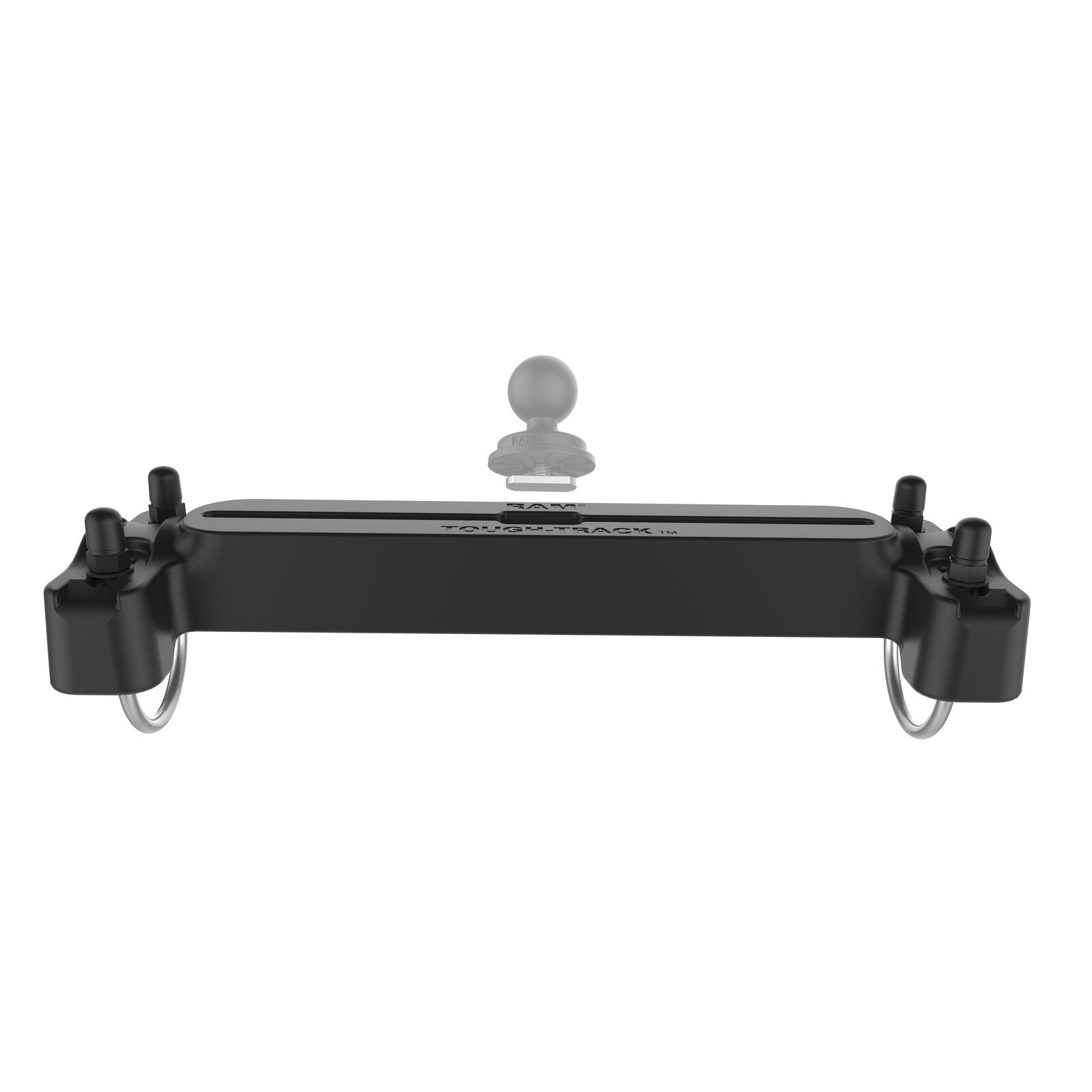

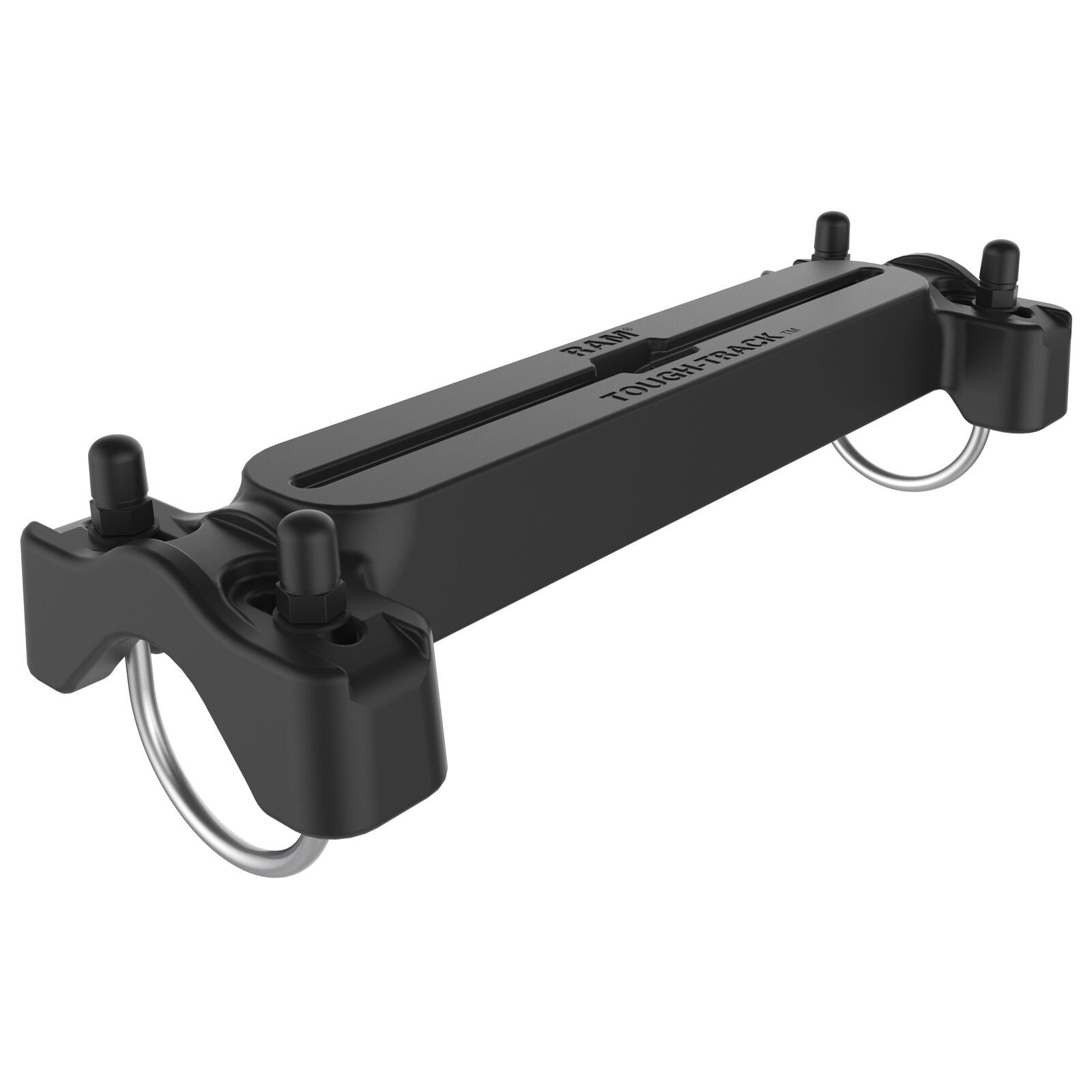

With the RAM® Tough-Track™ for tubes, bars, and rails, create an ideal track mounting surface compatible with a wide variety of RAM® Track Ball™ mounts and components. This 12” RAM® Tough-Track™ features a two-hole AMPS hole pattern on the side for attaching a RAM® diamond base. All necessary U-bolt hardware is included to attach the RAM® Tough-Track™ to 1 ¾” and 2” tubes, bars, and rails. Hardware for attaching to a 2 ¼” or 2 5/8” tube, bar, or rail is available separately. Other options for attaching to irregular shaped rails include RAM® strap clamp mounts.

HARDWARE INCLUDED

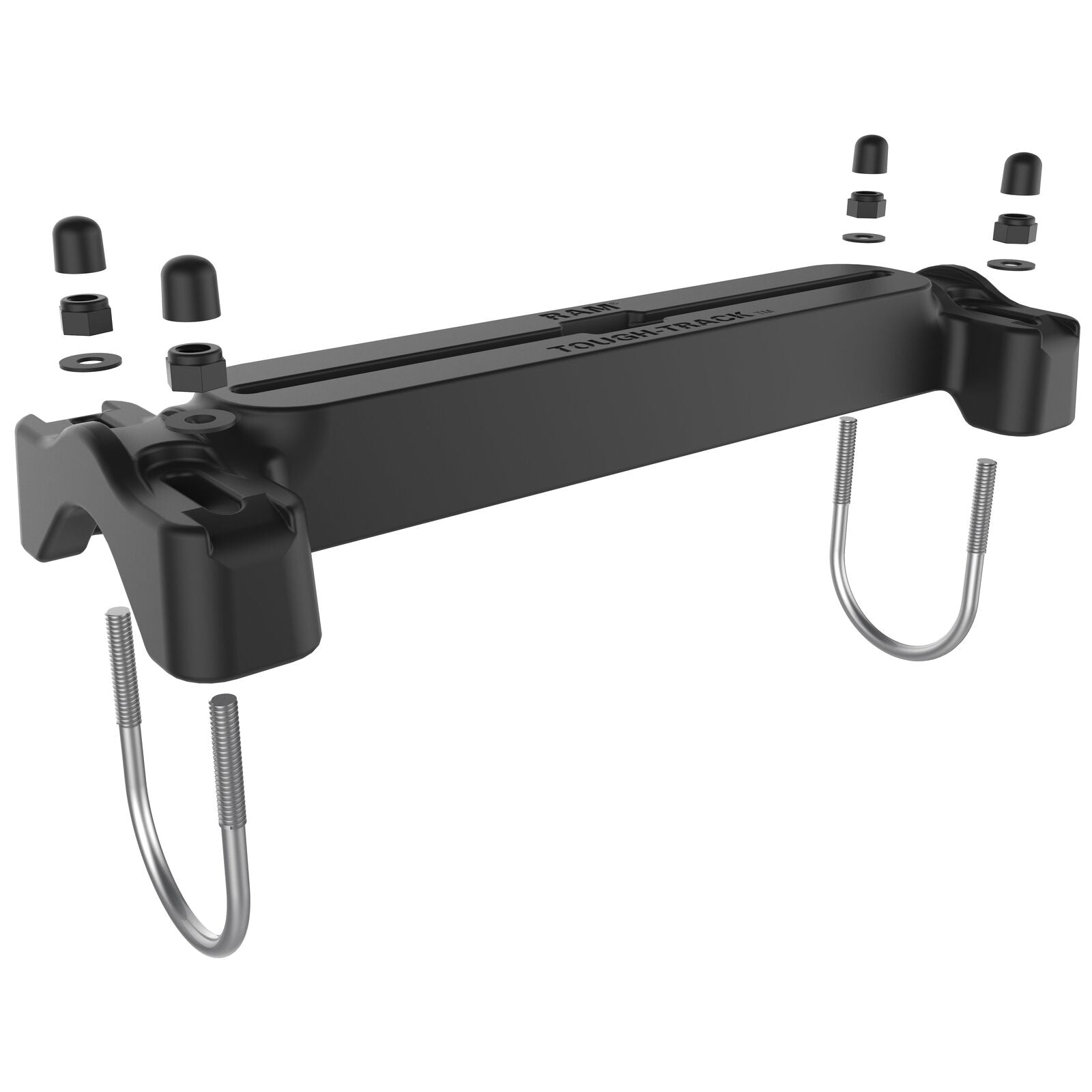

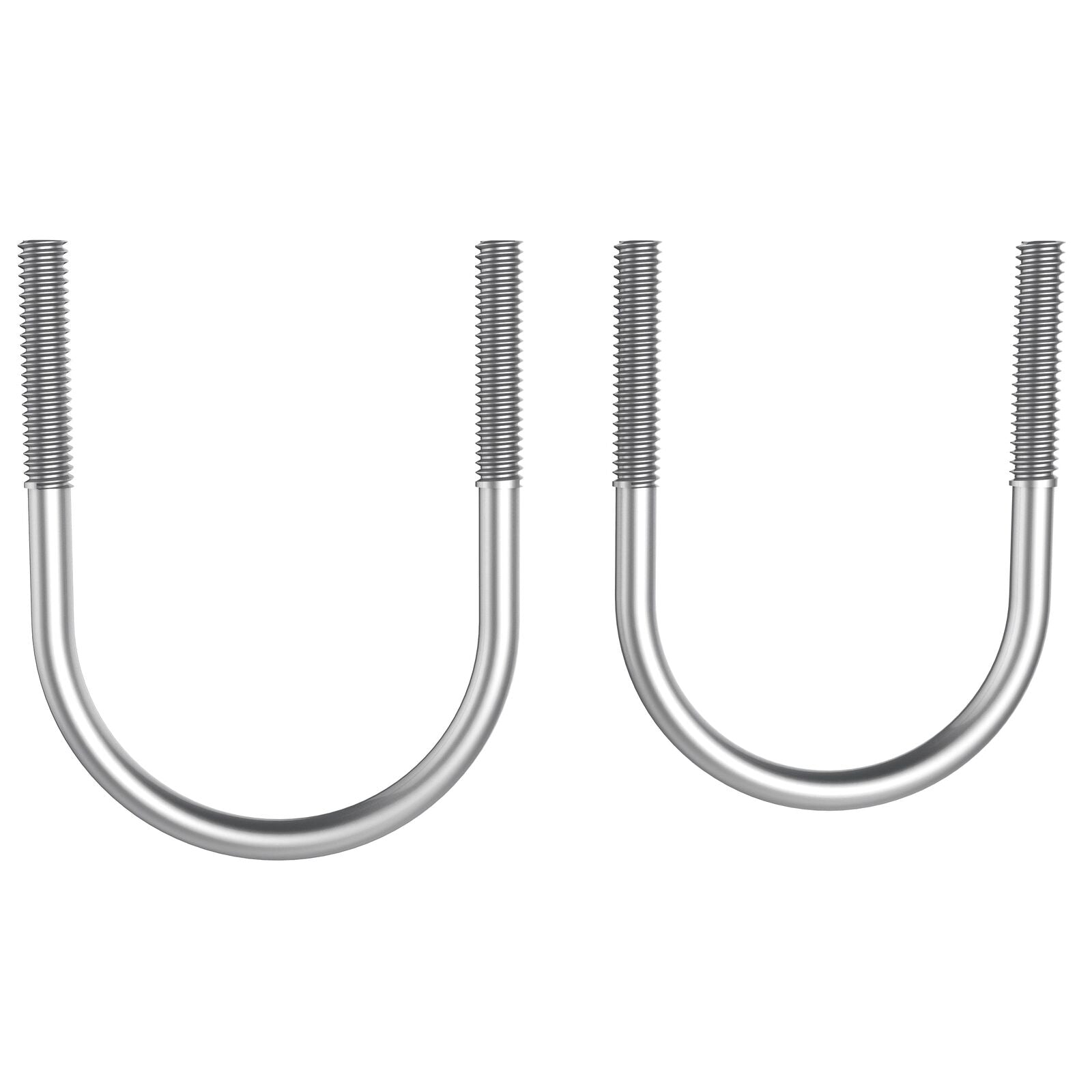

(2) 1/4"-20 U-Bolts for 1.75"Rails(2) 1/4"-20 U-Bolts for 1.75" - 2" Rails(4) #12 Stainless Steel Flat Washers(4) 1/4"-20 Nylock Nuts(4) Rubber Caps

PRODUCT DIMENSIONS

Inside Track Length: 9"

CLAMP RANGE

1.75" - 2" diameter

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.91 lb
