Overview

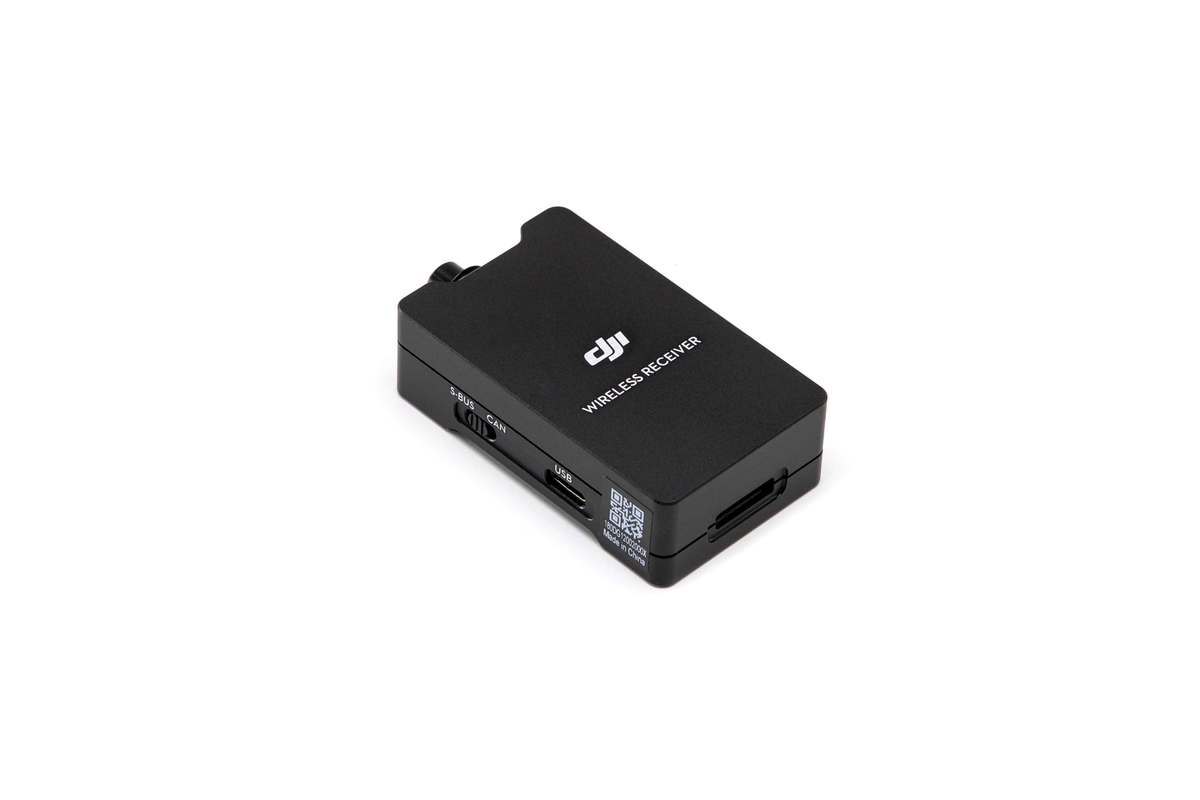

Use with DJI Force Pro and DJI Master Wheels to enhance signal resistance, extending the control range up to 3 km (free of obstacles), or use it to connect DJI Force Pro and DJI Master Wheels with Ronin-S to control gimbal movement.

Please click here to view the User Guide.

Highlights

Use with DJI Force Pro and DJI Master Wheels to extend control range and reduce control latency.

Tips

When using with Ronin-S, mount the DJI Pro Wireless Receiver next to the gimbal with the Ronin-S/SC Cheese Plate.

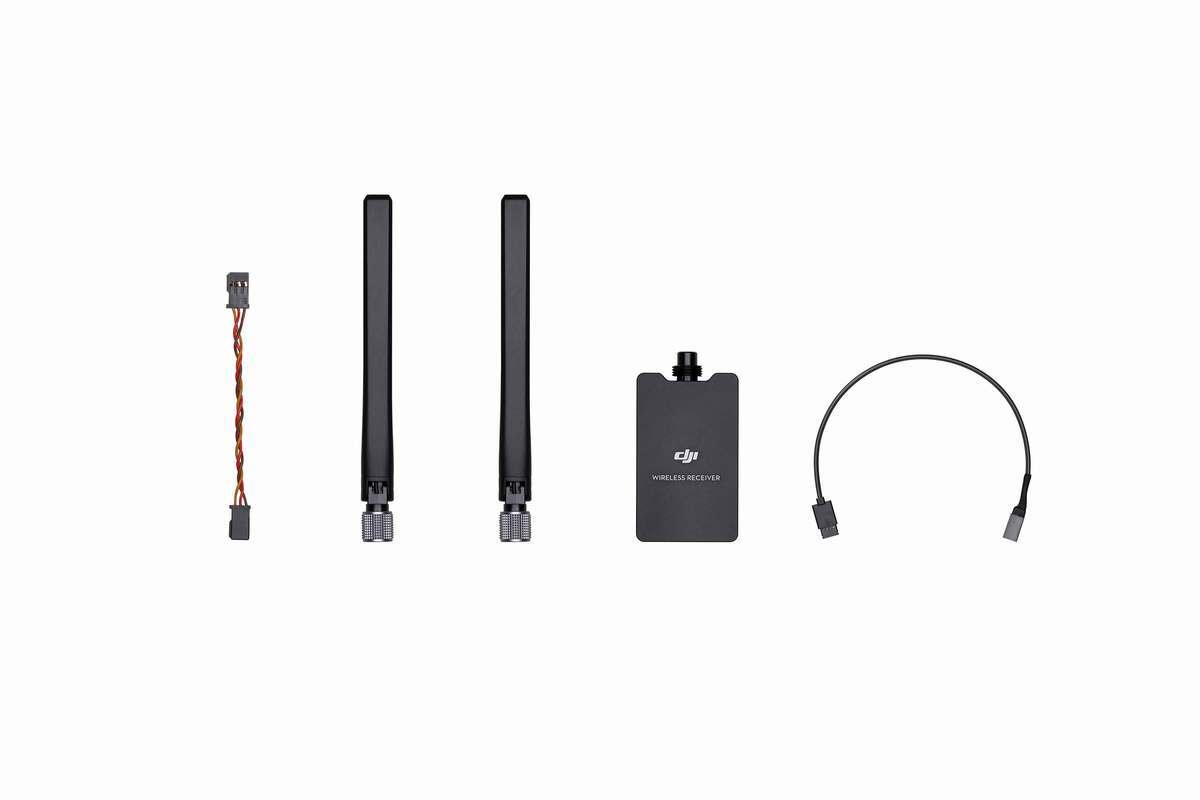

In The Box

• DJI Pro Wireless Receiver × 1
• Antenna × 2
• Ronin 2 UART to D-Bus Cable × 1
• S-Bus Cable × 1

Specifications

Weight: Approx. 60 g

Dimensions: 210×38×19 mm

Operating Temperature: -20 to 50°C (-4 to 122°F)

Operating Frequency: 2.4 GHz, 5.8 GHz

Equivalent Isotropically Radiated Power (EIRP):

2.4 GHz: <30 dbm (FCC), <20 dbm (CE), < 25 dbm (MIC), <20 dbm (SRRC)

5.8 GHz: <30 dbm (FCC), <14 dbm (CE), < 19 dbm (SRRC)

Input Voltage: 5-15 V

Compatibility

• Ronin 2
• Ronin-S
• DJI Force Pro
• DJI Master Wheels
