DJI Ronin-S Focus Motor Part 17 (DISCONTINUED) - Image 1

DJI Ronin-S Focus Motor Part 17 (DISCONTINUED) - Image 2

DJI Ronin-S Focus Motor Part 17 (DISCONTINUED)

DJI Ronin-S Focus Motor Part 17 (DISCONTINUED) - Image 4

DJI Ronin-S Focus Motor Part 17 (DISCONTINUED) - Image 5

DJI Ronin-S Focus Motor Part 17 (DISCONTINUED)

$259.00

Out of stock

Available on backorder

SKU DJIRONINS-17 Categories Ronin, Ronin-S

Overview

NO LONGER AVAILABLE. PLEASE DO NOT ORDER

<div class="temp-

Specs

-tr" style="margin: 0px;padding: 0px;border: 0px;font-size: 14px;vertical-align: baseline;background-image: initial;background-position: initial;background-size: initial;background-repeat: initial;background-attachment: initial;display: flex;, arial, sans-serif">

Overview

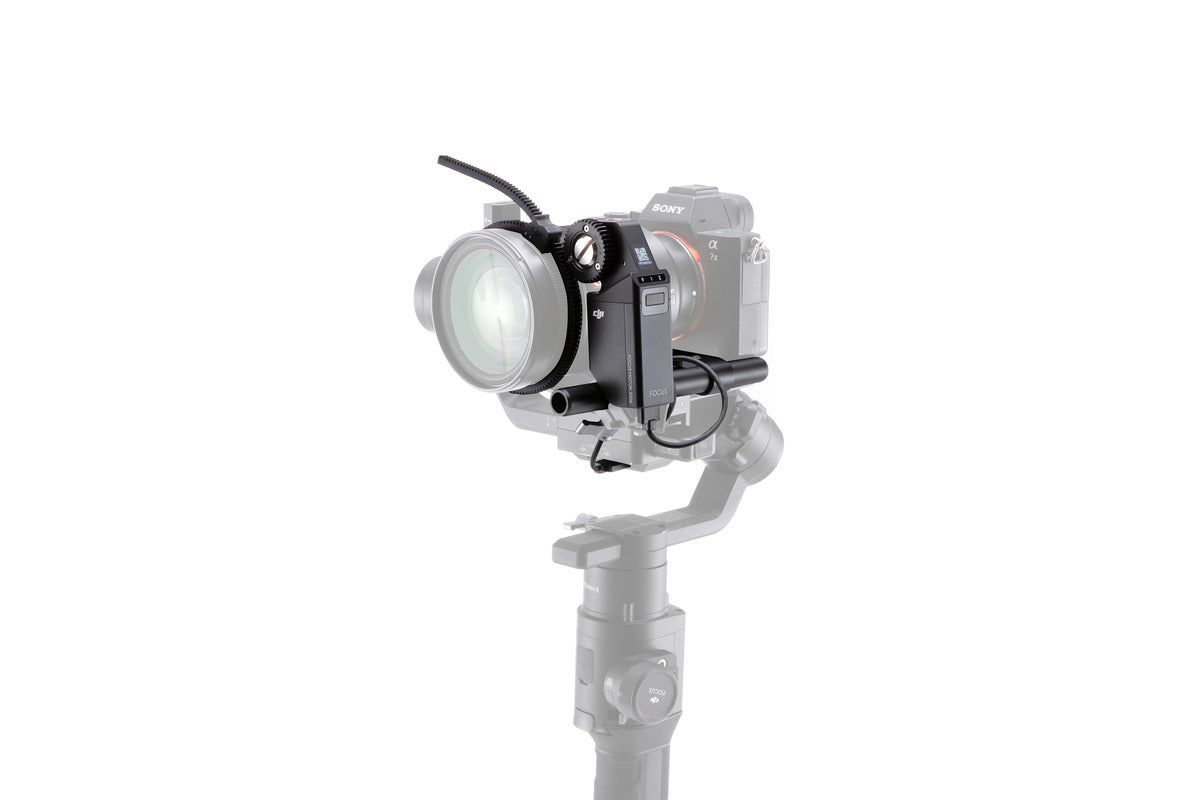

The Ronin-S Focus Motor is used with the Ronin-S Focus Wheel to control the focus, iris, and zoom.

Please click here to view the User Guide.

In the Box

Focus Motor × 1

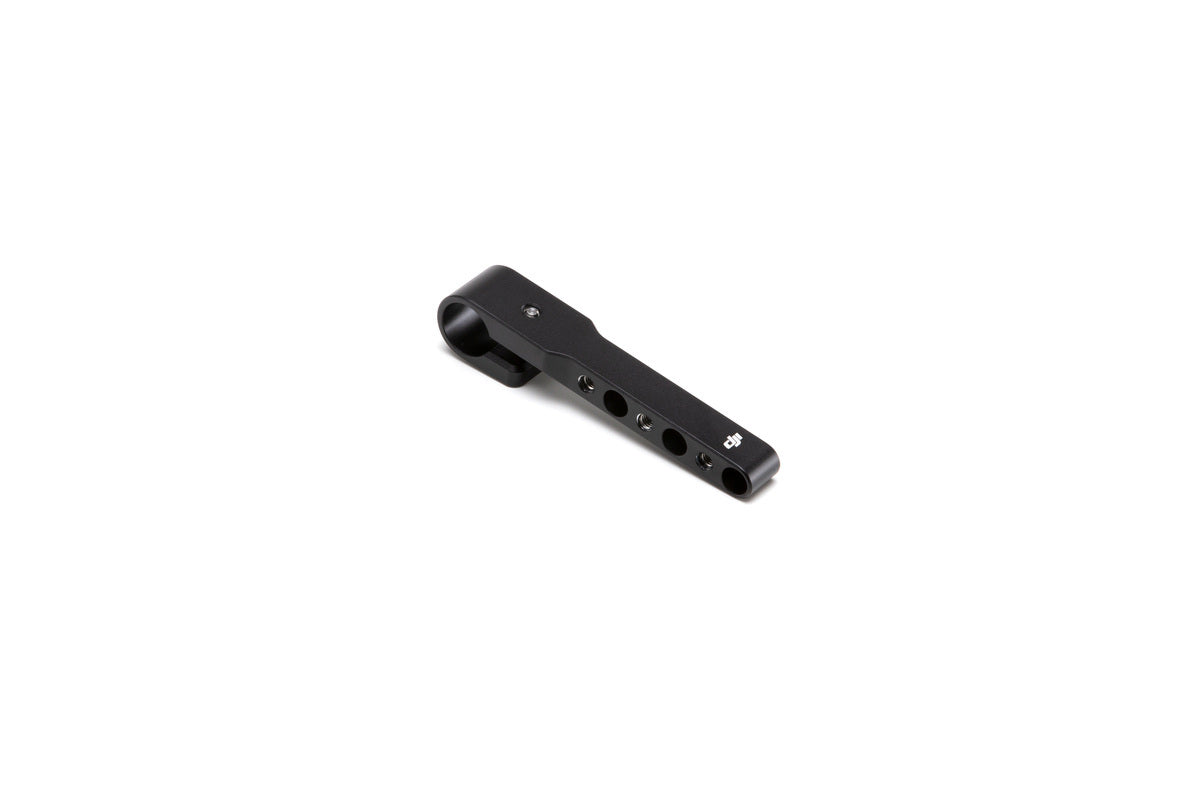

Rod Mount × 1

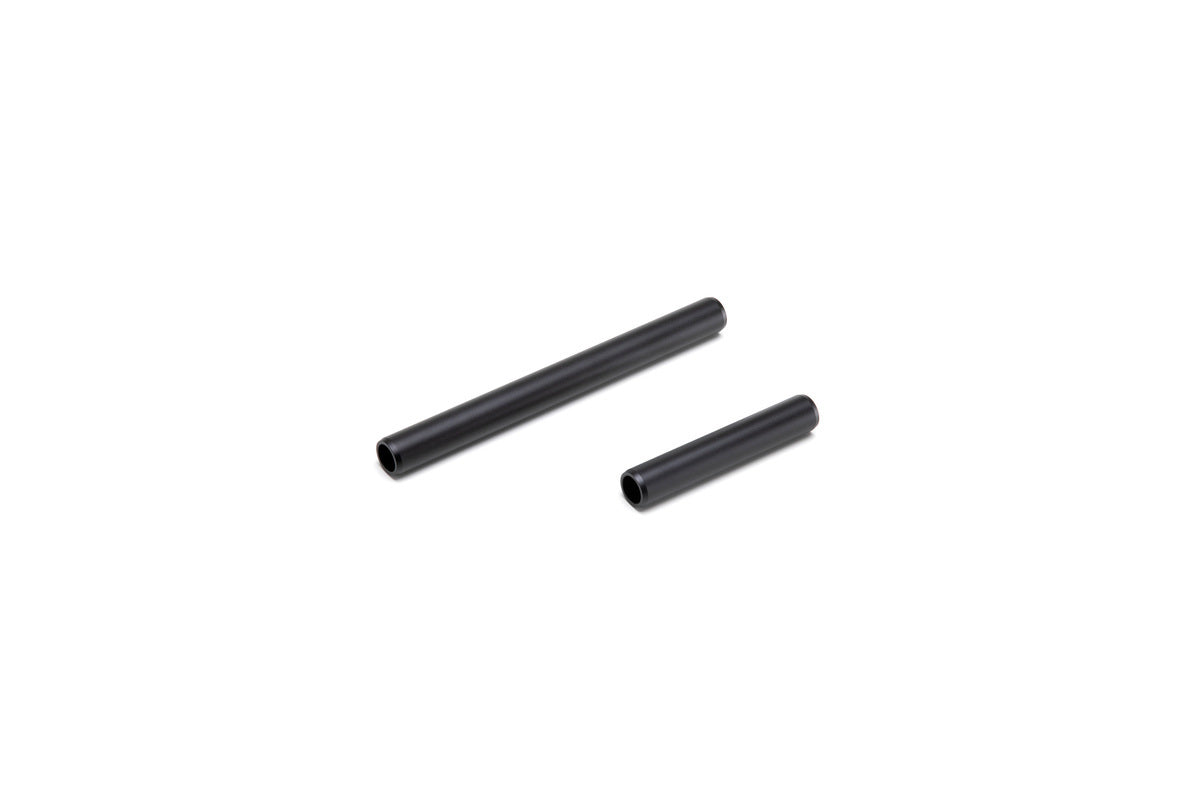

15 mm Rod × 2

Screw × 4

Focus Gear Strip × 2

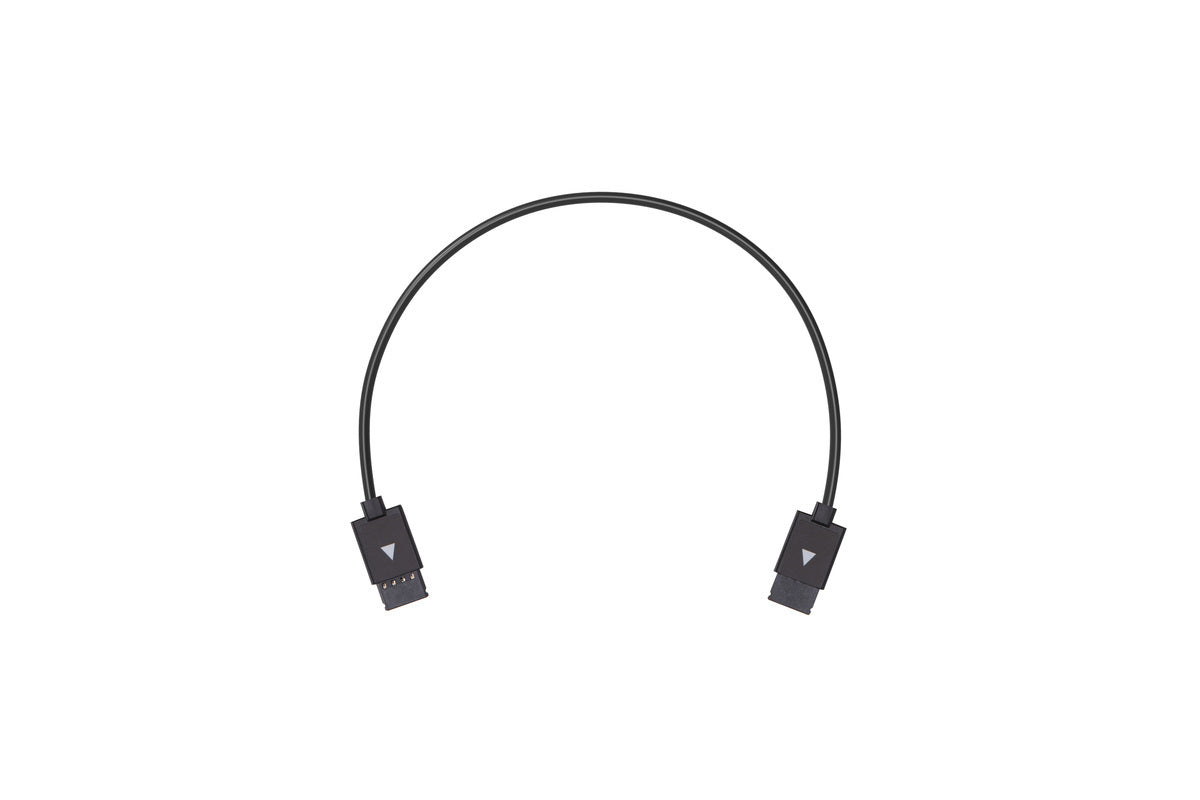

Power Cable × 1

Specifications

Focus Motor:

Weight: 198 g (power cable included)

Dimensions: 110 x 53 x 30 mm

Max. Torque: 0.5 Nm

Max. Speed: 210 RPM

Operating Current: Free current: 25 mA (12 V); Stall current: 0.5 A (12 V)

Operating Voltage: 6-17 V

Noise: 25 dB

Rod Clamp Inner Diameter: 15 mm

Gear: No. of teeth: 40; Module: 0.8

Operating Temperature: -20 to 55°C
