$472.00
Out of stock
Available on backorderDevice holder: tablets.
RAM ball size guide
The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.
| Size | Ball diameter | Holds up to | Best for |
|---|---|---|---|
| A | 9/16" (14 mm) | 0.45 kg | Small cameras, action cams, remotes |
| B | 1" (25 mm) | 0.9 kg | Phones, GPS units, small tablets. The most common size. |
| C | 1.5" (38 mm) | 1.8 kg | Tablets, small monitors, rugged devices |
| D | 2.25" (57 mm) | 2.7 kg | Large displays and laptops |
| E | 3.38" (86 mm) | 6.8 kg | Heavy monitors and equipment |
Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.
Overview

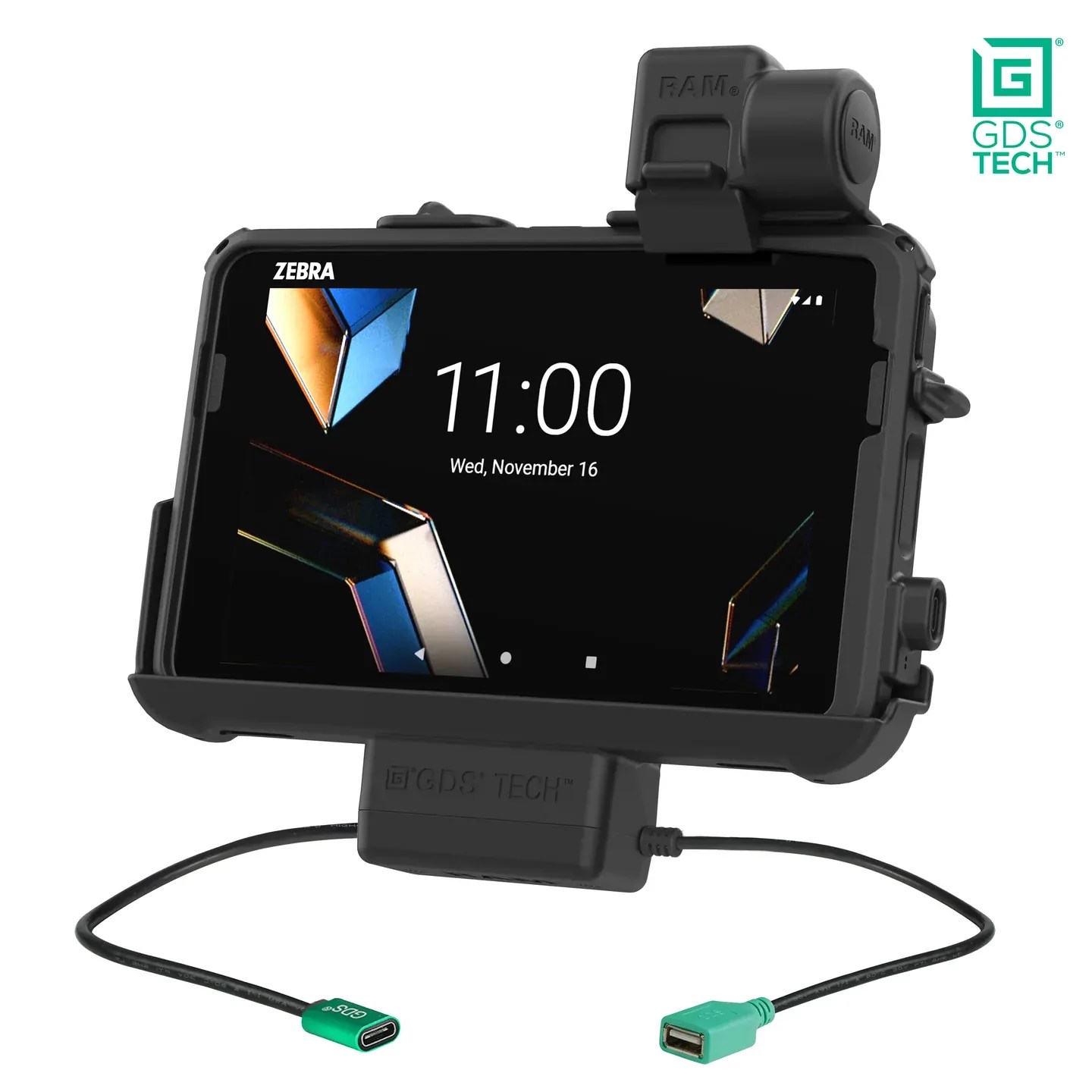

The GDS® Thin-Dock™ + Data for Zebra ET401 & ET4x 8" with IntelliSkin® (RAM-GDS-DOCK-ZE46PDU) delivers a low-profile, 2.44"-deep design reinforced with a durable metal plate, ideal for applications where space is limited. This vehicle dock is purpose-built for the Zebra ET401, ET40, and ET45 8" enterprise tablets when used with an IntelliSkin® protective sleeve, ensuring a reliable, long-lasting mounting and charging solution. Engineered for efficiency, the Thin-Dock™ keeps your tablet powered through pogo pin contacts while docked, with power supplied via the dock’s USB Type-C connector. Connect a mouse, keyboard, or printer using the peripheral USB-A connector. The design also maintains access to the tablet’s side scanning function, making it a strong fit for field service, warehousing, retail, transportation, and other data-capture environments. Because of its compact footprint, this dock does not support add-ons like the Zebra Expansion Back or PowerPack Battery. For mounting flexibility, the dock is compatible with both RAM® C and D size 4-hole AMPS pattern bases, ideal for pairing with a double socket arm to complete your vehicle or workstation setup. This dock also features integrated attachment points for the RAM® Vent-Temp™, a temperature control accessory, and the RAM® NFC Extender. Always Protected. Always Connected.®
Features
- Form-fit powered dock designed specifically for the Zebra ET401, ET40, and ET45 wrapped in an IntelliSkin®
- Slim-profile design at 2.44" depth with metal reinforcement plate
- Compatible with C and D size RAM® 4-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Compatible with RAM® Vent-Temp™ and NFC Extender
- Backed by a 3-year warranty
Hardware Included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nyloc Nuts
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nyloc Nuts
(2) Cable Clamps
Hole Pattern
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Output Voltage
5V - 20V @ 3A
Power Output
60W
Input Connector
USB Type-C
Input Cable Length
215mm
Output Connector
USB 2.0 Type A
Output Cable Length
215mm
Peripheral Output
500mA
Transfer Speed
12Mbps
Certifications
RoHS
WEEE
CE
UKCA
