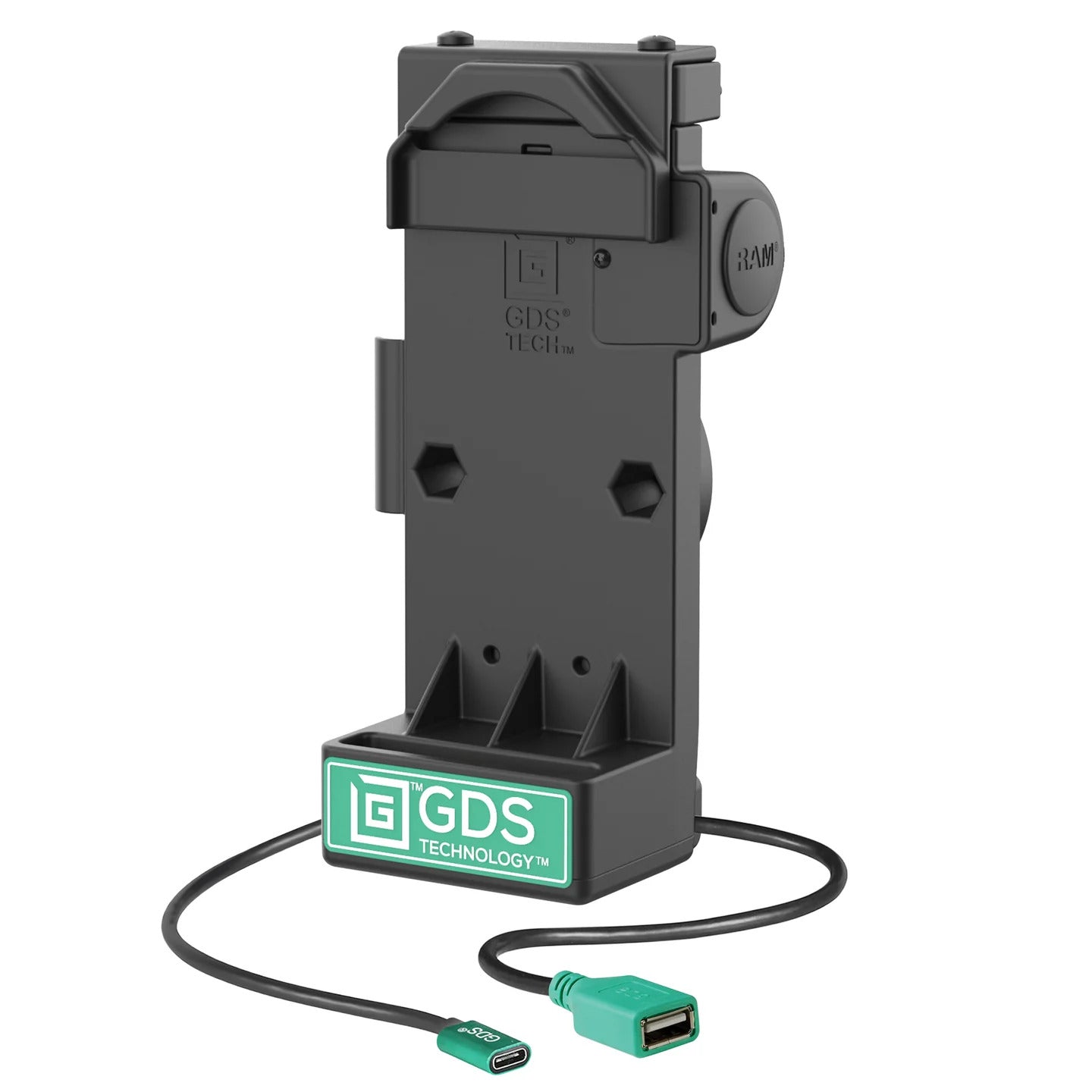

GDS Uni-Conn Non-Locking Spring Loaded Power + Single USB-A Dock

Features

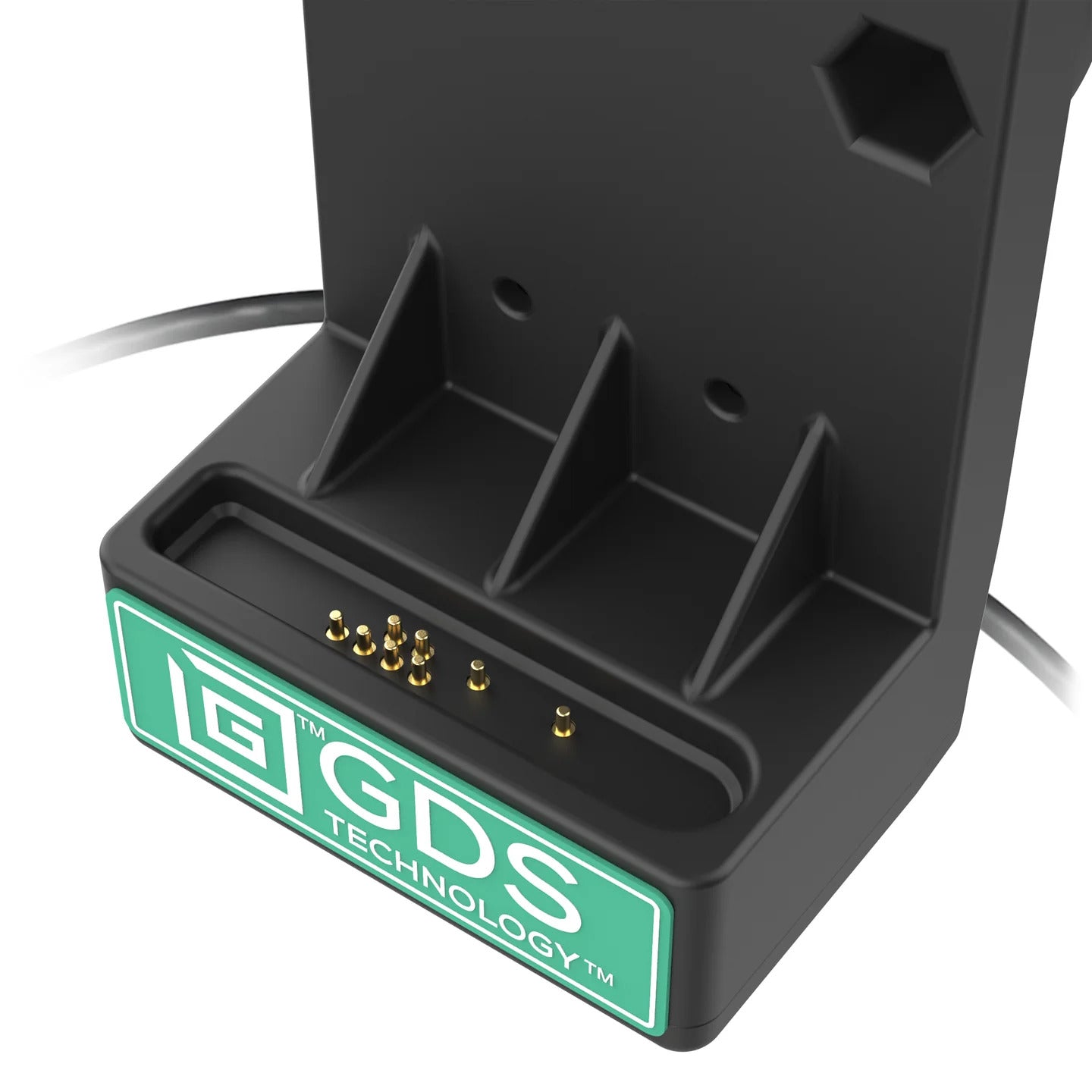

• Spring-loaded dock featuring GDS^® Technology^™ uses an integrated pogo pin connector to provide high-speed charging and connection to one additional USB peripheral
• Designed for devices wrapped in an IntelliSkin^® protective sleeve with GDS^® Uni-Conn^™ Adapter installed
• Power delivered via USB-C connector; connect a single input device via USB-A connector
• RAM^® Mounts Compatible^™
• Backed by a 3-year warranty

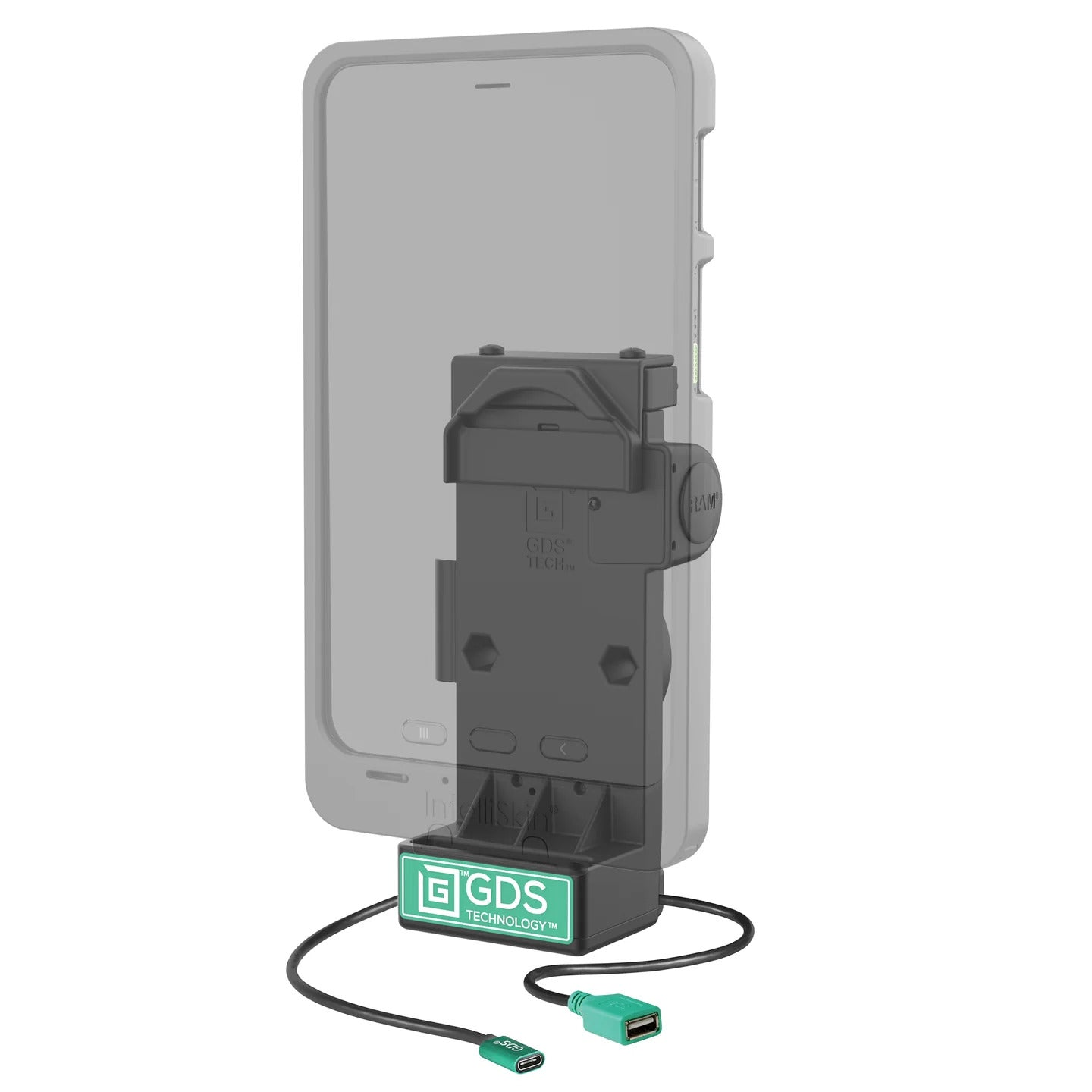

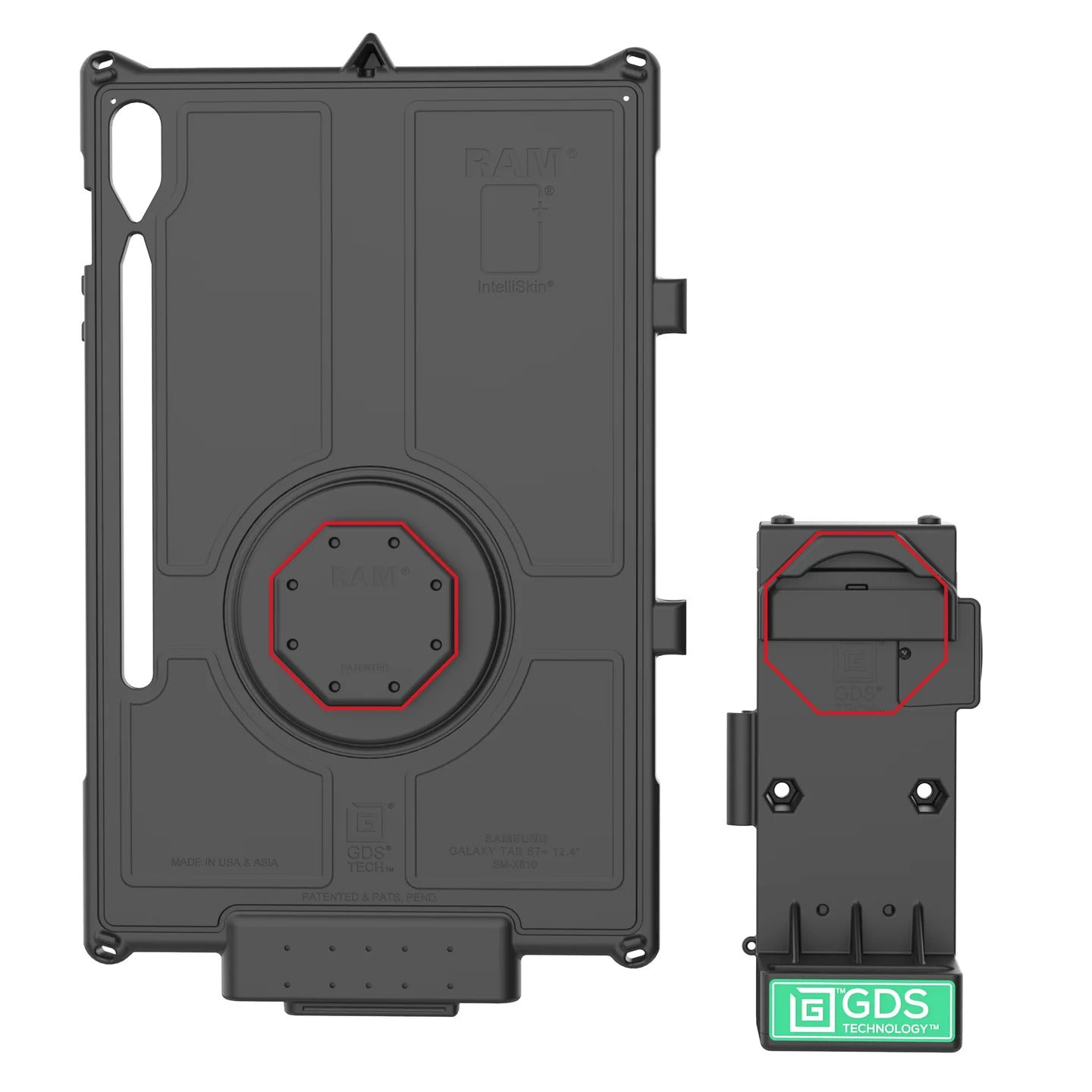

The GDS^® Uni-Conn^™ Spring Loaded Power + Single USB-A Dock (RAM-GDS-DOCK-V12-U1CPDU) is a revolutionary universal docking platform. This sliding dock solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. The docking station requires the GDS^® Uni-Conn^™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin^®-wrapped device. It features an easy docking and undocking process, simply place the GDS^® Uni-Conn^™ adapter on the back of your device into the octagon-shaped connection point on the top cup, pushing the the device upwards until you can place the bottom of the device on the D-shaped bottom cup connection point. Integrate up to one peripheral device into your solution with the USB-A female connector. The GDS^® Uni-conn^™ dock is backed by a 3-year warranty. Always Protected. Always Connected.^® One Dock to Connect Them All^™.

Hardware included

(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts

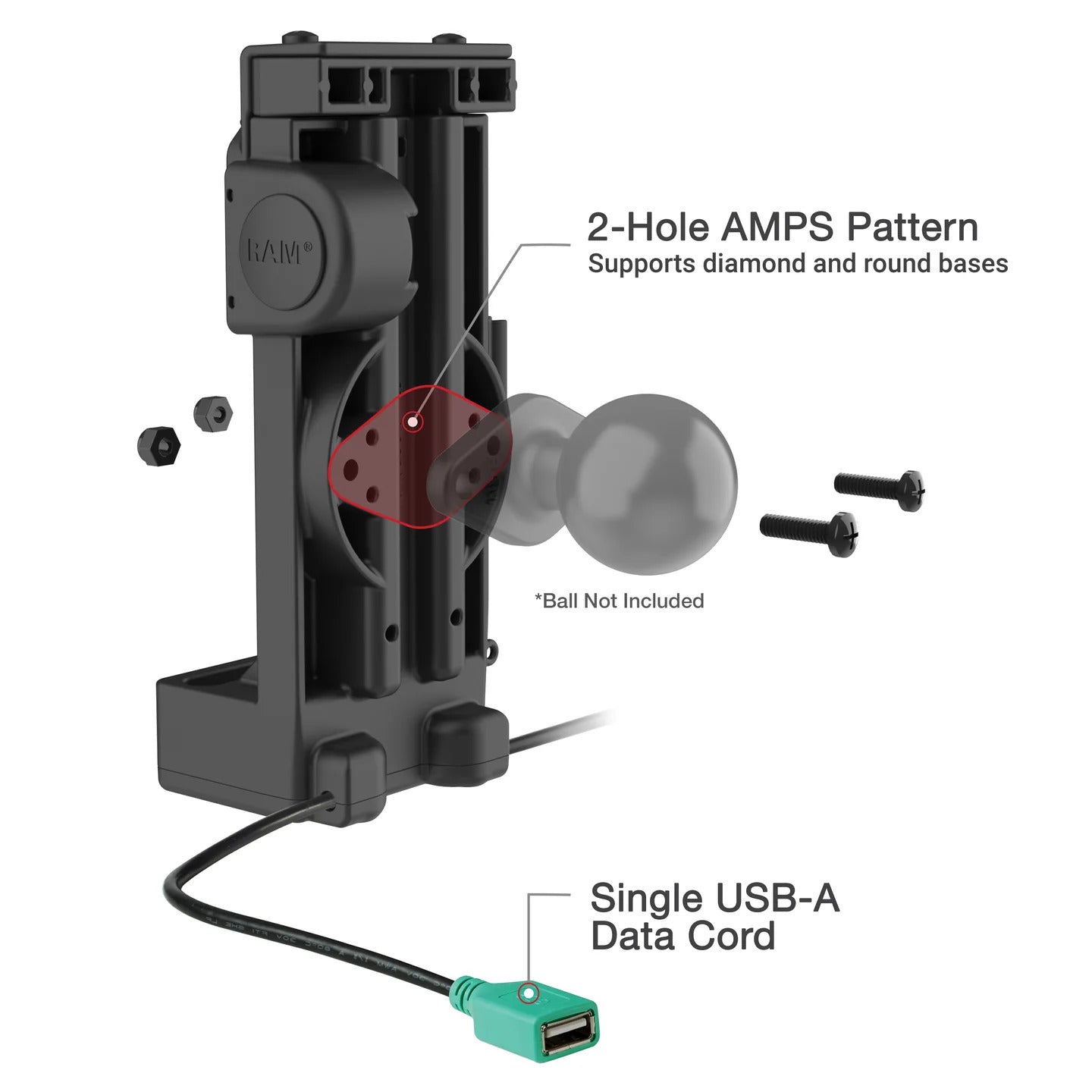

Hole pattern

2-Hole AMPS: 1.912"

Materials

High strength composite

Packaging type

Poly Bag

Input connector

USB Type-C
USB Type A for 1 Peripheral

Input cable length

1 Meter

Peripheral output

500mAh

Warranty

3 year warranty

Weight

0.62 lb

Additional Information

GDS^® Uni-Conn^™ Spring-Loaded docks are not recommended for high vibration or open cockpit applications, such as forklifts or semi-trucks. Consider the GDS^® Uni-Conn^™ Powered Dock for high vibration applications or the GDS^® Tough-Dock^™ for extreme applications.
