Overview

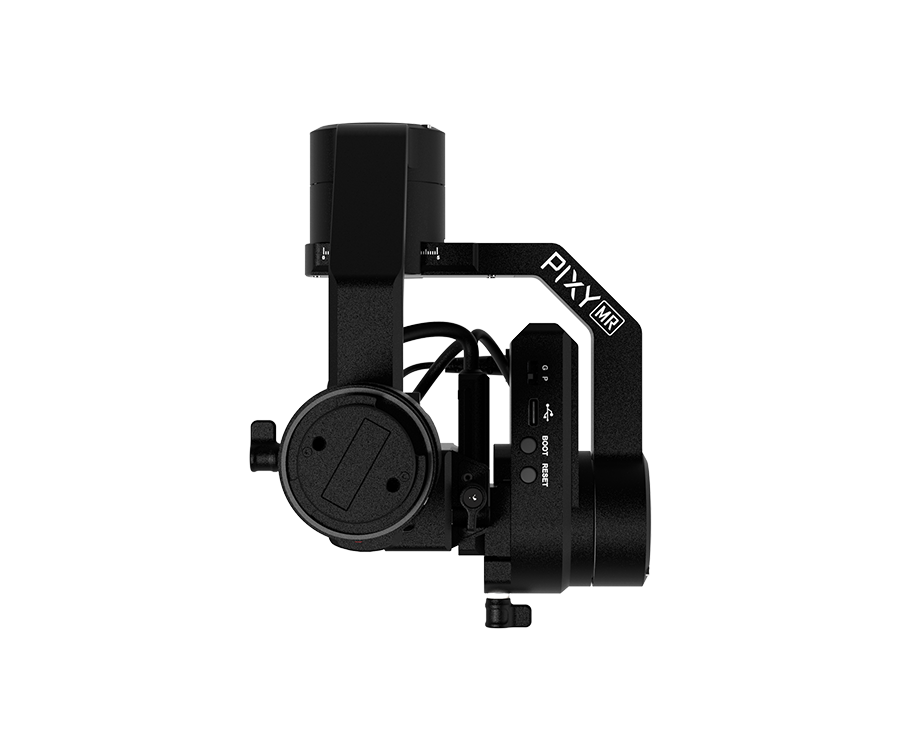

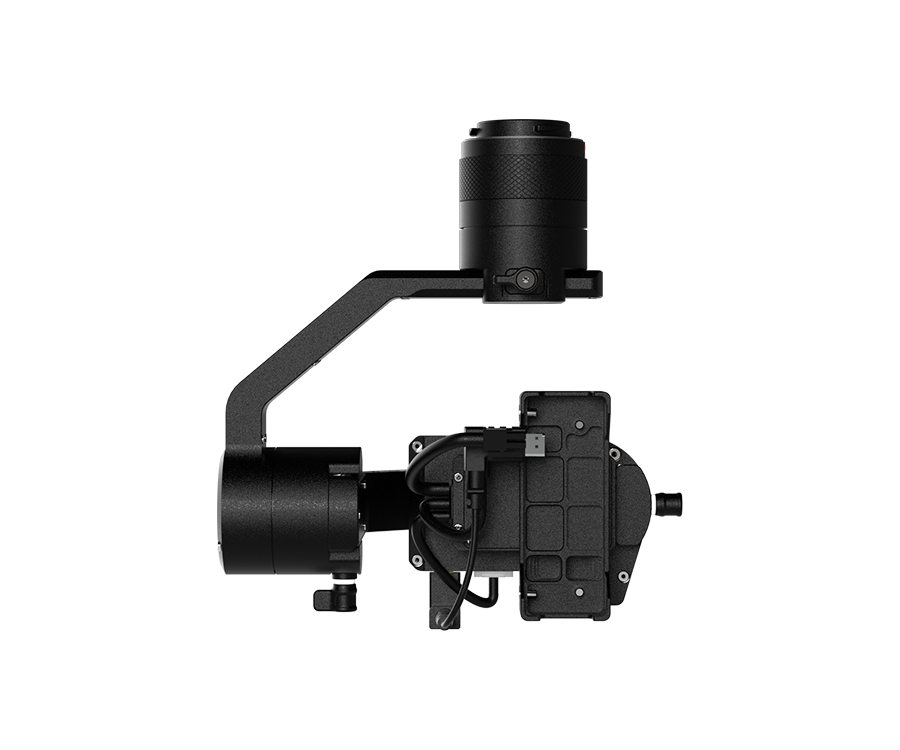

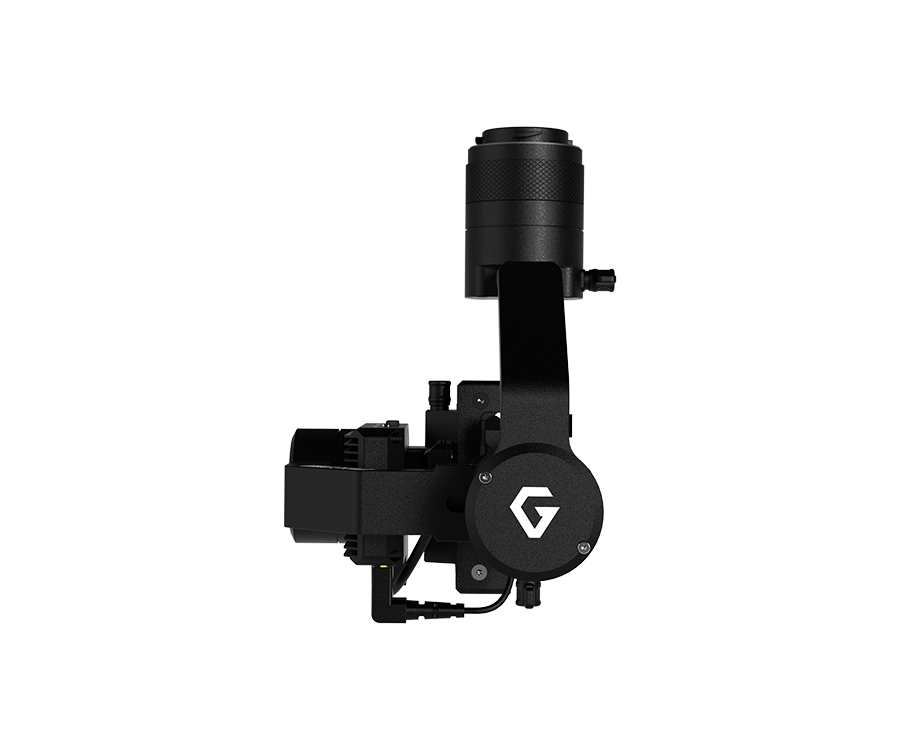

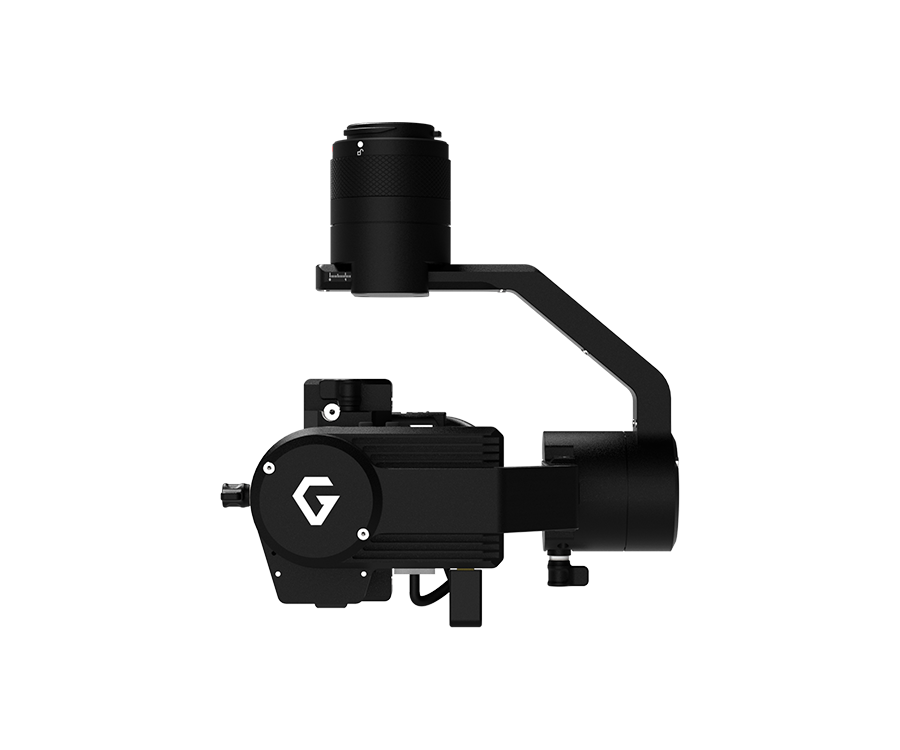

Pixy MR is perfectly built for Sony ILX - LR1, and compatible with M300/M350 drone platforms, offering quick and straightforward integration via DJI Skyport. Pixy MR is optimized in size, weight yet powerful (SWaP), recommended by UAV experts in multiple applications.
In the box:
| Pixy MR | 20G501-000 | x 1 |
| Skyport Cap | 25-0008Z-9-008 | x 1 |
| Right Angle Micro HDMI To Angle Micro HDMI Cable | 10T-04-010-0 | x 1 |
| USB-C Cable | EWC4USBC95 | x 1 |
| M3x6 Hexagon screw - DIN 7991 | 261-7991-1-023 | x 1 |
| Allen Key 2.0mm | 25-0010Z-2-003 | x 1 |
Specifications:
| Product Name | Pixy MR |
| System Type | 3-Axis Camera Stabilizer |
| Supported Drone Type | DJI M300/M350 RTK |
| Dimension (DxWxH) | 157mm x 108mm x 167mm |
| Weight | 520g/1.15lbs |
| Construction | Alluminum |
| Quick Release Type | Skyport V2.0 |
| Operation Power | 13.7V under skyport |
| Connection | DJI Skyport V2 USB 2.0 UART |
| Gimbal Mode | Lock (Free mode) Follow Mapping (Nadir) |
| Pan Range | ± 160° |
| Roll Range | ± 25° |
| Tilt Range | +135° to -45° |
