RAM Horizontal 6″ Swing Arm Mount for Fishfinders & Plotters
$163.00
Overview
Overview

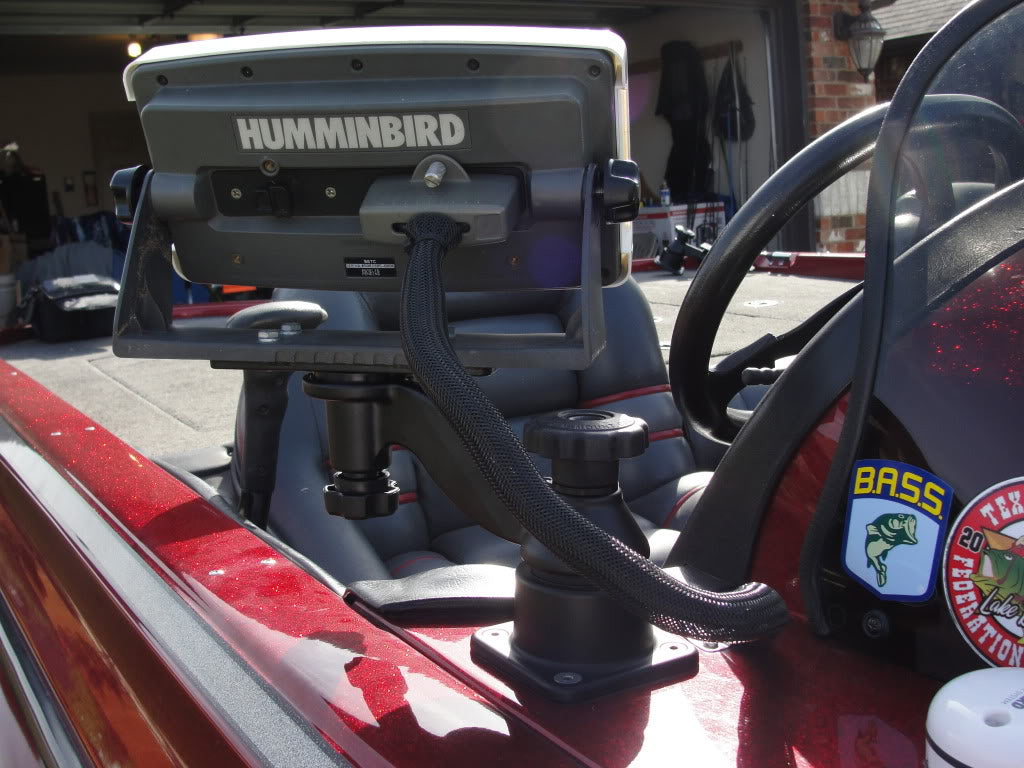

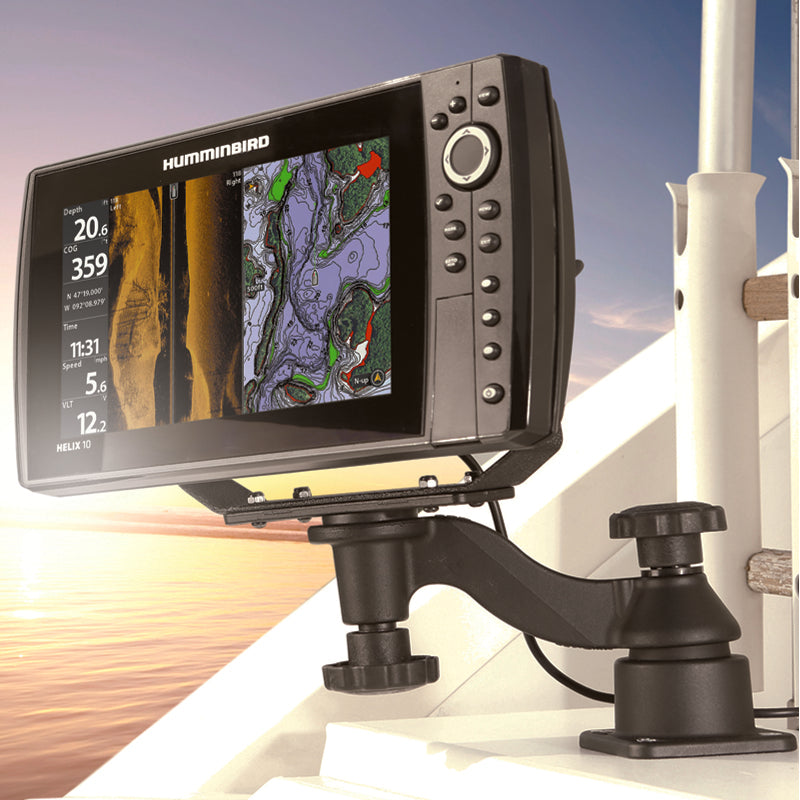

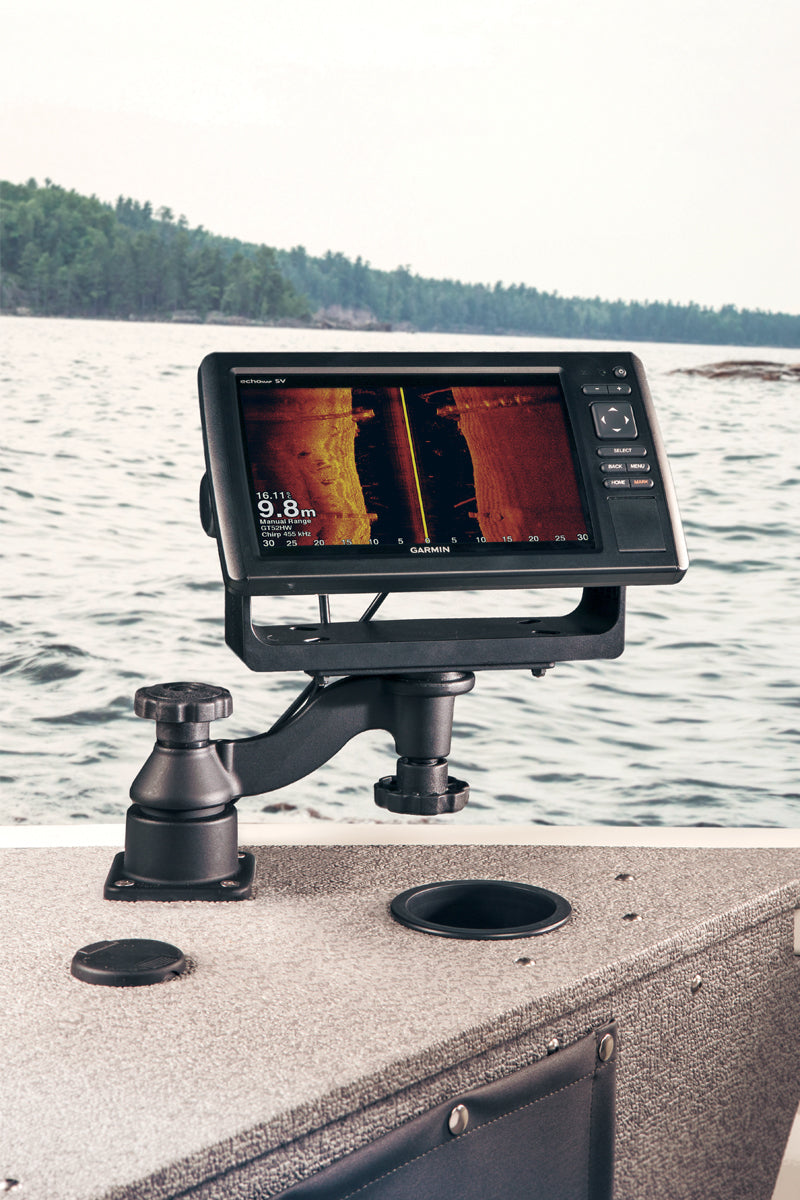

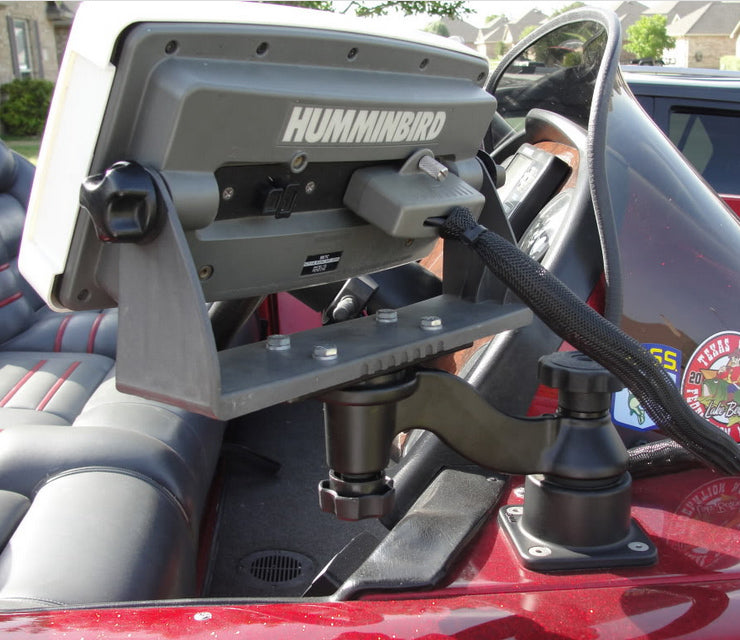

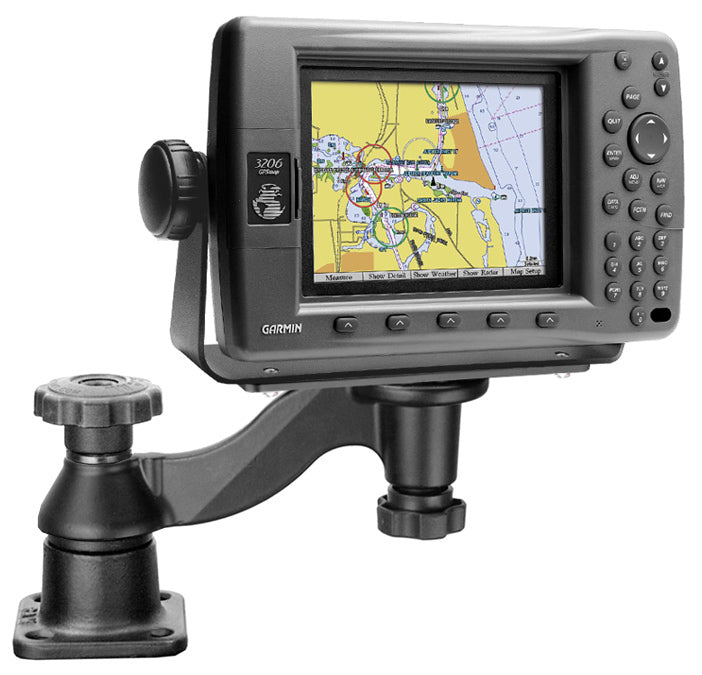

The RAM-109HU consists of a 6" long bent swing arm mounted on a horizontal surface base. At the device mounting end is a rectangular 6.25" x 2" plate. There are two pivoting points on the mount: one at the base of the swing arm and one at the center of the rectangular plate. Each pivoting point allows a complete 360-degree rotation.
Features
- Universal drill-down fish finder mounting solution features 6" swing arm for ideal device placement
- Two pivot points allow for complete 360-degree rotation
- Made of powder-coated steel and high-strength composite
- Backed by a lifetime warranty
Specs
Product Dimensions
Overall Height: 5.41"
Total Swing Arm Length: 6"
Hole Pattern
Top Plate: See Drawing
Bottom Plate: 2.5" x 2.5"
Plate Size
Top Plate: 6.25" x 2"
Bottom Plate: 3.47" x 3.47"
Weight Capacity
8 lbs
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Weight
2.21 lb
Additional Information
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
