RAM Ball Adapter with AMPS Plate – C Size

OVERVIEW

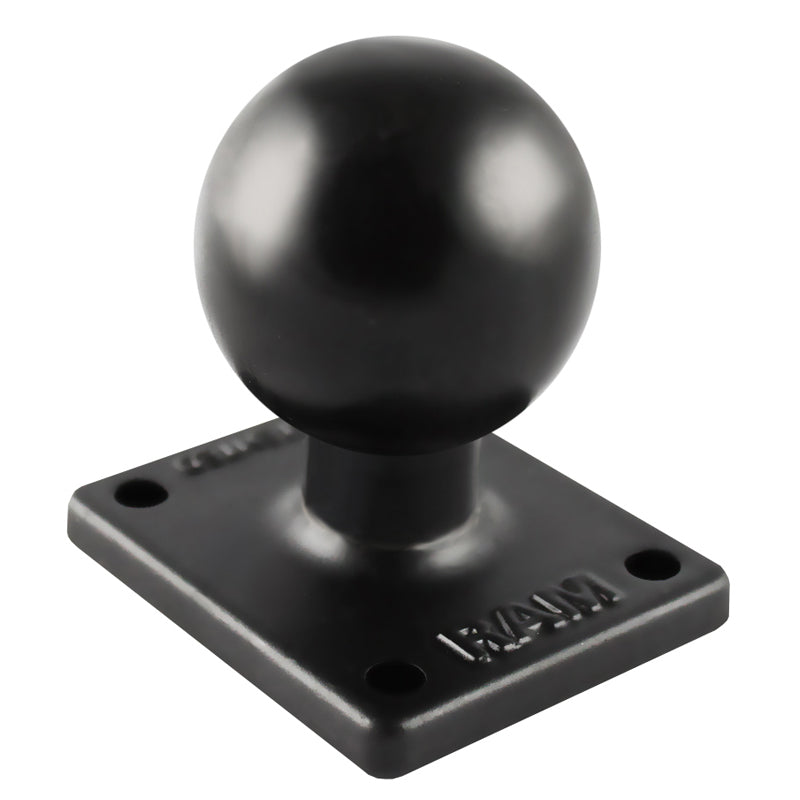

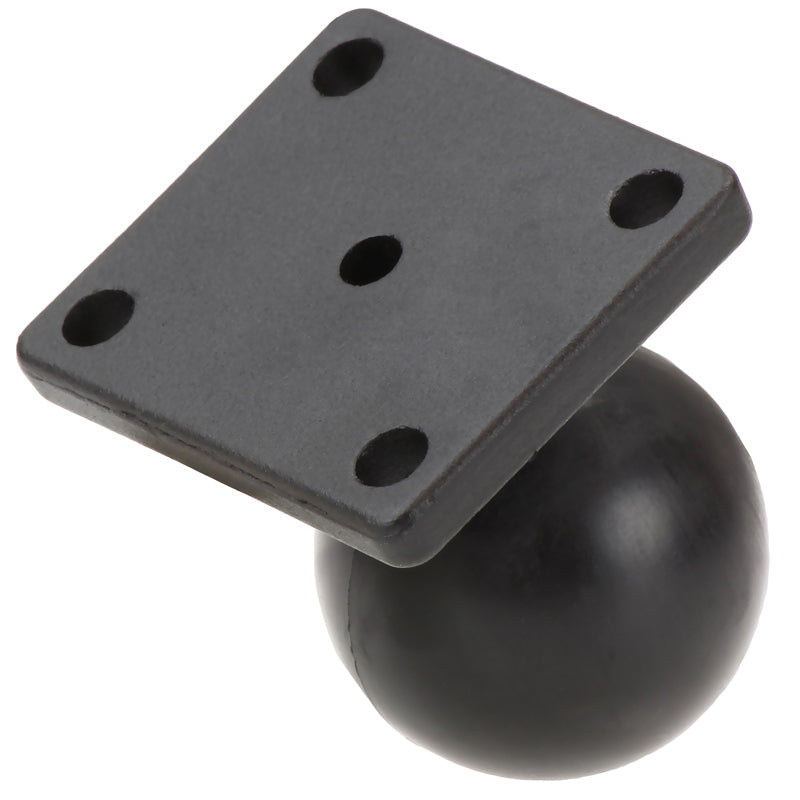

The RAM-347U consists of a 1.5" diameter rubber ball connected at right angles to a 2" x 1.7" rectangle base. The base has four pre-drilled holes at each corner, making the universal AMPs hole pattern.

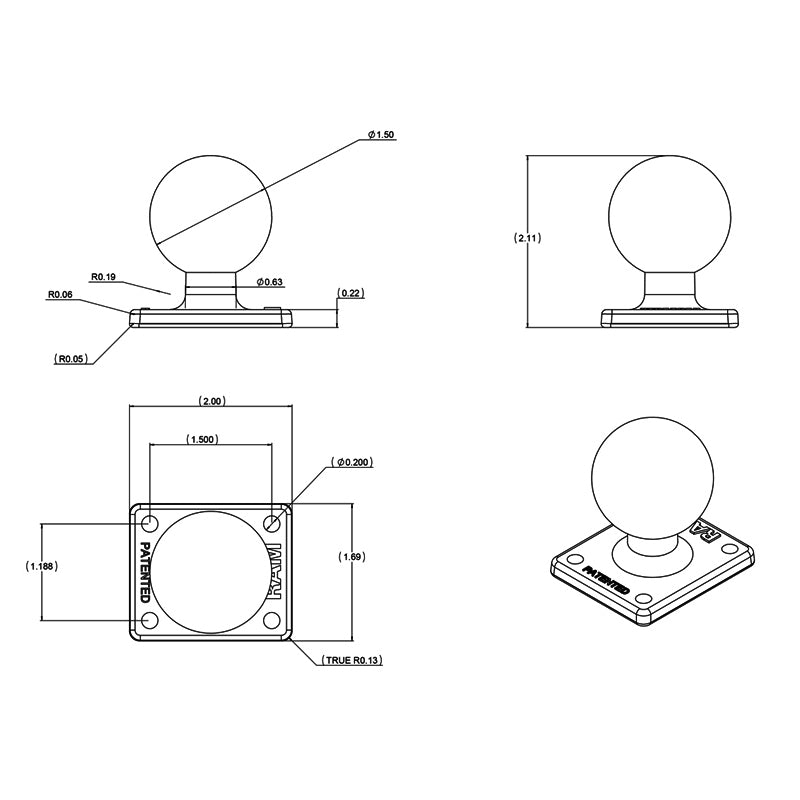

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

PLATE SIZE

1.69" x 2"

BALL/SOCKET SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

WEIGHT

0.2 lbs
