RAM Marine Electronics Mount – D Size Medium

FEATURES

• Complete flat surface, drill-down mounting solution with medium length D size socket arm compatible with 9"-12" fishfinder gimbal brackets
• RAM® Mounts ball and socket technology allows for near-infinite adjustability
• Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
• Backed by a lifetime warranty

OVERVIEW

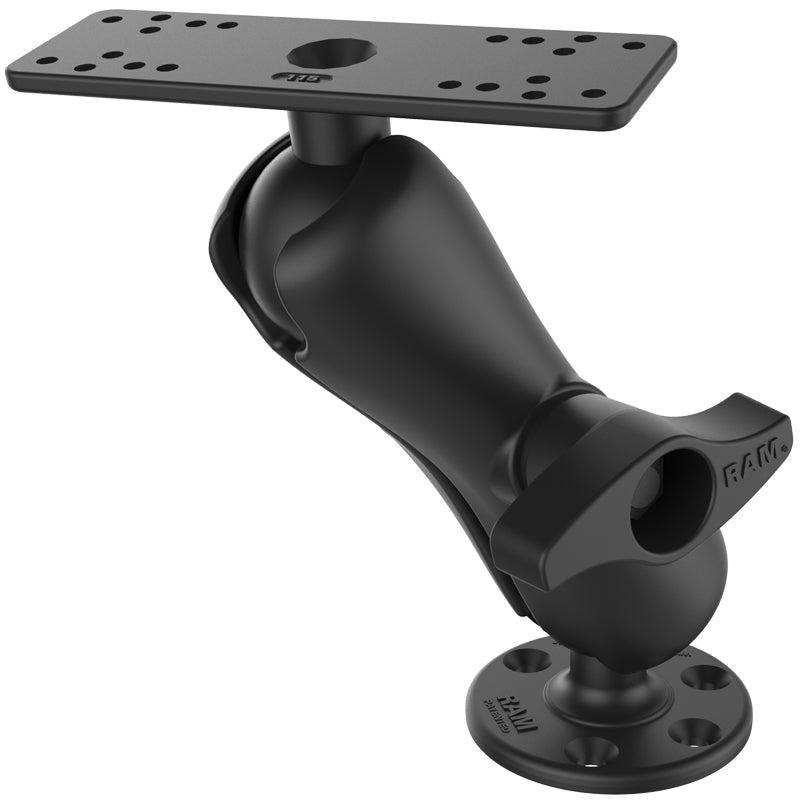

M-D-115 consists of a base with a 2.25” diameter D size ball, a standard arm and a 6.25” x 2” marine electronic plate with a D size ball for supporting larger devices. This marine electronic plate contains different combinations of pre-drilled holes and is a direct fit for 9”-12” fishfinder gimbal brackets. Supports devices such as the Lowrance HDS-9 Gen2 Touch, Garmin GPSMAP 7407 and more.

PRODUCT DIMENSIONS

Overall Height: 10.7"

SOCKET-TO-SOCKET LENGTH

6.88"

HOLE PATTERN

See Drawings

PLATE SIZE

Top Plate: 6.25" x 2"
Bottom Plate: 3.68" Diameter

BALL SIZE

D Size (2.25")

WEIGHT CAPACITY

Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs

MATERIALS

Marine-grade aluminum

ADDITIONAL INFORMATION

• The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

COMPATIBILITY

Click HERE and scroll down to 'COMPATIBILITY' to view compatible devices
