RAM Powered Dock for Panasonic Toughbook FZ-N1 & FZ-F1
$225.00
In stock
Device holder: handheld PC.
RAM ball size guide
The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.
| Size | Ball diameter | Holds up to | Best for |
|---|---|---|---|
| A | 9/16" (14 mm) | 0.45 kg | Small cameras, action cams, remotes |
| B | 1" (25 mm) | 0.9 kg | Phones, GPS units, small tablets. The most common size. |
| C | 1.5" (38 mm) | 1.8 kg | Tablets, small monitors, rugged devices |
| D | 2.25" (57 mm) | 2.7 kg | Large displays and laptops |
| E | 3.38" (86 mm) | 6.8 kg | Heavy monitors and equipment |
Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.

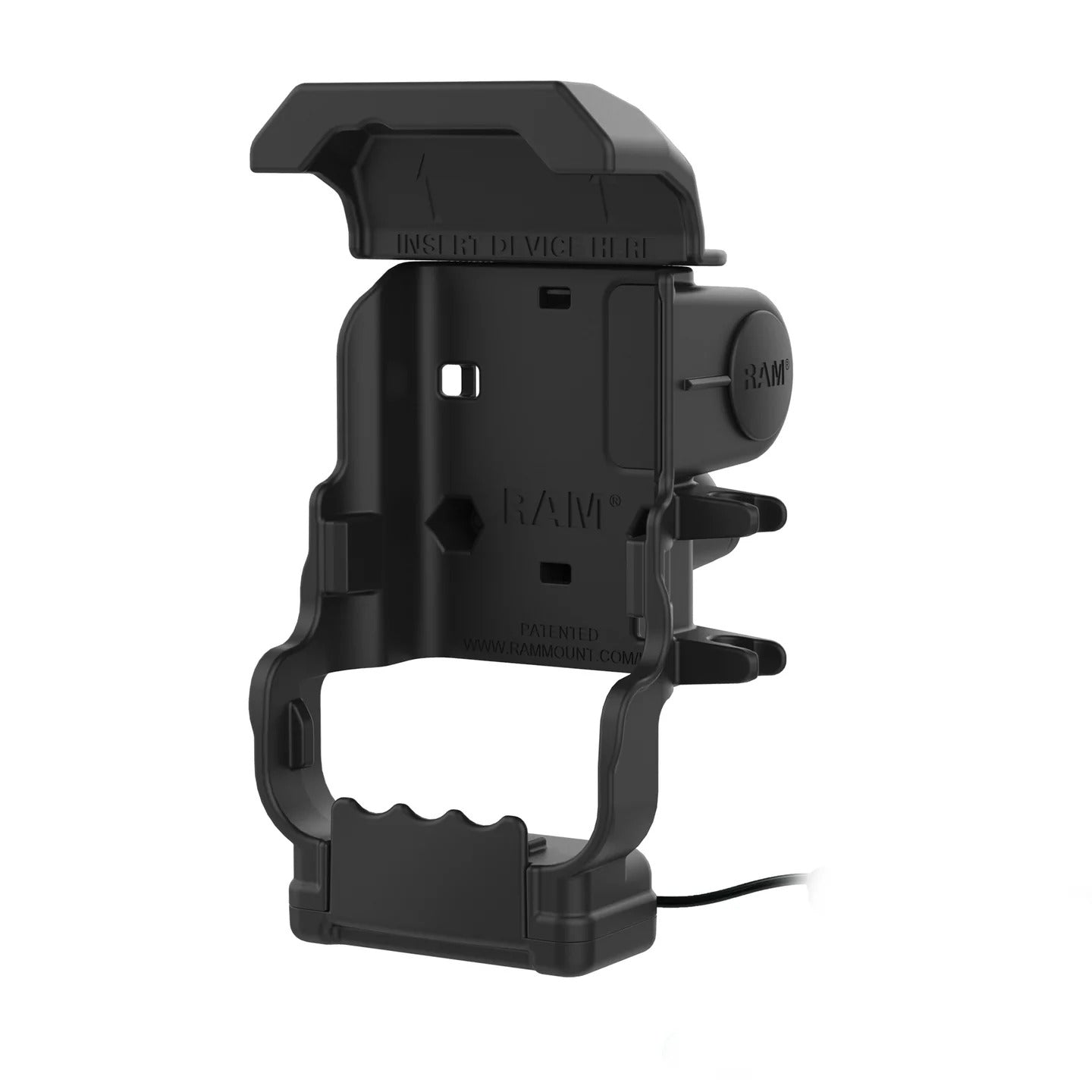

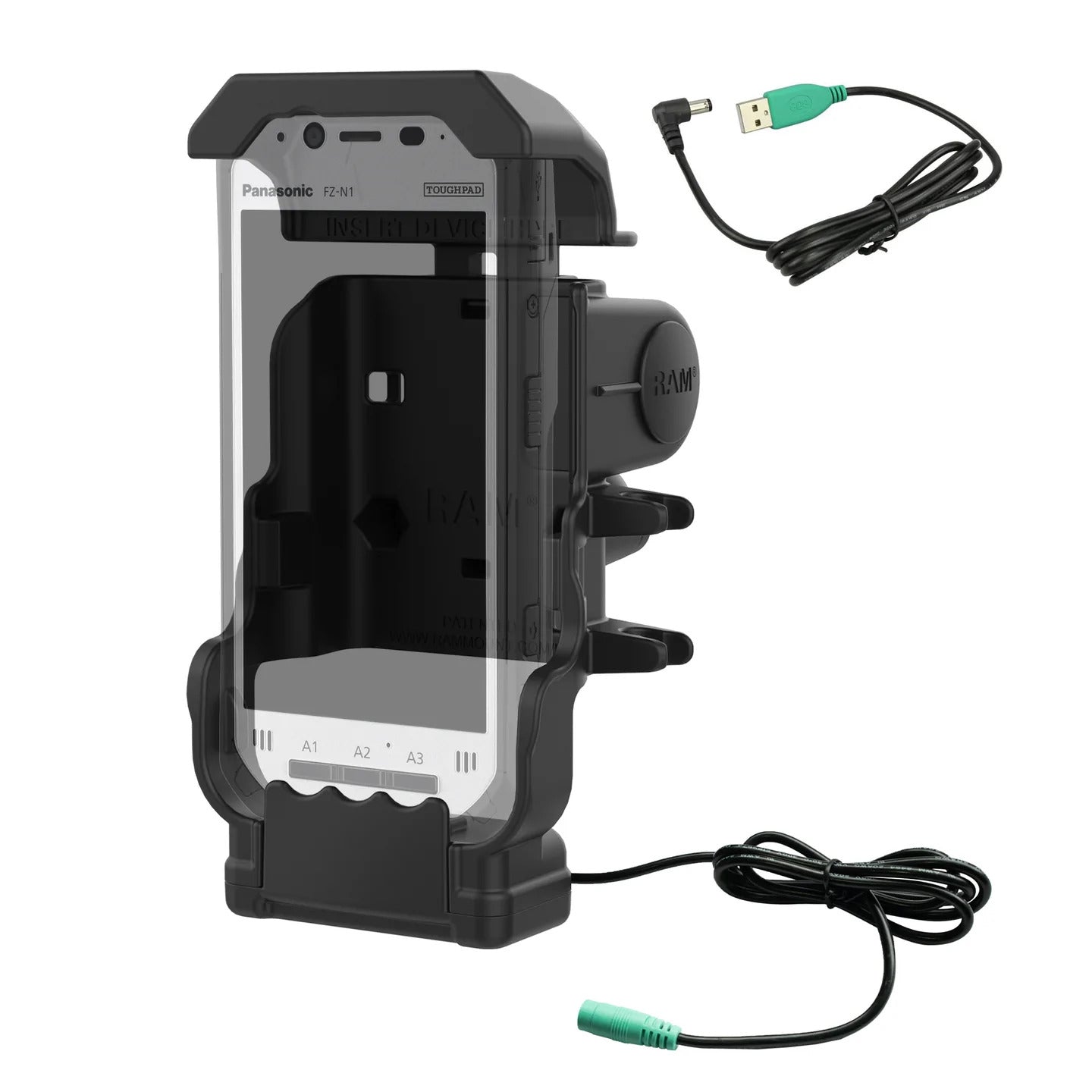

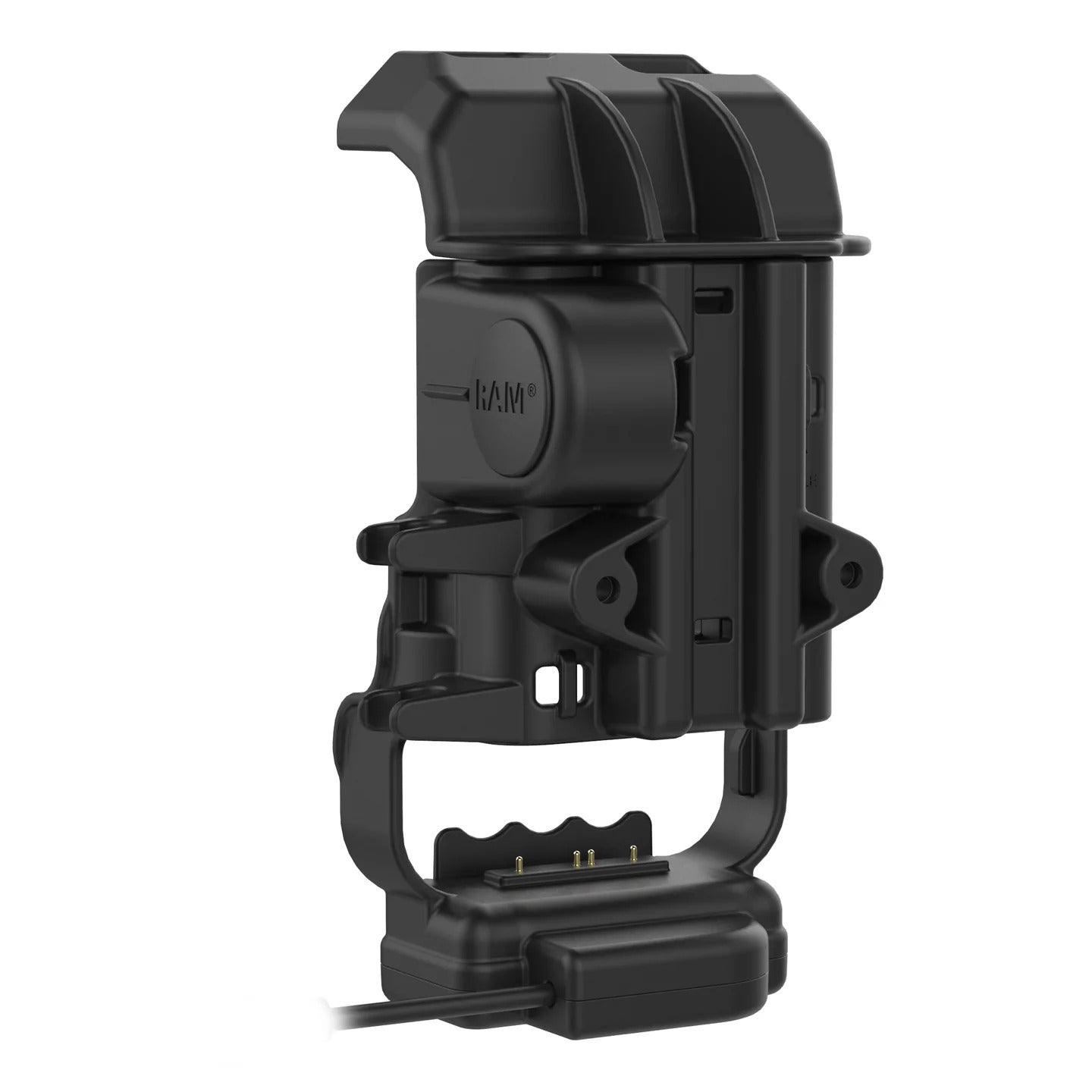

Secure and charge the Panasonic Toughbook® FZ-N1, or FZ-F1, with this RAM® powered cradle featuring an integrated stylus holder. This powered cradle allows for one-handed docking and removal of device and works with Panasonic hand straps, regular and extended batteries, and leaves all buttons, microphones, speakers, and the headphone jack exposed. For attaching to a wide range of RAM® arms and mounting accessories, the cradle is RAM® Mounts Compatible™ with RAM® B and C size diamond ball bases. For faster charging requirements use a Panasonic factory charger.
Specs
Features
- Form-fit cradle designed specifically for the Panasonic Toughpad FZ-N1 and FZ-F1 with one-handed docking and removal capabilities
- Compatible with Panasonic handstrap, Passive Stylus, Active Stylus and extended battery pack

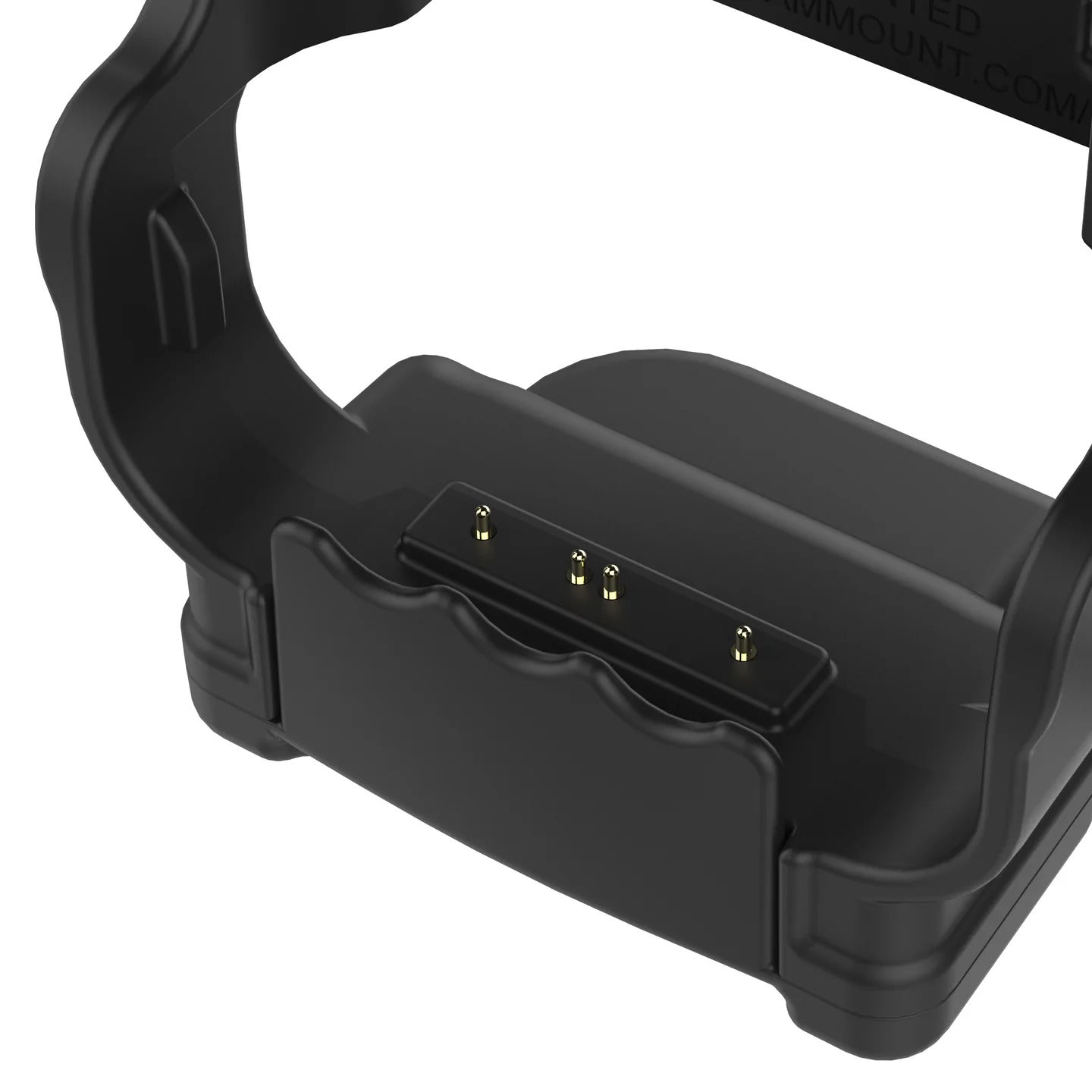

- Integrated pogo pin contacts provide charging power to the device; DC power cable for power
- Compatible with B and C size RAM® diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Backed by a 3-year warranty
Specifications

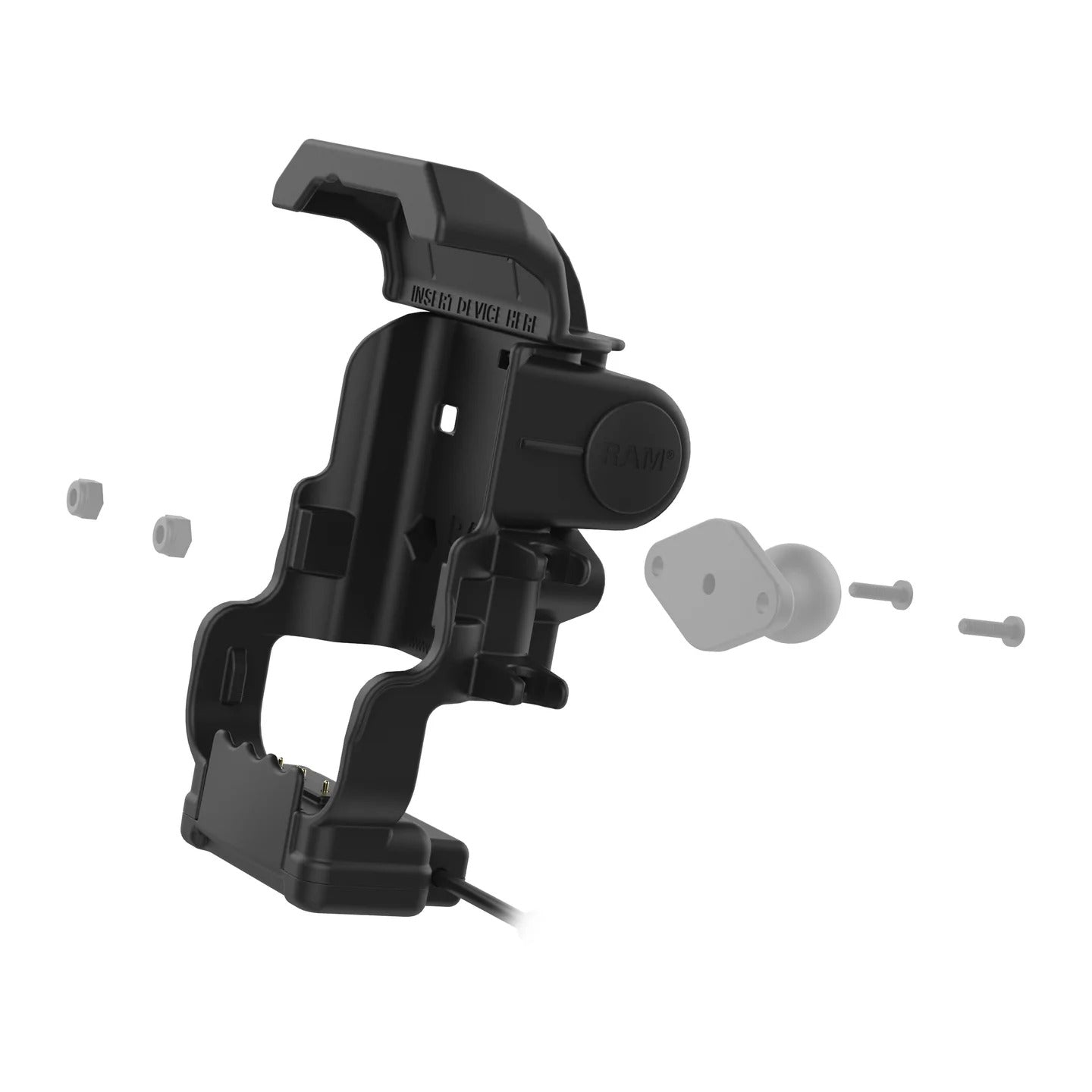

| Hardware Included | (2) #8-32 x 5/8" Machine Screws (2) #8-32 Nylock Nuts Genuine USB Type-A to DC Cable |
| Hole Pattern | 2-Hole AMPS: 1.912" |
| Materials | High strength composite |
| Packaging Type | Poly Bag |
| Input Connector | DC power jack |
| Input Cable Length | 1 Meter |
| Weight | 0.56 lb |
| Additional Information | For faster charging requirements use a Panasonic factory charger. Chargers not included. See "Complete Your Solution" tab to view compatible charging accessories. |
