RAM Tab-Tite Holder for 10.1″ – 10.5″ Tablets with or without Case
$69.00
In stock
Device holder: tablets 140–177 mm wide.
RAM ball size guide
The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.
| Size | Ball diameter | Holds up to | Best for |
|---|---|---|---|
| A | 9/16" (14 mm) | 0.45 kg | Small cameras, action cams, remotes |
| B | 1" (25 mm) | 0.9 kg | Phones, GPS units, small tablets. The most common size. |
| C | 1.5" (38 mm) | 1.8 kg | Tablets, small monitors, rugged devices |
| D | 2.25" (57 mm) | 2.7 kg | Large displays and laptops |
| E | 3.38" (86 mm) | 6.8 kg | Heavy monitors and equipment |
Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.

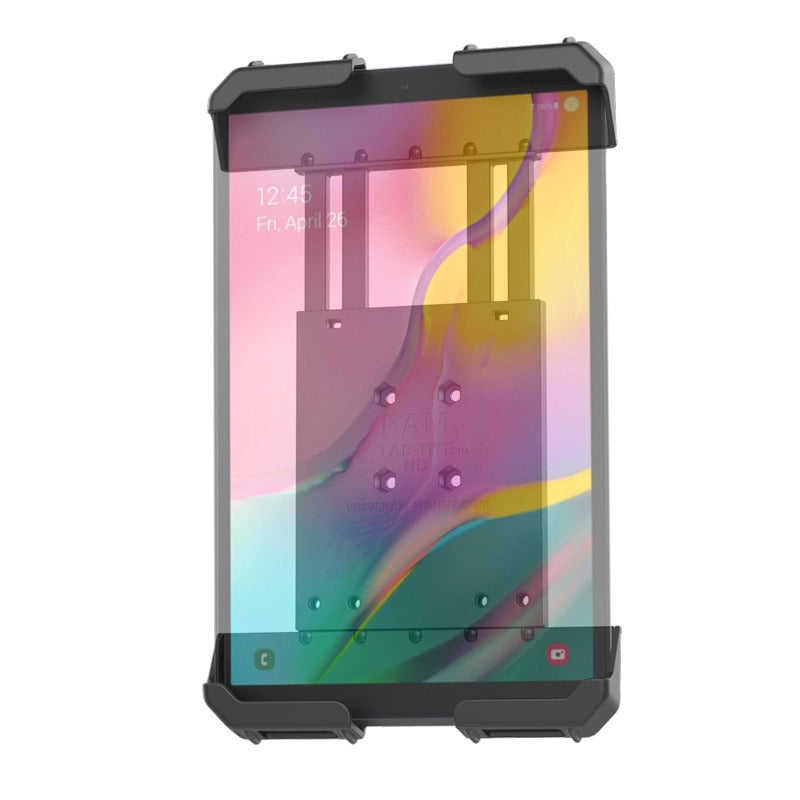

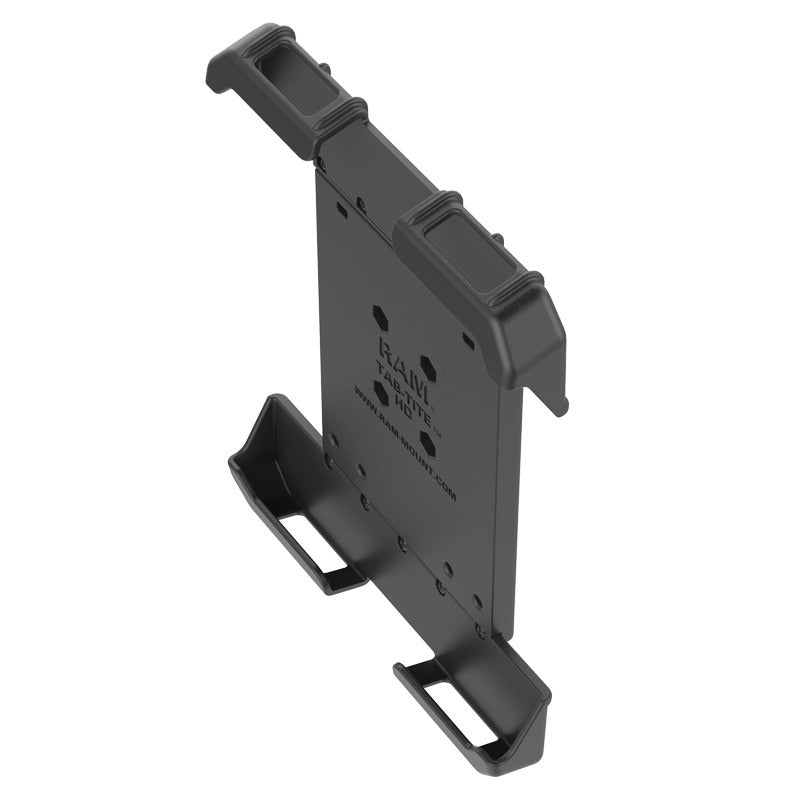

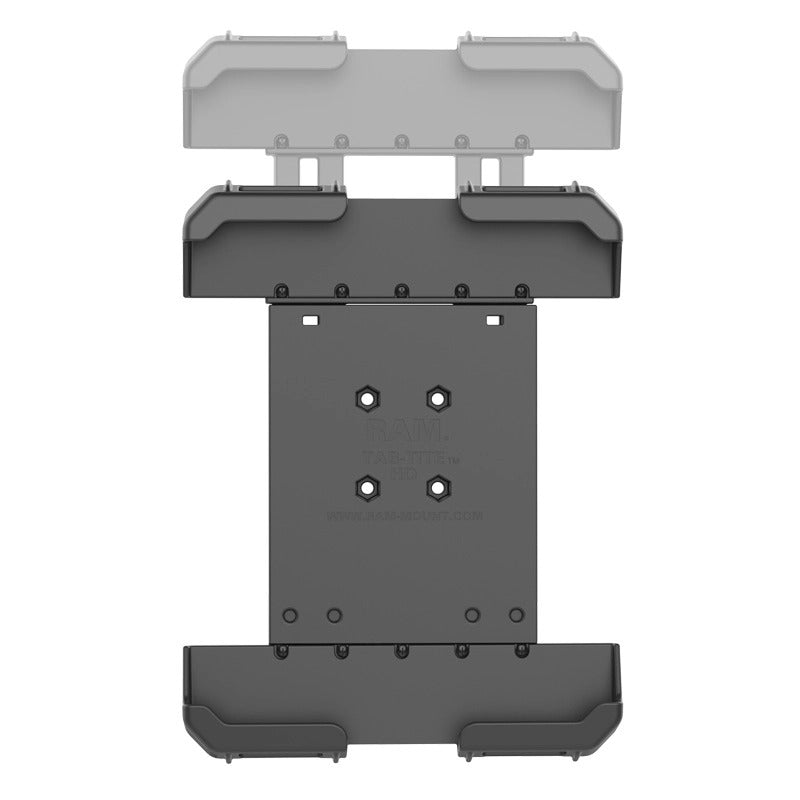

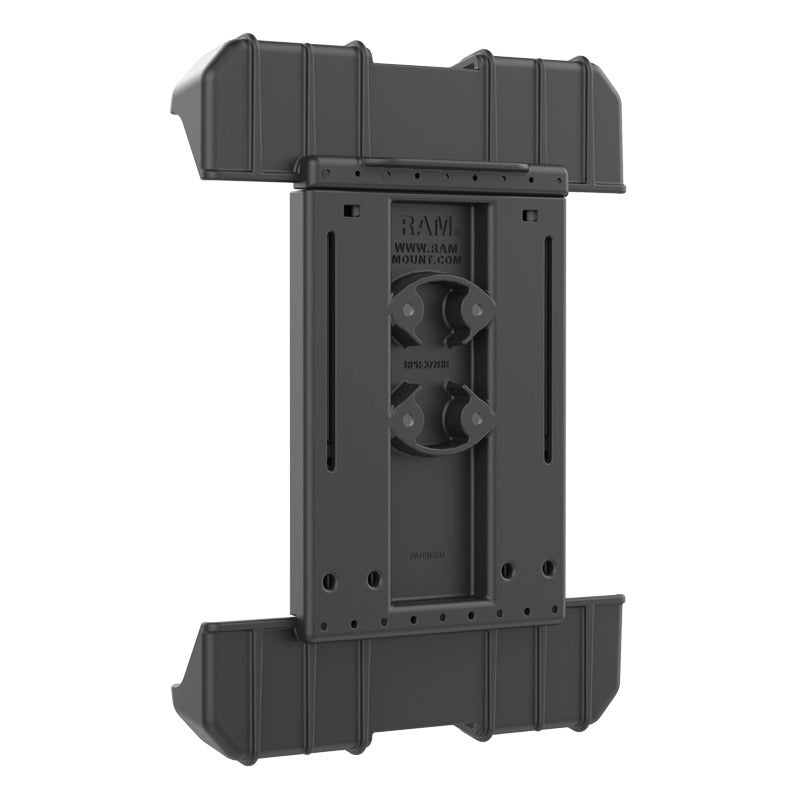

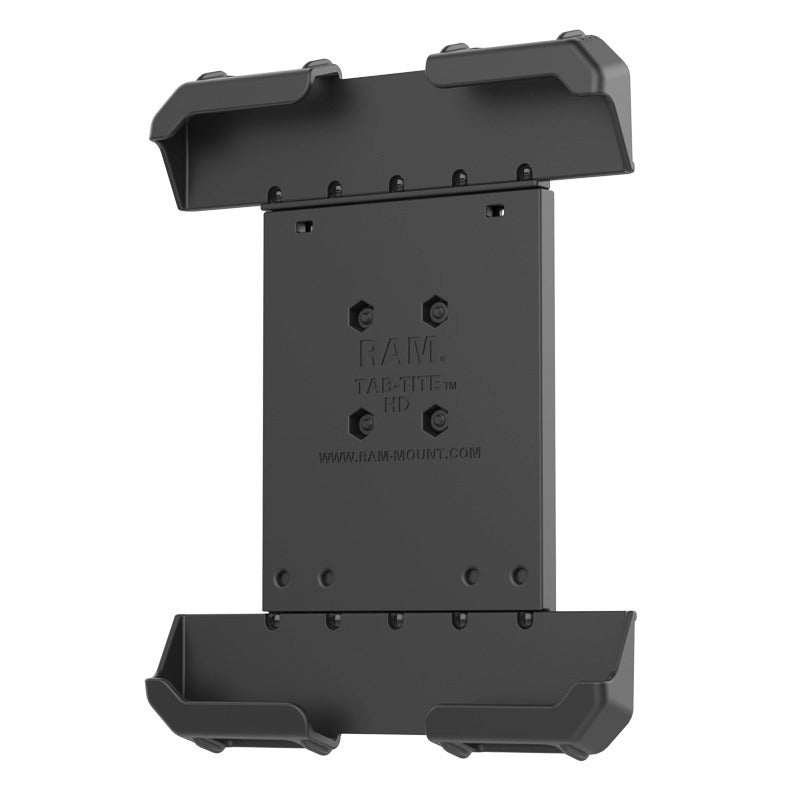

The RAM® Tab-Tite™ spring-loaded, quick release holder offers a secure fit with easy access to the mounted 9"-10" tablet. The spring-loaded design makes it easy to insert and remove your tablet, while keeping it secure in a variety of applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. Included is a set of four nuts and bolts to attach the holder to any RAM® components that contain the universal AMPS hole pattern. The RAM® Tab-Tite™ holder is compatible with any tablet within the listed dimensions.
Specs
Features
- Spring-loaded holder secures the Samsung Tab (S6 Lite, A7 10.4, S5e, and A 10.1) and Lenovo K10 Tablet with or without case; interchangeable end cups allow you to modify the holder when upgrading devices
- Compatible with RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Specifications
| Hardware Included | Assembly Hardware (4) #8-32 x 5/8" Machine Screws (4) #8-32 x 1/2" Machine Screws (4) #8-32 Nylock Nuts |
| Holder Dimensions | Height Range: 9.55" - 11.8" Width Range: 5.5" - 6.95" Depth Range: .2" - .66" max |
| Hole Pattern | 4-Hole AMPS: 1.181" x 1.496" |
| Materials | High strength composite |
| Packaging Type | Poly Bag |
| Weight | 0.62 lb |
