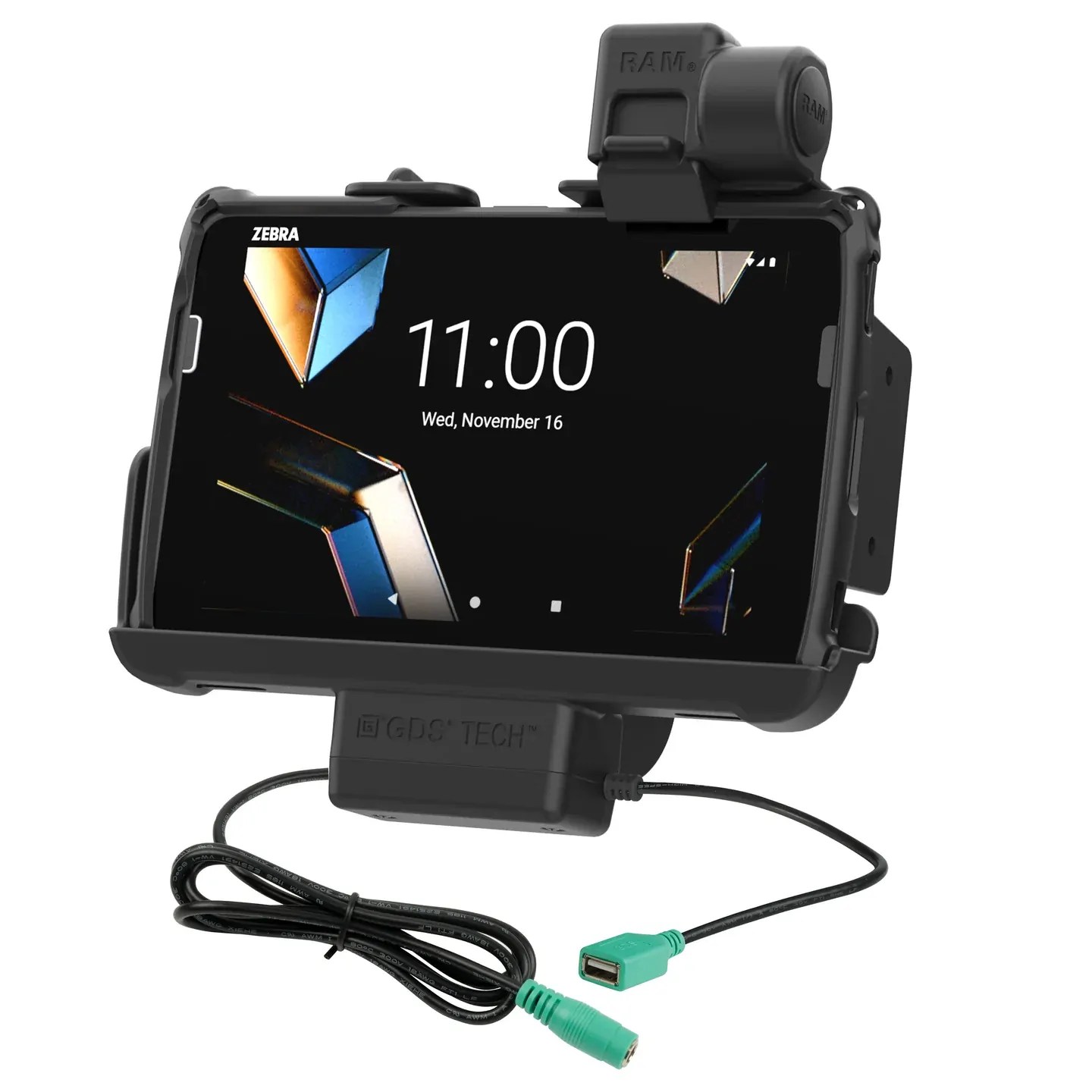

RAM® Tough-Dock™ Power + Data with Latch for Zebra ET401 8"
RAM® Tough-Dock™ Power + Data with Latch for Zebra ET401 8" - Image 2
RAM® Tough-Dock™ Power + Data with Latch for Zebra ET401 8" - Image 3
RAM® Tough-Dock™ Power + Data with Latch for Zebra ET401 8" - Image 4
RAM® Tough-Dock™ Power + Data with Latch for Zebra ET401 8" - Image 5
RAM® Tough-Dock™ Power + Data with Latch for Zebra ET401 8" - Image 6
RAM® Tough-Dock™ Power + Data with Latch for Zebra ET401 8" - Image 7

RAM® Tough-Dock™ Power + Data with Latch for Zebra ET401 8″

$409.00

Out of stock

Available on backorder
Barcode: 793442032813 SKU RAM-HOL-ZE44PDU Category
Overview

For frequent docking and undocking, this dock works with the Zebra ET401 with RAM® Skin™. This RAM® Tough-Dock™ (RAM-HOL-ZE44PDU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a 5.5mm DC barrel connector and allows you to keep the device charged through the pogo pin contacts when the device is docked. A single USB Type-A pigtail connector is provided for adding one additional input device. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories like the GDS® Roto-Mag™ and GDS® Hand-Stand™. To mount this dock, pair any C and D size RAM® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device.

Features

  • Form-fit + single USB Type-A dock designed specifically for the Zebra ET401 with RAM® Skin™, including a top latch design for frequent docking and undocking of the tablet
  • When connected to a power source via DC 5.5mm power jack, integrated pogo pins provide power to the device while docked, and a USB Type A connector for adding a peripheral
  • Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories
  • Built-in 2-hole mounting plate for additional device mounting such as a phone, scanner, printer, and more
  • Backed by a 3-year warranty

Specs

Product Information
Overview For frequent docking and undocking, this dock works with the Zebra ET401 with RAM® Skin™. This RAM® Tough-Dock™ (RAM-HOL-ZE44PDU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a 5.5mm DC barrel connector and allows you to keep the device charged through the pogo pin contacts when the device is docked. A single USB Type-A pigtail connector is provided for adding one additional input device. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories like the GDS® Roto-Mag™ and GDS® Hand-Stand™. To mount this dock, pair any C and D size RAM® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device.
