RAM® Tough-Dock™ with Latch for Zebra ET401 10″

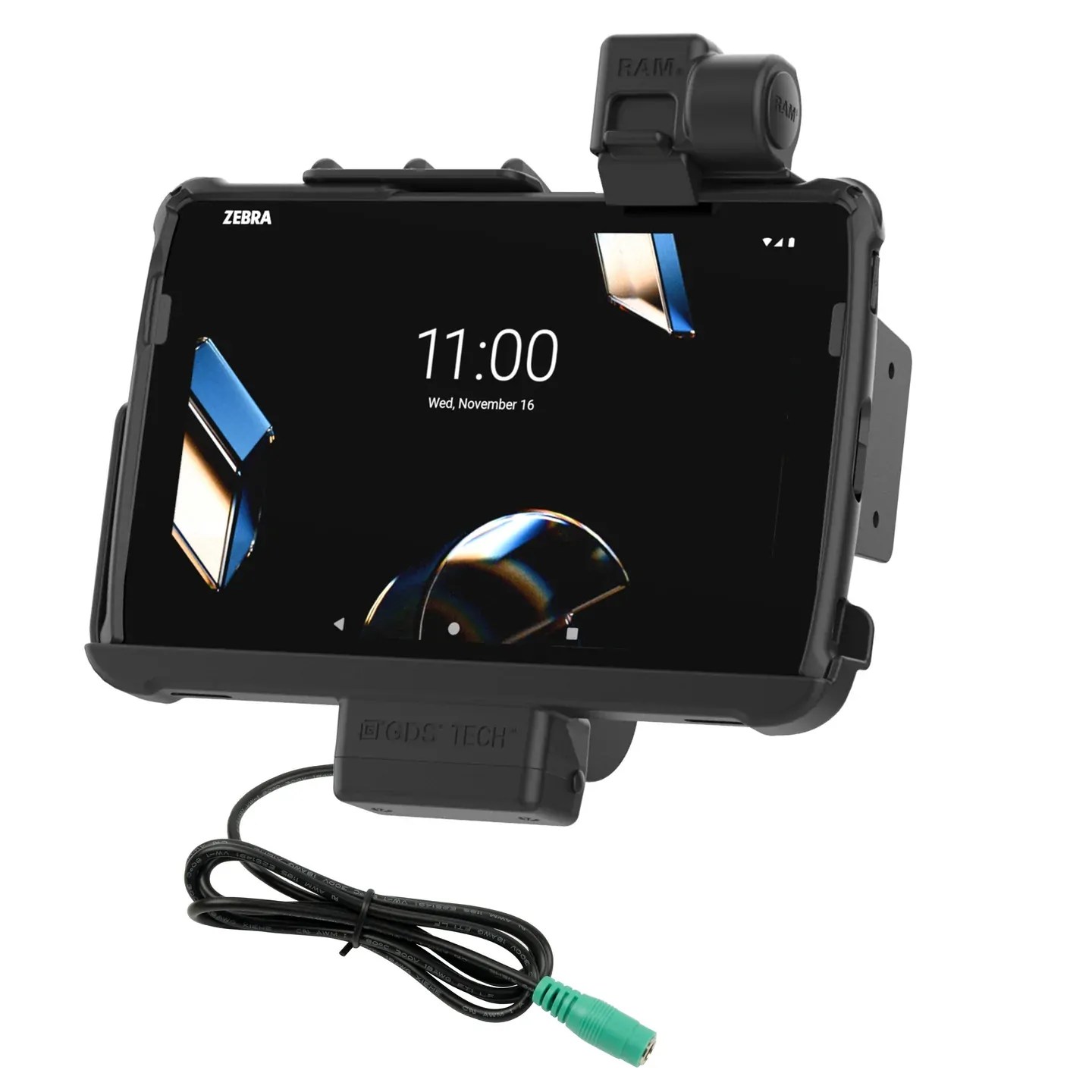

Name: RAM® Tough-Dock™ with Latch for Zebra ET401 10"
Brand: RAM Mounts
SKU: RAM-HOL-ZE45PU
Availability: OutOfStock

$398.00

Out of stock

Available on backorder

Device holder: tablets.

RAM ball size guide

The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.

Size	Ball diameter	Holds up to	Best for
A	9/16" (14 mm)	0.45 kg	Small cameras, action cams, remotes
B	1" (25 mm)	0.9 kg	Phones, GPS units, small tablets. The most common size.
C	1.5" (38 mm)	1.8 kg	Tablets, small monitors, rugged devices
D	2.25" (57 mm)	2.7 kg	Large displays and laptops
E	3.38" (86 mm)	6.8 kg	Heavy monitors and equipment

Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.

Barcode: 793442032899 SKU RAM-HOL-ZE45PU Category Tablet Mounts

Overview

For frequent docking and undocking, this dock works with the Zebra ET401 10" with Rugged Boot or RAM® Skin™. This RAM® Tough-Dock™(RAM-HOL-ZE45PU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a 5.5mm DC barrel connector and allows you to keep the device charged through the pogo pin contacts when the device is docked. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories like the GDS® Roto-Mag™ and GDS® Hand-Stand™. To mount this dock, pair any C and D size RAM® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device.

Features

Form-fit dock designed specifically for the Zebra ET401 10" tablets with Rugged Boot, including a top latch design for frequent docking and undocking of the tablet
When connected to a power source via DC 5.5mm power jack, integrated pogo pins provide power to the device while docked
Compatible with RAM® Skin™, as well as C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm
Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories
Backed by a 3-year warranty

Specs

Hardware Included

(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nyloc Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nyloc Nuts
(2) Small Cable Ties
