Smallrig L-Bracket for Sony A7 IV A7s III A7r IV A1 A9 ii – 3660

$79.95

In stock

SKU 3660 Category
Overview

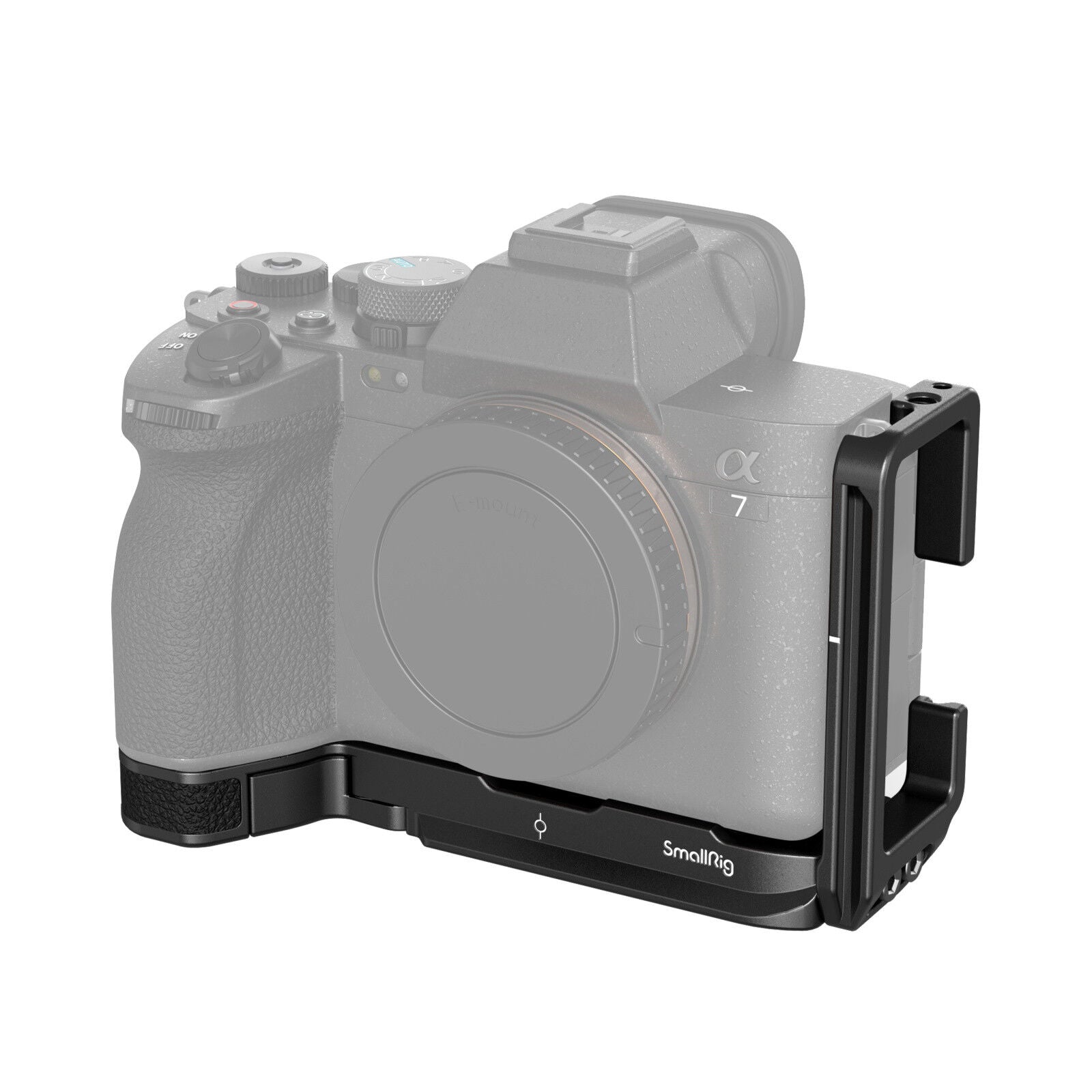

SmallRig L-Bracket for Sony Alpha 7 V / 7R V / 7 IV / 7S III / 1 / 7R IV / 9 II 3660B

SmallRig L-Bracket for Sony Alpha 7 V / 7R V / 7 IV / 7S III / 1 / 7R IV / 9 II 3660B is designed to facilitate a switch between horizontal and vertical modes and to improve grip experience. It locks the camera via one 1/4 "-20 screw at the bottom and one locating pin, with rubber pads preventing scratches, and has a hinge arm at the battery door that fits the camera curve to enhance grip. Embedded select genuine leather in the baseplate integrates into the camera body. Baseplate built-in Arca Swiss quick-release plate at the bottom, compatible with Arca-type tripods or DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro gimbals; Multiple 1/4"-20 threaded holes at the bottom support quick-release plates, tripods; Built-in wrist strap hole for use with Hand Strap 3848 , also features a QD mount to attach the QD strap buckle, and a built-in flat-head screwdriver & hex spanner for easy installation and removal. Arca-Swiss quick-release side plate for quick switch between horizontal and vertical modes on tripod, as well as a 25mm stretchable side plate that allows cables through in vertical shooting; The side plate is extendable to allow attaching HDMI cables and adjusted back and forth to facilitate 180-degree opening and 120-degree rotation of the LCD screen of Alpha 7 IV / Alpha 7S III.

Key Features

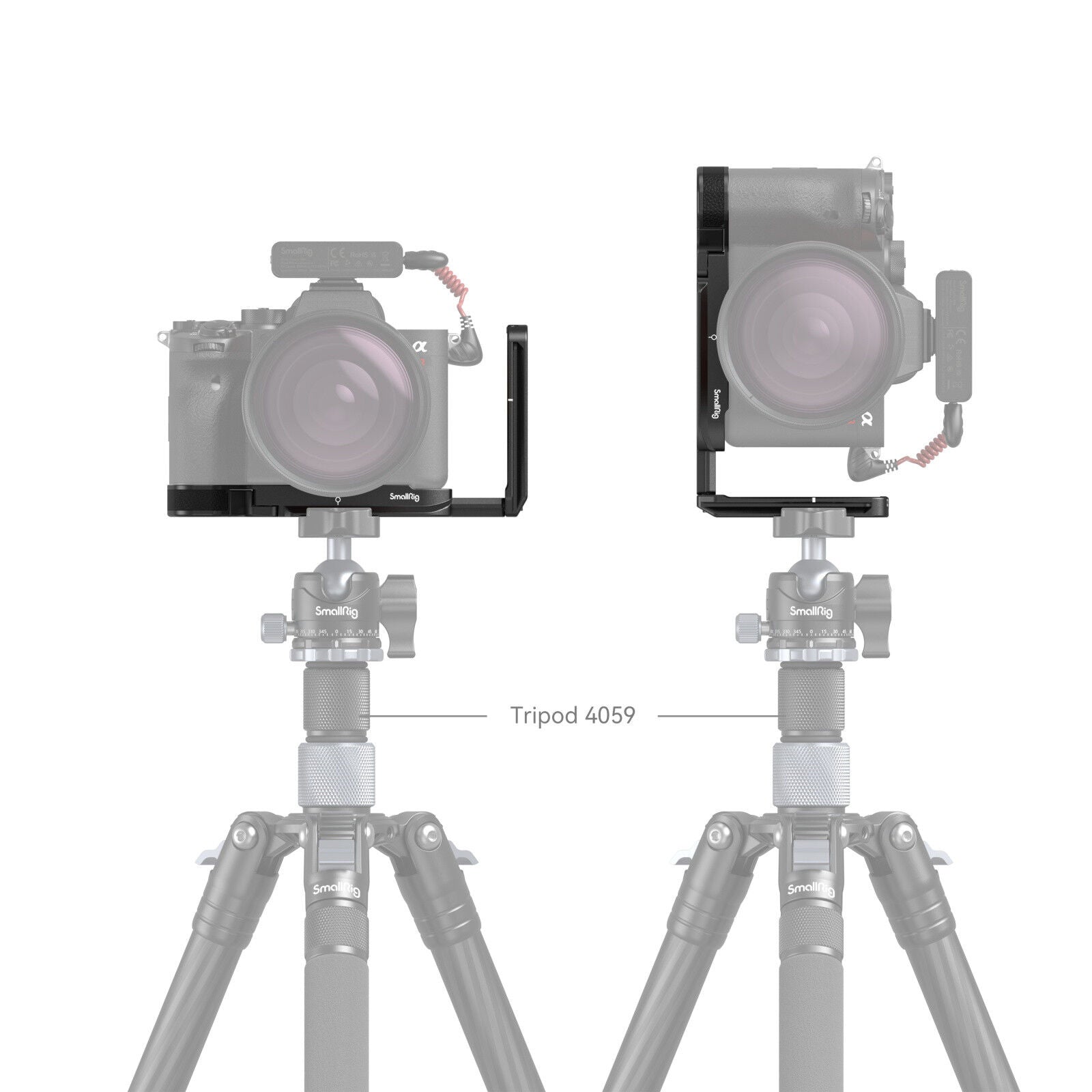

  1. Arca-Swiss quick-release bottom plate and side plate enable swift switching between horizontal and vertical modes on the tripod.
  2. The hinged arm at the battery door conforms to the camera curve and enhances the grip experience.
  3. Embedded select genuine leather in the baseplate integrates into the camera body.

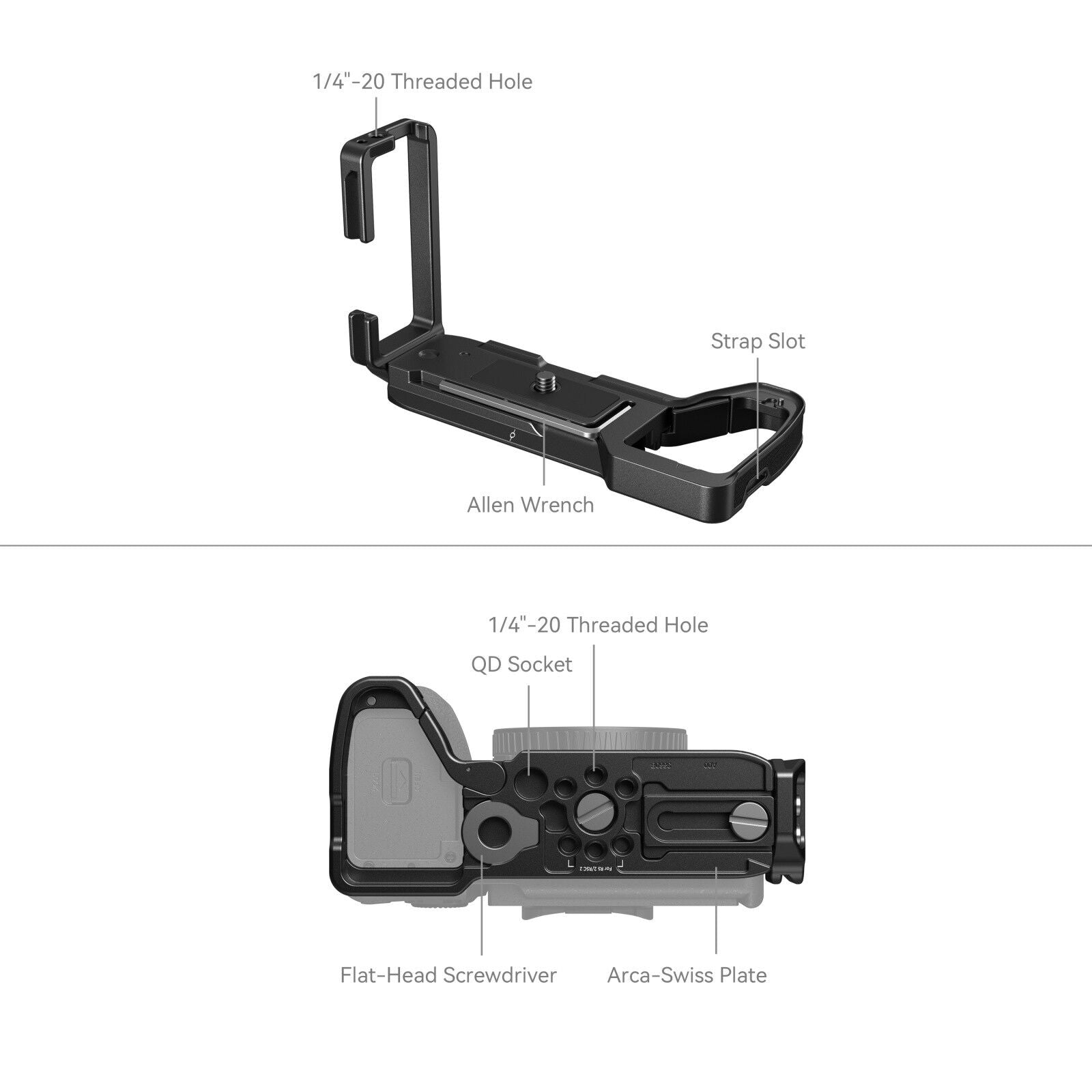

  4. Multiple mounting points: 1/4"-20 threaded hole, wrist strap hole, QD mount, for attaching a tripod, wrist strap, etc.

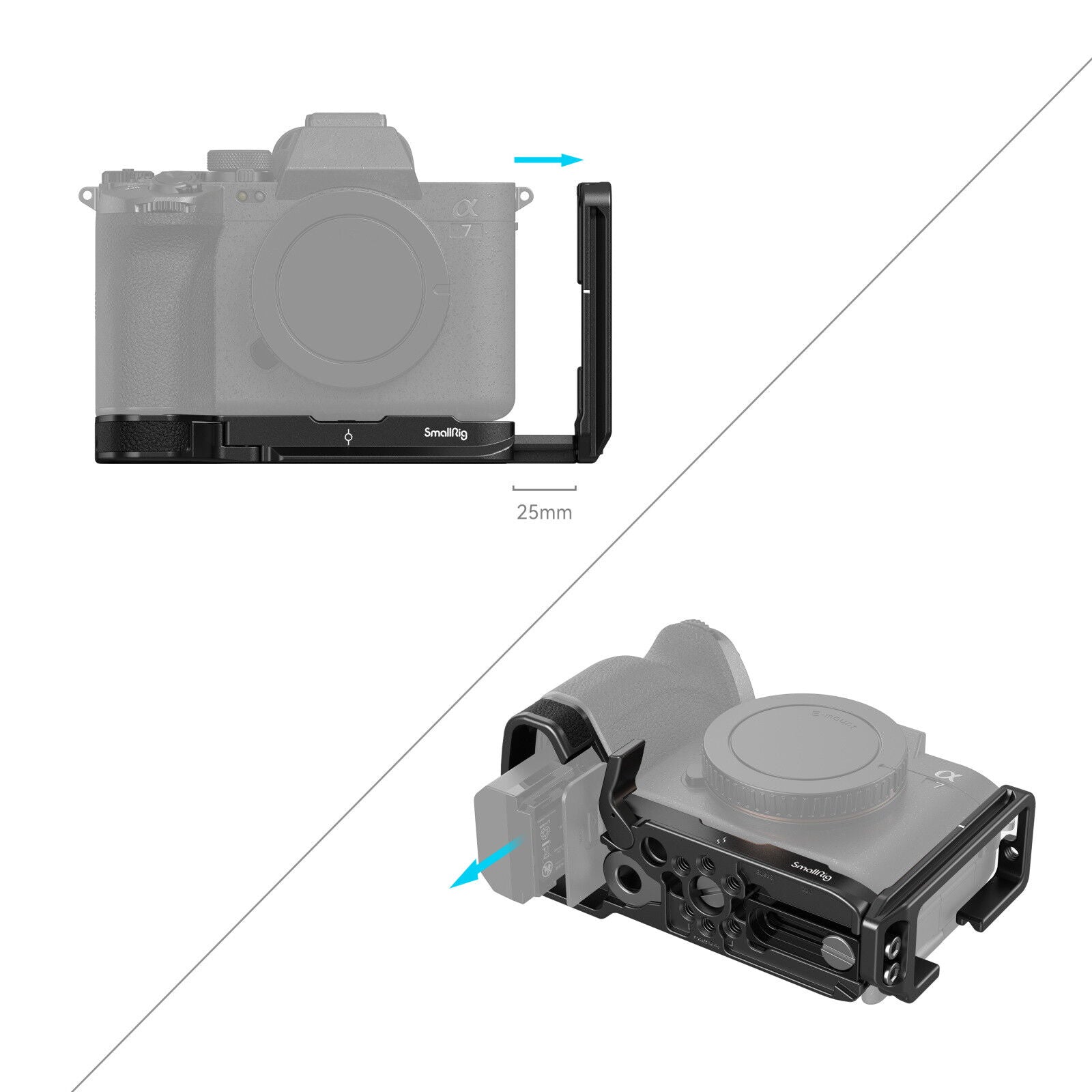

  5. A stretchable side plate allows cables through in vertical shooting.

Work With

Sony Alpha 7 V · Sony Alpha 7R V · Sony Alpha7 IV · Sony Alpha 7S III · Sony Alpha 7R IV

Packing List

  • Baseplate x 1

Technical Data

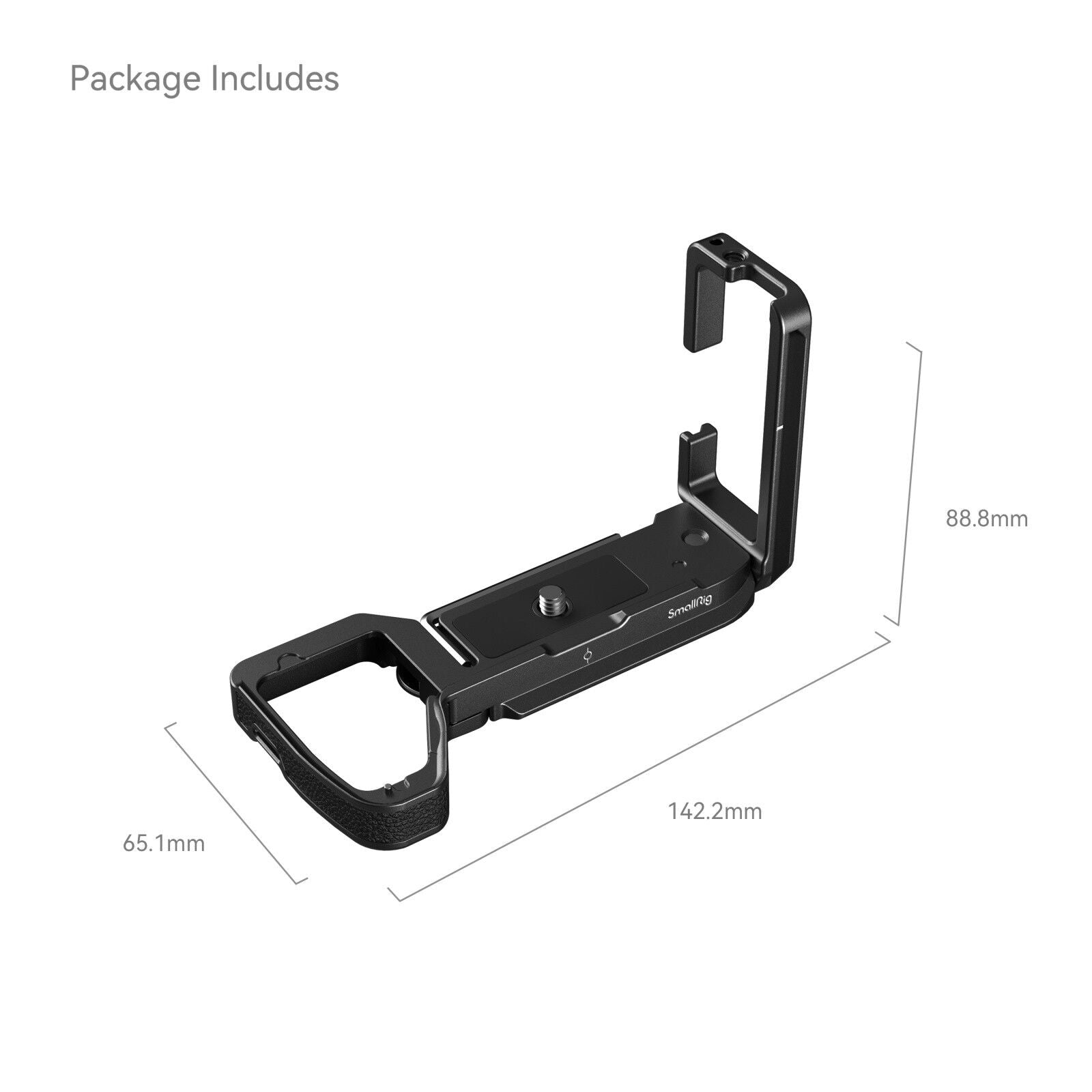

  • Product Dimensions: 142.2 x 65.1 x 88.8mm
  • Package Dimensions: 161.0 x 123.0 x 71.5mm
  • Product Weight: 135g±5g
  • Package Weight: 255g±5g
  • Material(s): Aluminum Alloy, Stainless Steel, Silicone, Genuine Leather
