SmallRig Tripod Head Quick Switch Clamp with Plate (Arca-Swiss Style) – KDBC2406

$59.95

In stock

SKU KDBC2406 Category
Overview

SmallRig Tripod Head Quick Switch Clamp with Plate (Arca-Swiss Style) KDBC2406

SmallRig Tripod Head Quick Switch Clamp with Plate (Arca-Swiss style) KDBC2406 is designed for quickly switching from different types of tripod heads depending on the portability, stability, and load requirements. It comes with a 65mm diameter clamp and a 60mm diameter plate. The Arca-Swiss style clamp can be screwed on the tripod via a 3/8’-16 screw and the plate screwed on the bottom of the head. Both the clamp and the plate feature safety stops to prevent unwanted slipping. The centerline on the clamp and plate makes for accurate positioning. It’s lightweight and compact with a load capacity of up to 6KG.

*Please note the import tax may occur.

Note: Please make sure the anti-rotation screws on the clamp or Quick-Release plate have been removed before mounting/dismounting the clamp or the QR plate.

Key Features

  1. Perfect for most photo tripods.
  2. Arca-Swiss style clamp with plate allowing quick switch of different heads.
  3. Center line on the clamp and plate makes for accurate positioning.
  4. Features safety stops on both clamp and plate to prevent unwanted slipping.
  5. Lightweight and compact with load capacity up to 6KG.

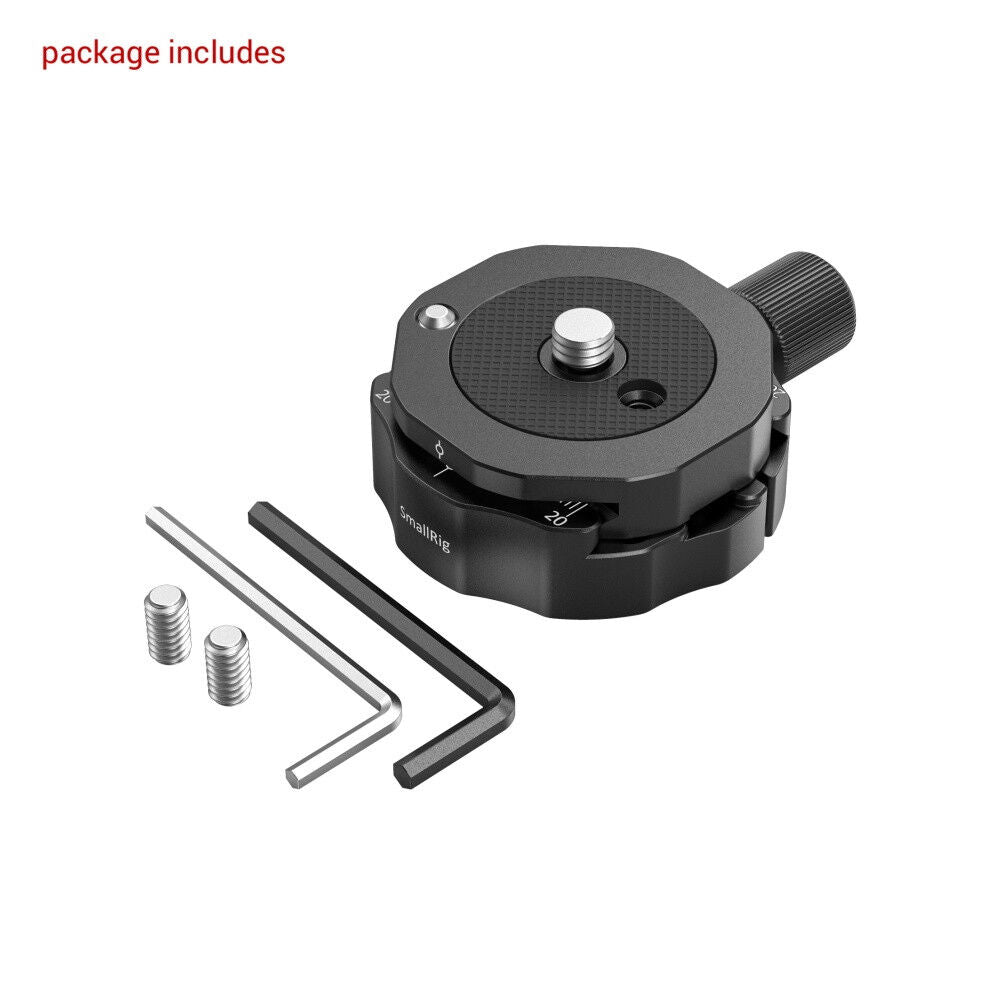

Packing List

  • 1 x Clamp (Φ65mm)
  • 1 x Plate (Φ60mm)
  • 2 x Hex spanner
  • 2 x Anti-rotation screw

Technical Data

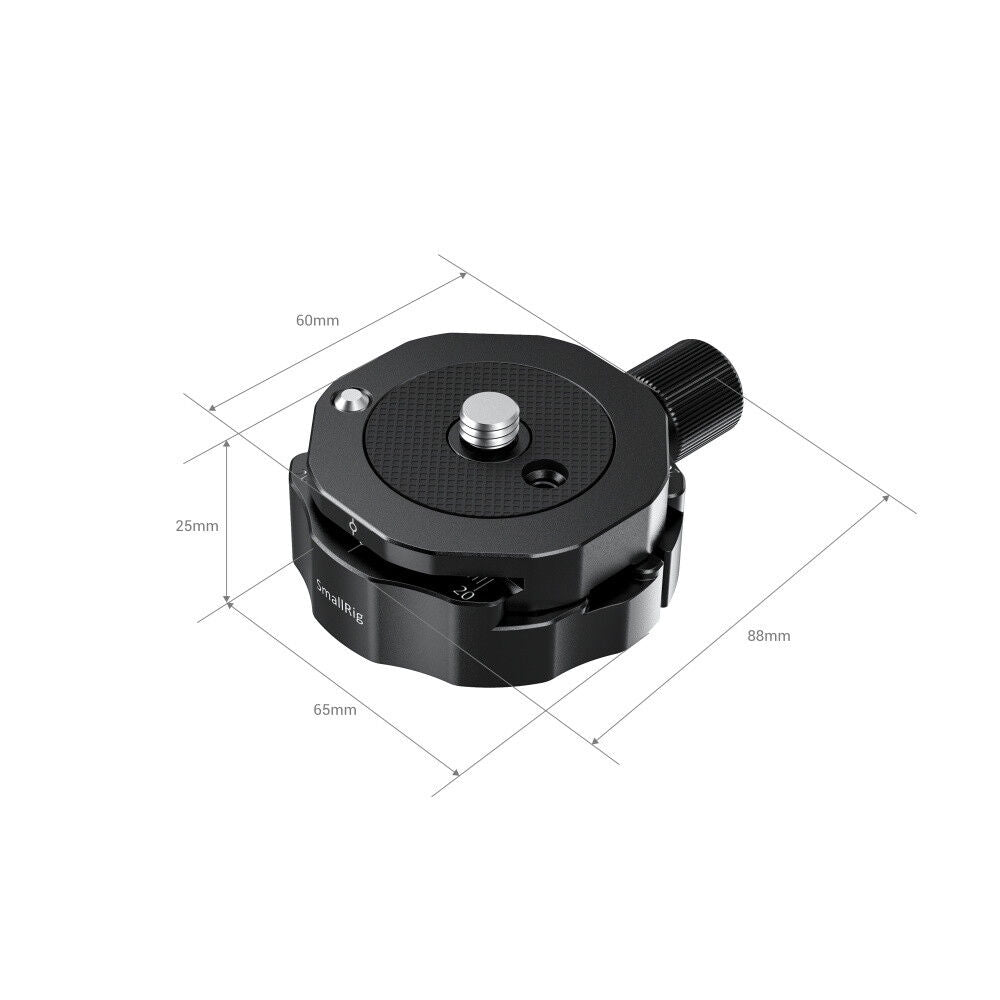

  • Product Dimensions: 65 x 65 x 25mm
  • Package Dimensions: 105 x 95 x 30mm
  • Net Weight: 155g
  • Package Weight: 190g
  • Material(s): Aluminum Alloy
