RAM® Tough-Mag™ Heavy Duty Magnetic Mount with Round Plate - Short
RAM® Tough-Mag™ Heavy Duty Magnetic Mount with Round Plate - Short - Image 2
RAM® Tough-Mag™ Heavy Duty Magnetic Mount with Round Plate - Short - Image 3

RAM® Tough-Mag™ Heavy Duty Magnetic Mount with Round Plate – Short

RAM Mounts

$237.00

images

RAM Tough-Mag 88MM Diameter Magnetic Ball Base - C Size

$148.00

Out of stock


RAM Round Plate with Ball - C Size

$35.00
ram-201u-b-2

RAM Double Socket Arm - C Size Short

$54.00

Out of stock Available on backorder

Not sure this fits your setup?Tell us your device and where you are mounting it. The RAM® Mount Builder shows every mount that fits.Find my mount
SKU RAM-101-B-MAG88U Categories ,
Overview

Overview

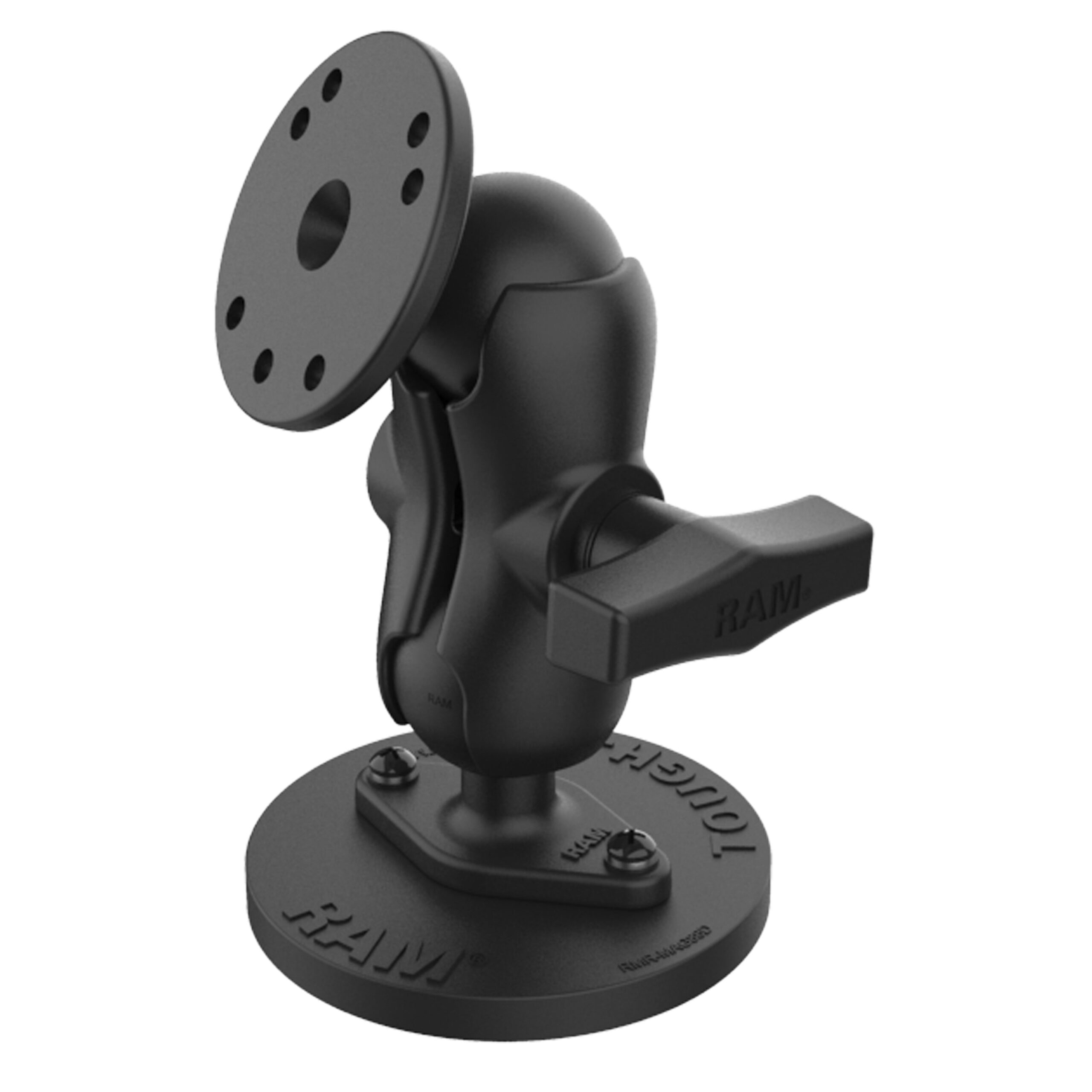

The RAM® Tough-Mag™ Heavy Duty Magnetic Mount with Round Plate - Short (RAM-101-B-MAG88U) features a short length double socket arm, one 2.5" diameter round base, and one RAM® Tough-Mag™ base. This heavy duty magnetic solution features C size components from our patented rubber ball and socket system, allowing the system to adjust at both ends of the socket arm. The rubber ball and socket technology allows for almost infinite adjustment to provide ideal viewing angles and dampens shock and vibration to extend the life of your device. The RAM® Tough-Mag™ features 10 industrial-strength N52 grade magnets that magnetize to any ferrous metal surface and rubber coating that protects the metal surface you're attaching to.

Features

  • Magnetic or drill-down mounting solution; secure your device to one end and the other to your preferred surface
  • Includes one round ball base, one Tough-Mag™ base, and one C size short length double socket arm; ball and socket technology allows for near-infinite adjustability
  • RAM® Tough-Mag™ 88mm base magnetizes to any ferrous metal surface
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Specs

Product Dimensions

Overall Height: 5.54"

Socket To Socket Length

2.5"

Hole Pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

Plate Size

Top Plate: 2.5" Diameter
Magnetic Base: 3.46" Diameter

Ball Size

C Size (1.5")

Weight Capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

Materials

Marine-grade aluminum
N52 Magnets (Qty 10)

Packaging Type

Poly Bag

Weight

1.29 lb
