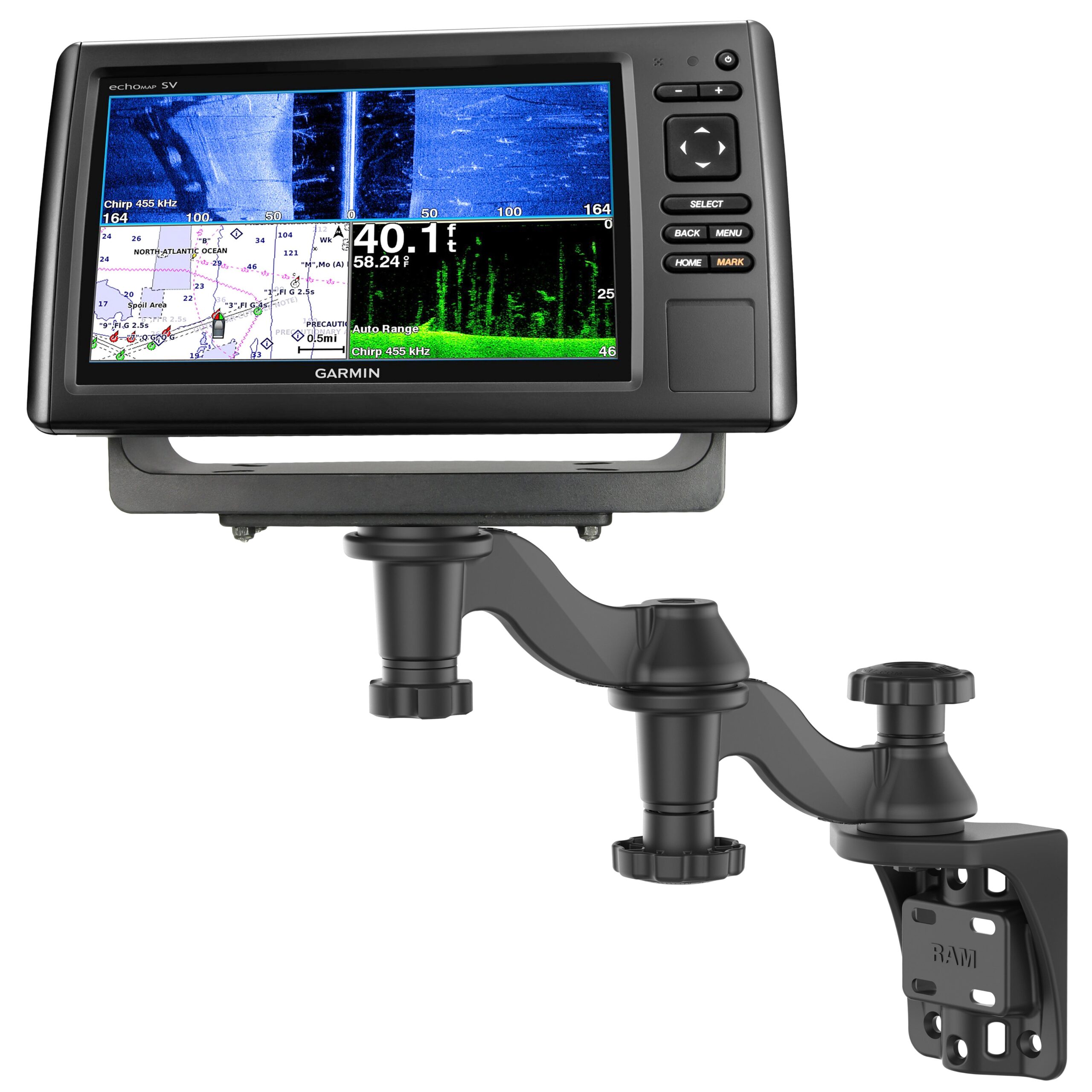

RAM® Vertical 12″ Swing Arm Mount for Fish Finders & Plotters

RAM Mounts

$276.00

images

RAM Vertical Swing Arm Base

$69.00

RAM® Rectangular Plate Adapter for Swing Arm Mounts

$46.00
images

RAM 6" Curved Extension Swing Arm for Horizontal/Vertical Mounts

$83.00
RAM-109-1APU

RAM 6" Curved Swing Arm for Horizontal/Vertical Mounts

$78.00

In stock

Not sure this fits your setup?Tell us your device and where you are mounting it. The RAM® Mount Builder shows every mount that fits.Find my mount
SKU RAM-109V-1U Categories , ,
Overview

Overview

The RAM double swing arm mount includes two 6" long bent swing arms mounted on a vertical surface mounting base. At the end of the device mount is a rectangular 6.25 x 2" top base. The pivoting points of the mount allow a complete 360 degree rotation.

Specs

Product Dimensions

Overall Height: 11.58"
Total Swing Arm Length: 12"

Hole Pattern

See Drawing

Plate Size

Top Plate: 6.25" x 2"
Bottom Plate: 3.97" x 4.85"

Weight Capacity

8 lbs

Materials

Marine-grade aluminum

Packaging Type

Poly Bag

Weight

3.9 lb

Additional Information

The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
