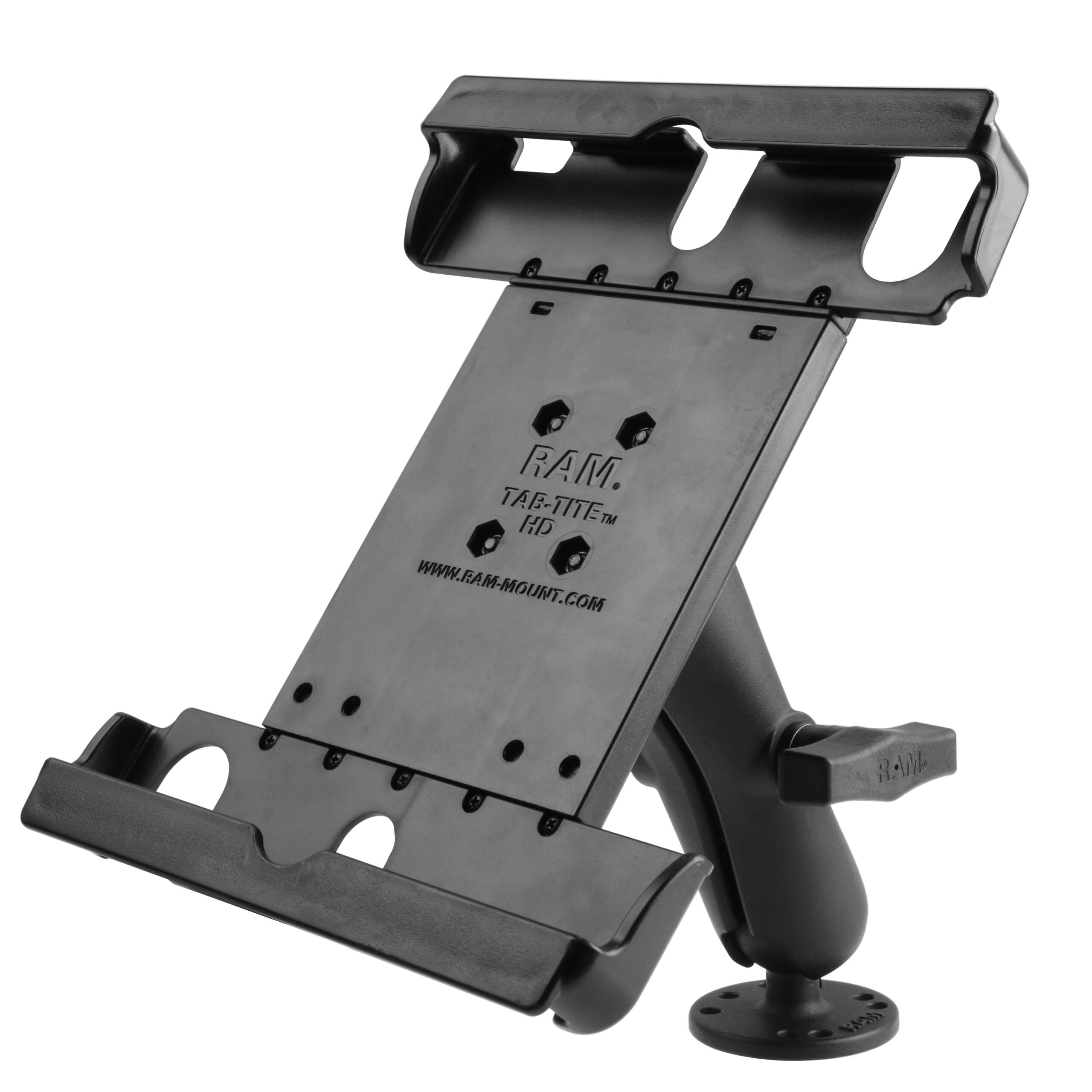

RAM® Tab-Tite™ 9"-10.5" Tablet Holder with Flat Surface Mount - Image 1
RAM® Tab-Tite™ 9"-10.5" Tablet Holder with Flat Surface Mount - Image 2
RAM® Tab-Tite™ 9"-10.5" Tablet Holder with Flat Surface Mount
RAM® Tab-Tite™ 9"-10.5" Tablet Holder with Flat Surface Mount - Image 2

RAM® Tab-Tite™ 9″-10.5″ Tablet Holder with Flat Surface Mount

RAM Mounts

$199.00

ram-201u-2

RAM Double Socket Arm - C Size Medium

$58.00

In stock


RAM Round Plate with Ball - C Size × 2

$35.00 each

In stock

49459-RAM-HOL-TAB20U_d288b550-0027-4e69-bf02-1e95230876eb-sq

RAM Tab-Tite Holder for 9"-10.5" Tablets with Heavy Duty Cases

$71.00

In stock

In stock

Not sure this fits your setup?Tell us your device and where you are mounting it. The RAM® Mount Builder shows every mount that fits.Find my mount
SKU RAM-138-TAB20U Categories ,
Overview

Overview

This C size drill-down mount comes equipped with the RAM® Tab-Tite™ holder for 9"-10.5" tablets with a case. This kit consists of two 2.5" diameter round bases that contains the universal AMPs hole pattern, and a C size double socket arm. The mount is designed with a 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; allowing for almost infinite adjustment and perfect viewing angles. The rugged double ball and socket mounting system dampens shock and vibration, helping to extend the life of your device.

Features

  • Spring-loaded holder secures most 9"-10.5" tablets with cases; interchangeable end cups allow you to modify the holder when upgrading devices
  • Includes two C size drill-down round ball bases and C size medium length double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Specs

Hardware Included

Assembly Hardware

Holder Dimensions

Height Range: 9.5" - 12.125"
Width Range: 6.55" - 7.43"
Depth Range: .3" - .875"

Socket To Socket Length

4.66"

Hole Pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

Plate Size

2.5" Diameter

Ball Size

C Size (1.5")

Weight Capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

Materials

Marine-grade aluminum
High strength composite

Packaging Type

Poly Bag
