RAM Lift Truck Overhead Guard Base with Ball – D Size

RAM Lift Truck Overhead Guard Base with Ball – D Size

OVERVIEW

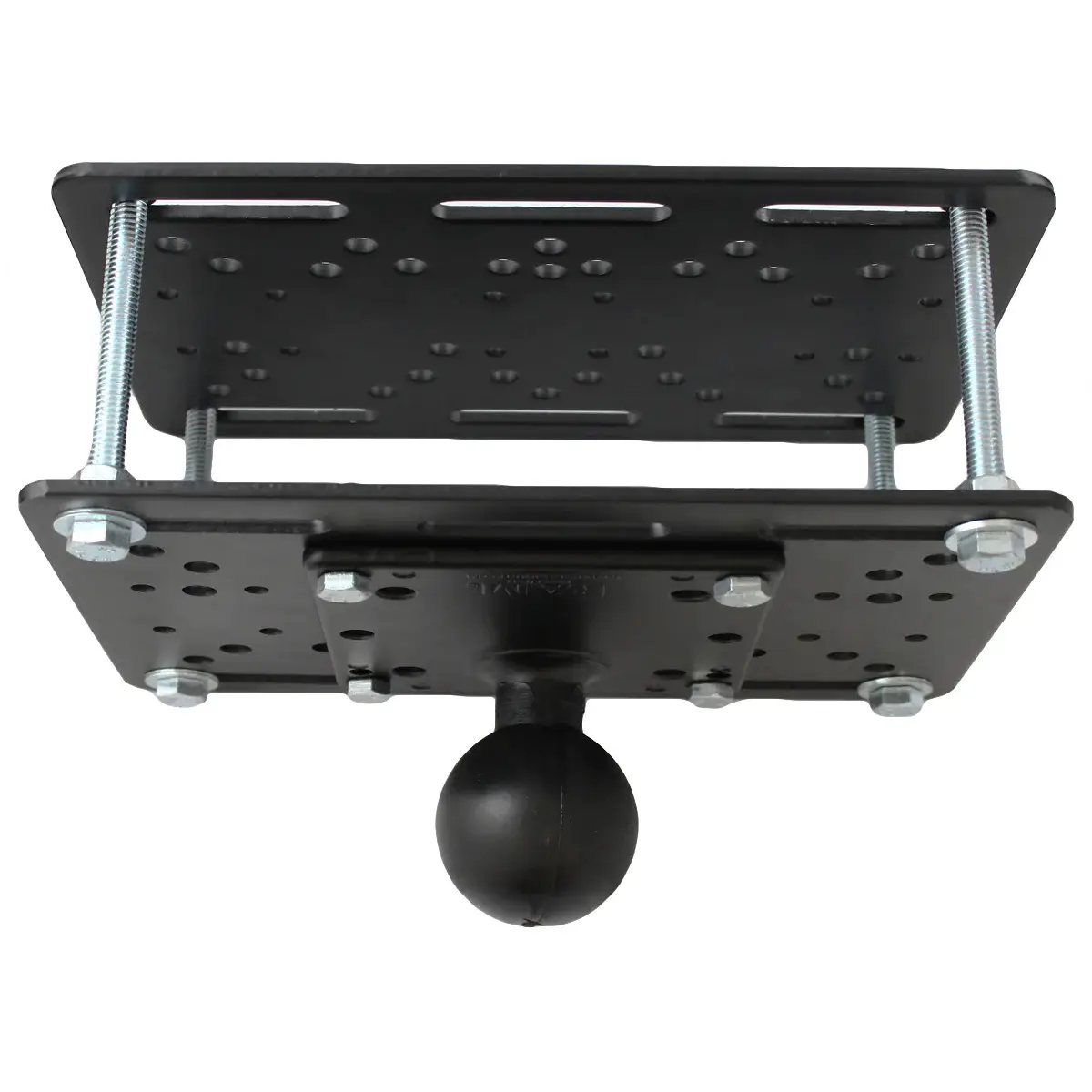

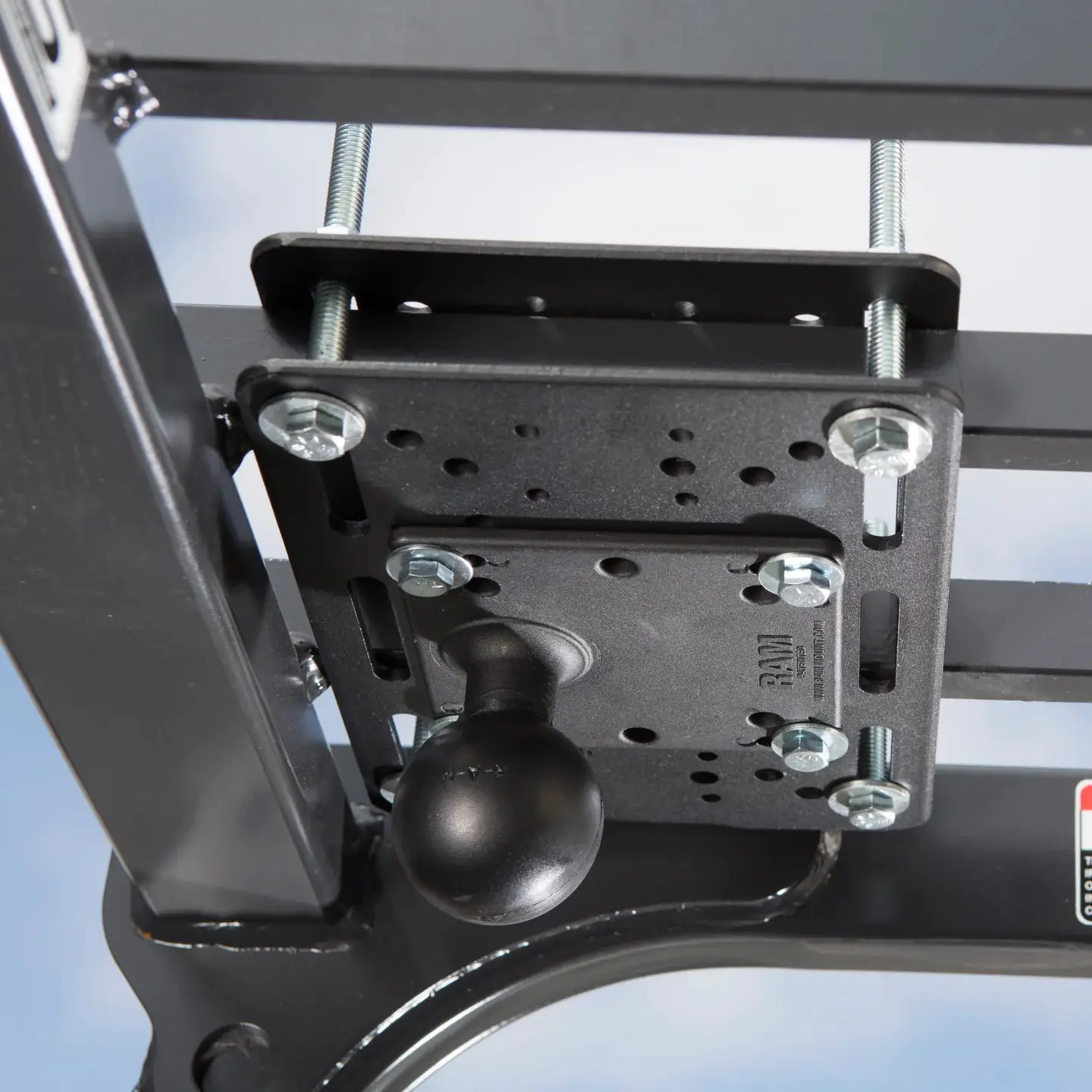

The RAM-335-D-246 provides a 2.25" diameter D-size ball that can be attached to the overhead guard of most forklifts.

HARDWARE INCLUDED

Assembly Hardware(4) 3/8"-16 x 4" Zinc Hex Bolts(4) 3/8"-16 Zinc Hex Nuts(4) 3/8" Zinc Lock Washers(8) 3/8" Zinc Flat Washers(4) #10-24 Machine Screws(4) #10-24 Nylock Nuts

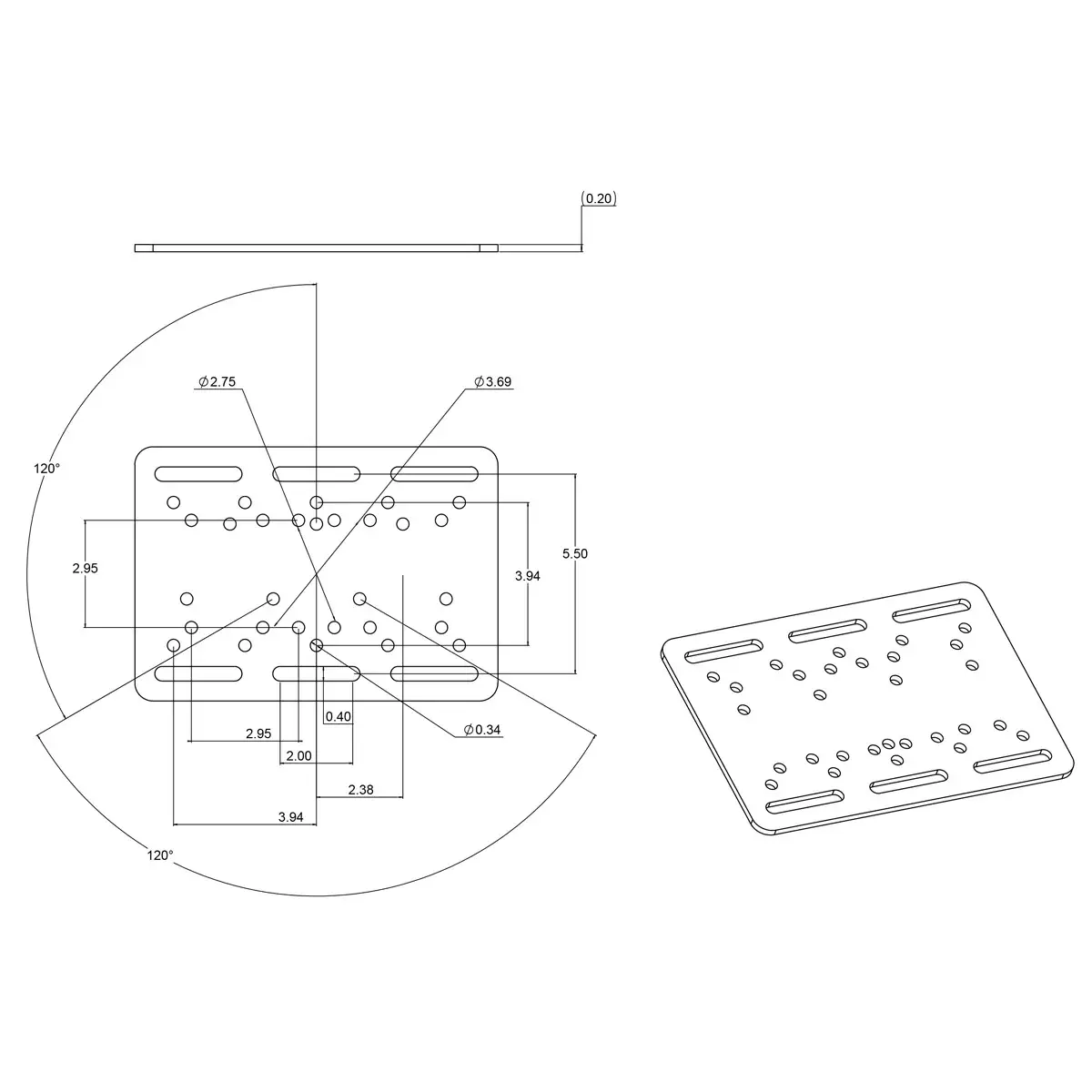

HOLE PATTERN

See Drawing

BALL SIZE

D Size (2.25")

WEIGHT CAPACITY

Standard Use: 6 lbsHeavy-Duty Use: 5 lbs

MATERIALS

Powder coated steelMarine-grade aluminum

PACKAGING TYPE

Box

WEIGHT

8.9 lb
