RAM® EZ-Roll’r™ Dock & Dashboard Mount for Samsung XCover7 Pro & 6 Pro

RAM® EZ-Roll’r™ Dock & Dashboard Mount for Samsung XCover7 Pro & 6 Pro

OVERVIEW

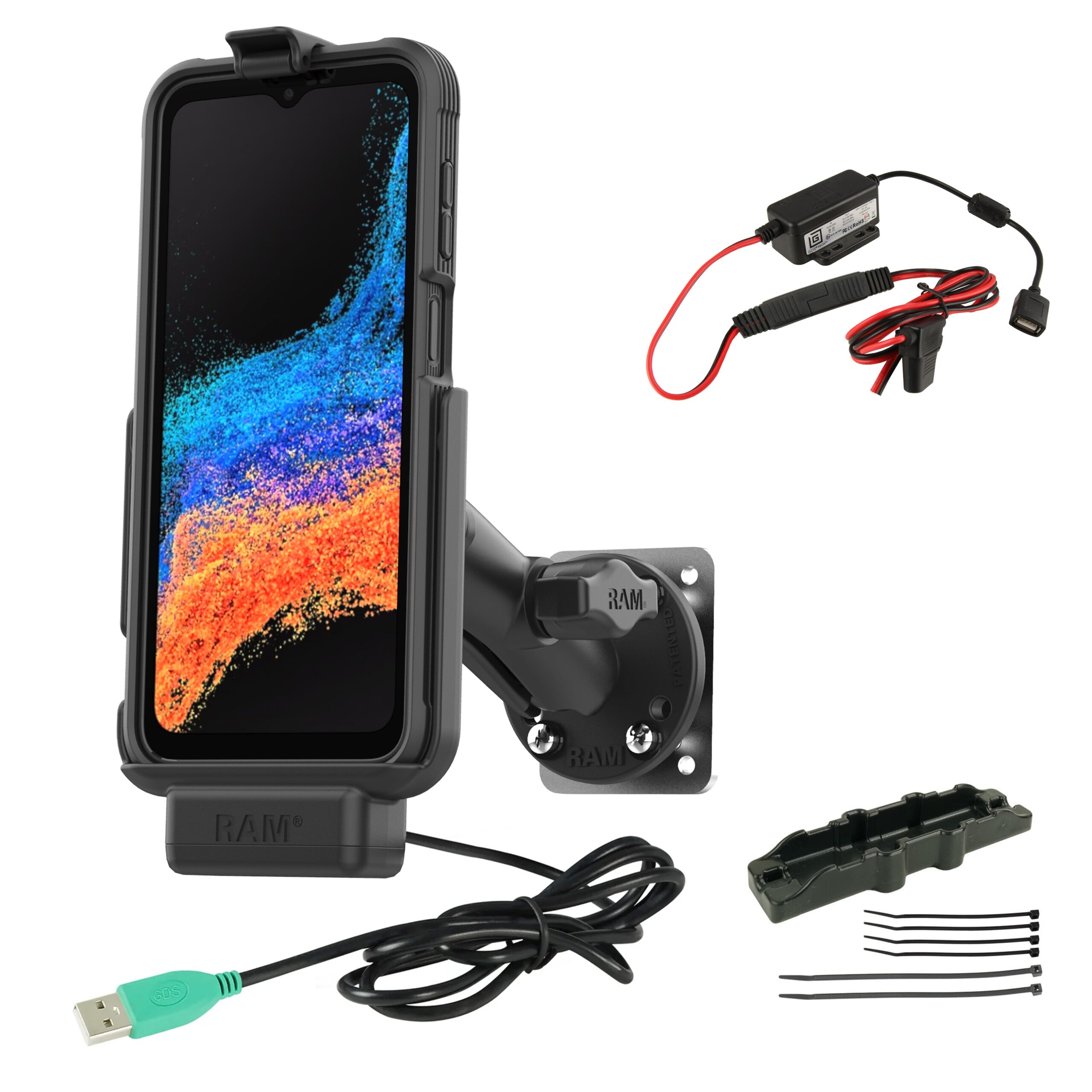

The RAM® EZ-Roll'r™ Dock & Dashboard Mount for Samsung XCover7 Pro and XCover6 Pro (RAM-B-101-225B2-SAM84-V7B1U) is a comprehensive kit of everything needed to deploy the devices in your fleet. It contains one RAM® EZ-Roll'r™ dock, RAM® Skin for the XCover7 Pro or XCover6 Pro, and double ball mount with backing plate. The dock uses a USB Type-A female power connector and integrated pogo pins to provide power to the device while docked. It also features an easy docking and undocking process, simply place the device into the base of the dock and push it to snap into place. When undocking, a simple push the lever upwards to release the device. The RAM® EZ-Roll'r™ Dock is backed by a 3-year warranty.

HARDWARE INCLUDED

Assembly Hardware(1) 2.10" x 2.60" Steel Backing Plate(4) #8-32 x 1" Screws(4) #8 Split Lock Washers(4) #8 Flat Washers

SOCKET TO SOCKET LENGTH

3"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

SteelMarine-grade aluminumHigh strength composite

PACKAGING TYPE

Poly Bag

INPUT VOLTAGE

10-30VDC

OUTPUT VOLTAGE

5-9VDC

OUTPUT CURRENT

2.5A max

INPUT CABLE LENGTH

1.2 Meters including 2 pole flat marine connector

OPERATING TEMPERATURE

-10°C to +70°C

STORAGE TEMPERATURE

-40°C to +70°C

REGULATORY

Overvoltage/Load Dump Compliance: Meets SAE J-1113

CERTIFICATIONS

Integrated Short Circuit ProtectionFCC, Industry Canada, CE, WEEE, E-Mark and RoHS Compliant USB 2.0 BC 1.2 DCP Support

WEIGHT

1.63 lb
