RAM® Dashboard Mount with Backing Plate for 8″ Tablets with Cases

RAM® Dashboard Mount with Backing Plate for 8″ Tablets with Cases

OVERVIEW

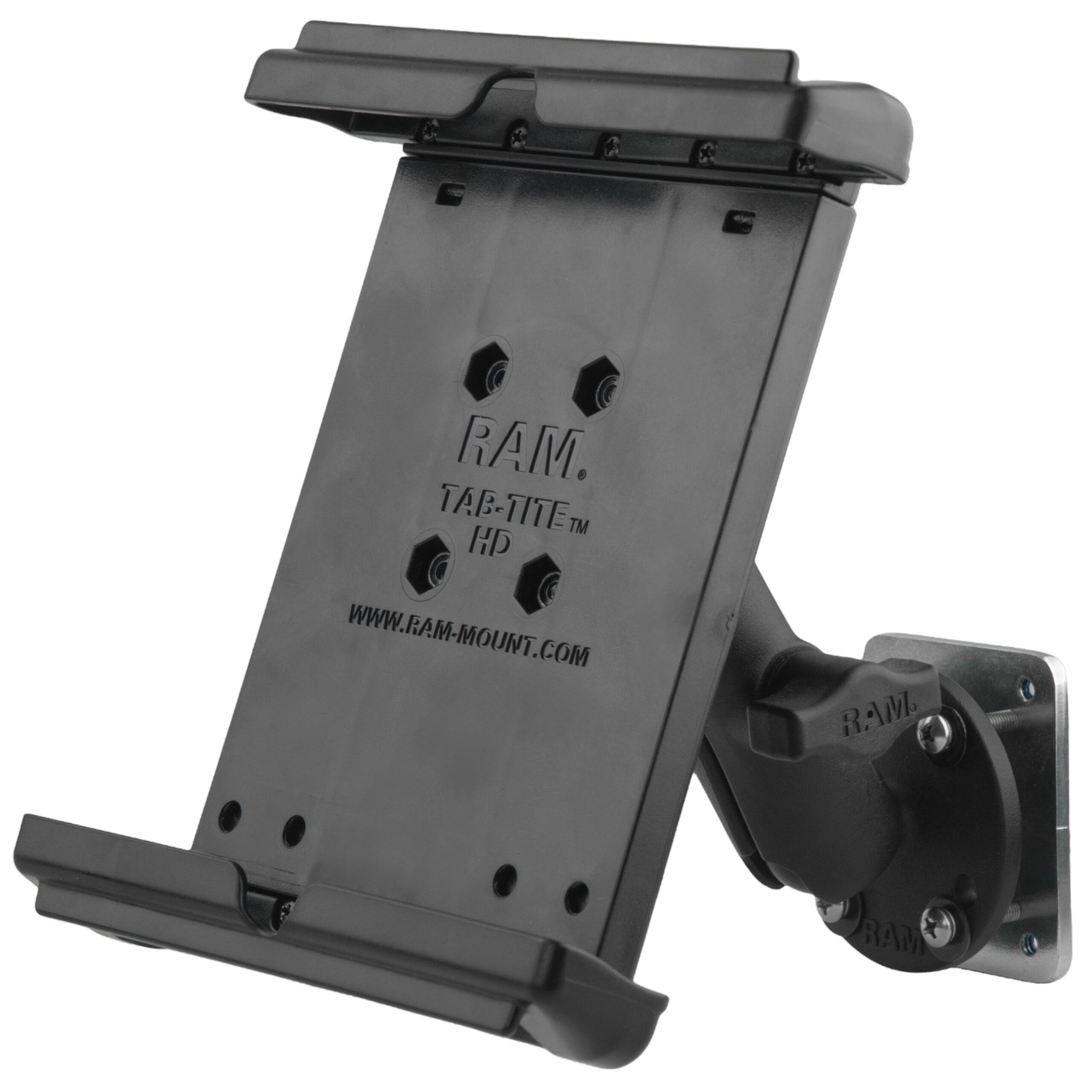

This vehicle kit consists of a RAM® Tab-Tite™ spring loaded holder for 8" tablets with a case, medium B size double socket arm, two 2.5" diameter round bases that contain the universal AMPS hole pattern, a 2.10" x 2.60" backing plate, and mounting hardware. The mount is designed with a 1" diameter B size rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles.

HARDWARE INCLUDED

Assembly Hardware(1) 2.10" x 2.60" Steel Backing Plate(4) #8-32 x 1" Screws(4) #8 Split Lock Washers(4) #8 Flat Washers

HOLDER DIMENSIONS

Height Range: 7.125" - 9.5"Width Range: 5.06" - 5.68"Depth Range: .13" - 1"

SOCKET TO SOCKET LENGTH

3"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE

2.5" Diameter

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbsHeavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum High strength composite Powder coated steel

PACKAGING TYPE

Poly Bag

WEIGHT

1.36 lb
