RAM X-Grip Holder with Ball for 9″-11″ Tablets
$220.00
RAM ball size guide
The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.
| Size | Ball diameter | Holds up to | Best for |
|---|---|---|---|
| A | 9/16" (14 mm) | 0.45 kg | Small cameras, action cams, remotes |
| B | 1" (25 mm) | 0.9 kg | Phones, GPS units, small tablets. The most common size. |
| C | 1.5" (38 mm) | 1.8 kg | Tablets, small monitors, rugged devices |
| D | 2.25" (57 mm) | 2.7 kg | Large displays and laptops |
| E | 3.38" (86 mm) | 6.8 kg | Heavy monitors and equipment |
Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.
Need a base and arm for this? Complete your mount ↓
Complete your mount
A RAM mount is three parts: a base that attaches to your vehicle or surface, a socket arm that connects the balls, and a holder for your device. All B size parts below fit together. Tick one of each, then add them in one go.
Base
Nothing in stock for that choice in B size. Try another option.
Arm
Nothing in stock for that choice in B size. Try another option.
Holder
Not listed.
Any tablet 159–206 mm wide also fits.
- Spring-loaded ‘X’ design with rubber caps sports great holding power without hiding your tablet; fits most 9″-10″ tablets
- Included round plate features B size 1″ RAM® rubber ball and allows for connection to any B size RAM® double socket arm
- Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Overview

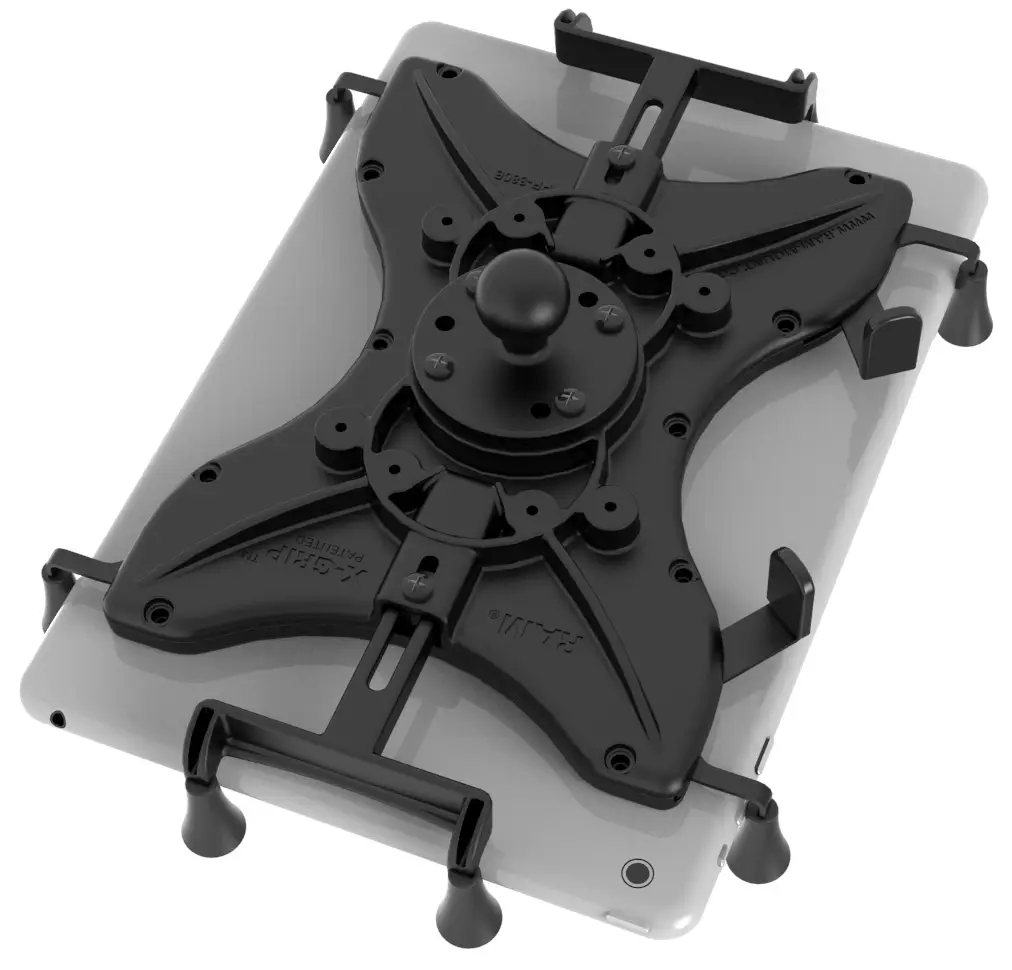

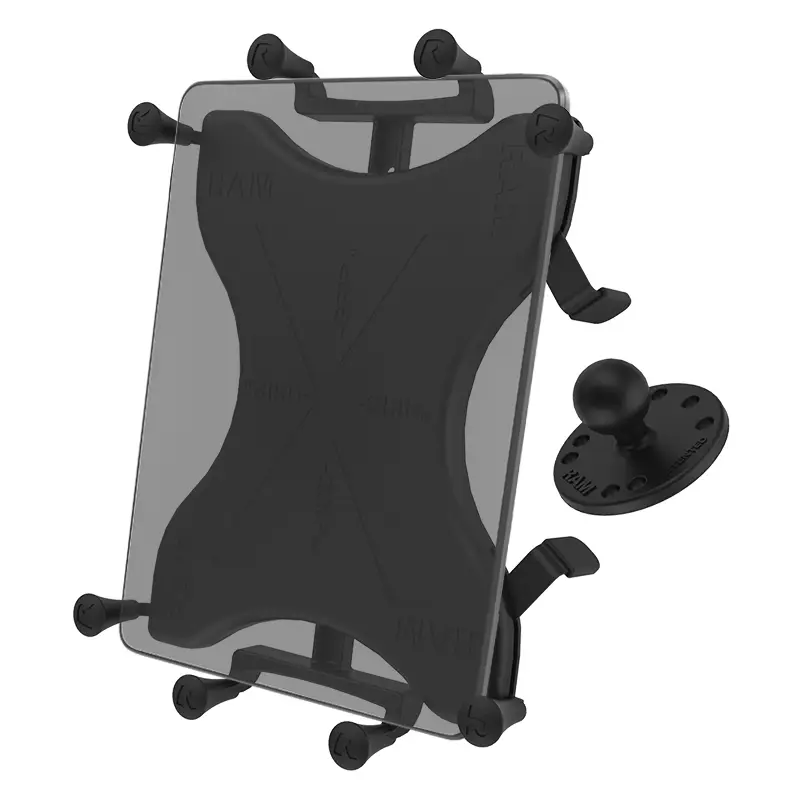

The RAM-B-202-UN9U consists of a composite spring loaded cradle, expandable grip arms, additional bottom support keepers and 1" ball base adapter. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The RAM-B-202-UN9U expands and contracts for perfect fit of most 9"-11" tablets with or without sleeves, as well as some smaller tablets. The included 1" ball base includes hardware to attach directly to the back of the cradle and is compatible with all "B" size double socket arms. Please verify dimensions of your tablet below for compatibility with the X-Grip®. The X-Grip® cradle is compatible with tablets devices that will fit the dimensions listed below. It is important to verify the dimensions of your tablet with a case/sleeve/skin when determining the overall size.
Features
- Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 9"-11" tablets
- Included round plate features B size 1" RAM® rubber ball and allows for connection to any B size RAM® double socket arm
- Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Hardware Included
Assembly Hardware
Holder Dimensions
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"
Ball Size
B Size (1")
Weight Capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Materials
Marine-grade aluminum
High strength composite
Packaging Type
Poly Bag
Weight
1.22 lb
