RAM Ball Adapter with M10-1.25 Threaded Post – (Duplicate Imported from WooCommerce)

FEATURES

• Universal threaded hole solution for a variety of use cases

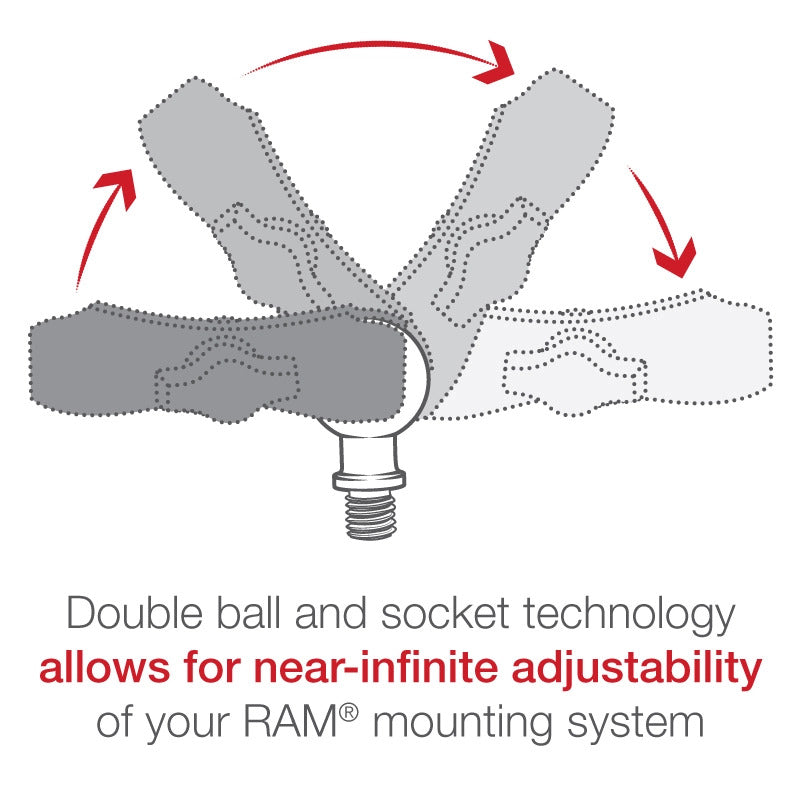

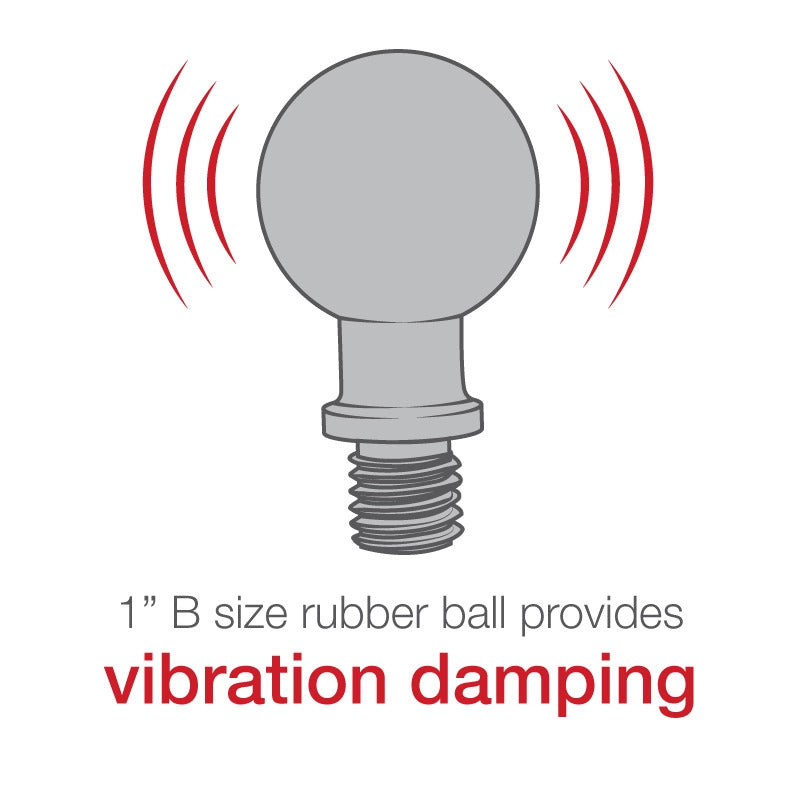

• Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
• Backed by a lifetime warranty

OVERVIEW

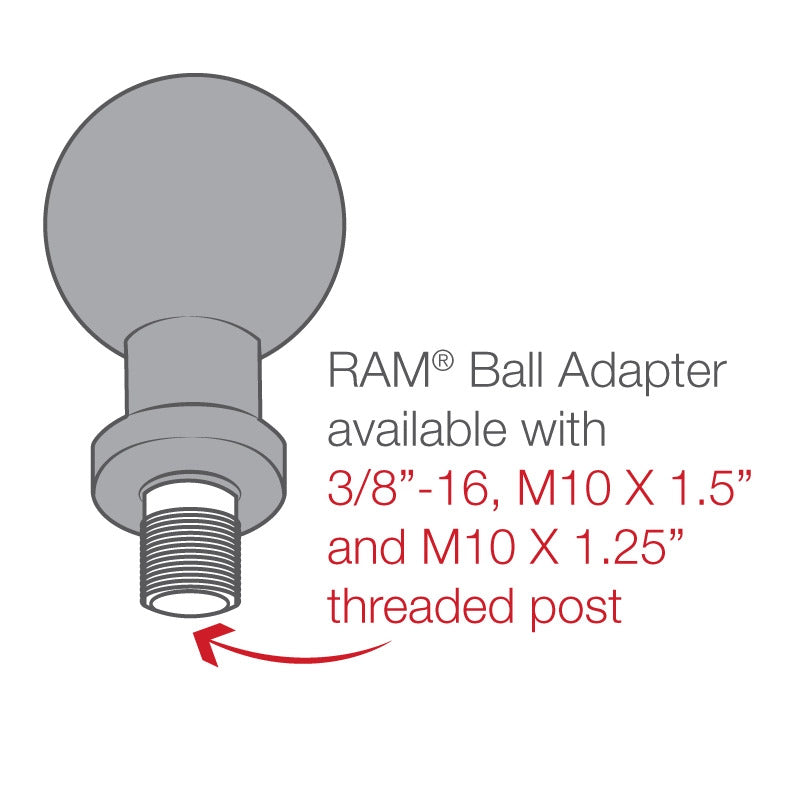

The RAM-B-349U includes a M10 x 1.25 pitch male thread connected to a 1" rubber ball. The threaded hole must contain the following dimensions for this base to fit: M10 1.25 pitch with a 14.5mm flange diameter with a 10.15mm thread length.

THREAD PITCH:

M10-1.25 x 7/16"

BALL/SOCKET SIZE:

B Size (1")

WEIGHT CAPACITY:

• Standard Use: 2 lbs
• Heavy-Duty Use: 1 lb

MATERIALS:

Marine-grade aluminum
