RAM Motorcycle Handlebar Clamp Base with M8 Bolts
RAM Motorcycle Handlebar Clamp Base with M8 Bolts - Image 2
RAM Motorcycle Handlebar Clamp Base with M8 Bolts - Image 3
RAM Motorcycle Handlebar Clamp Base with M8 Bolts - Image 4
RAM Motorcycle Handlebar Clamp Base with M8 Bolts - Image 5
RAM Motorcycle Handlebar Clamp Base with M8 Bolts - Image 6

RAM Motorcycle Handlebar Clamp Base with M8 Bolts

RAM Mounts

$27.00

In stock

Mounting base: clamps onto a bar or rail. Has a B size (1") ball; add a B size arm and holder to complete the mount.

RAM ball size guide

The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.

SizeBall diameterHolds up toBest for
A9/16" (14 mm)0.45 kgSmall cameras, action cams, remotes
B1" (25 mm)0.9 kgPhones, GPS units, small tablets. The most common size.
C1.5" (38 mm)1.8 kgTablets, small monitors, rugged devices
D2.25" (57 mm)2.7 kgLarge displays and laptops
E3.38" (86 mm)6.8 kgHeavy monitors and equipment

Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.

Need an arm and holder for this? Complete your mount ↓

Not sure this fits your setup?Tell us your device and where you are mounting it. The RAM® Mount Builder shows every mount that fits.Find my mount

Complete your mount

A RAM mount is three parts: a base that attaches to your vehicle or surface, a socket arm that connects the balls, and a holder for your device. All B size parts below fit together. Tick one of each, then add them in one go.

Base

Arm

Holder

SKU RAM-B-367U Category
Overview

Overview

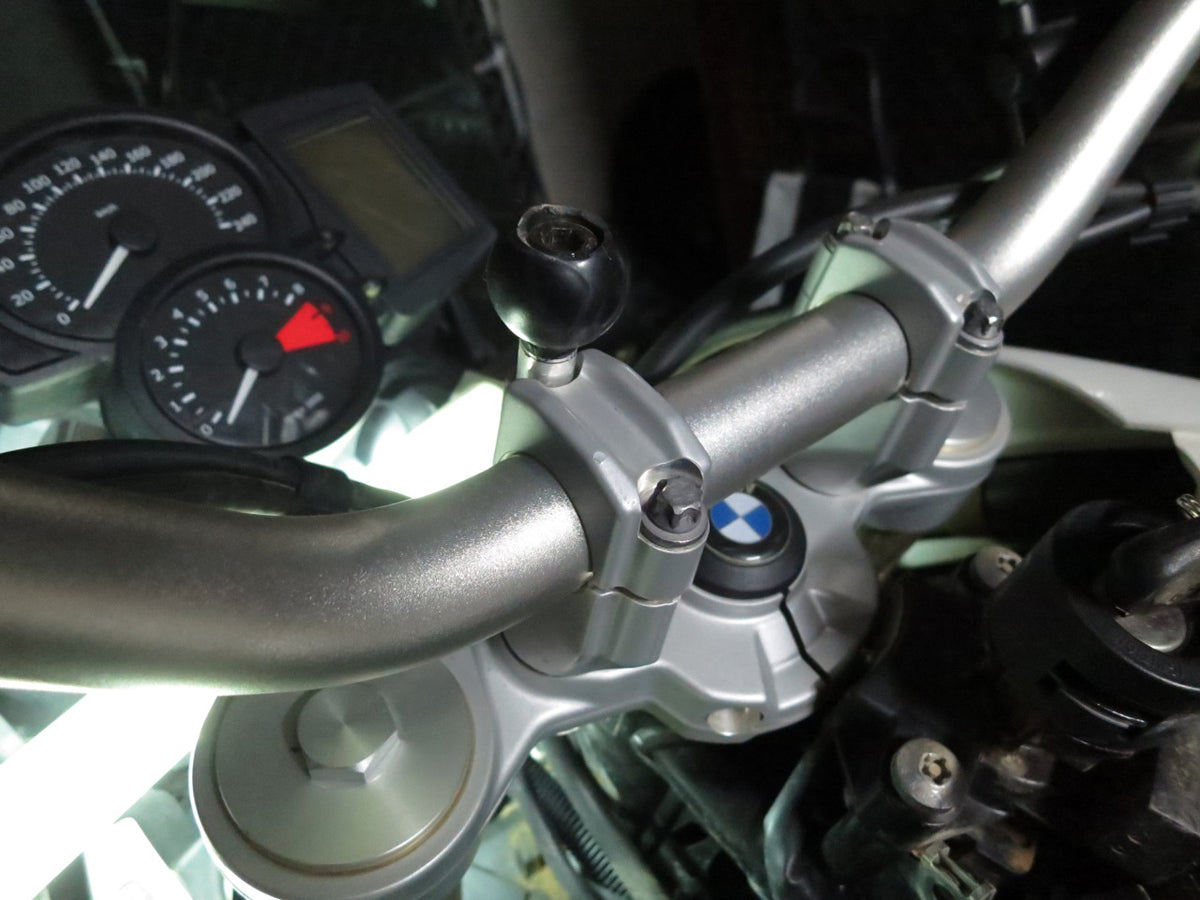

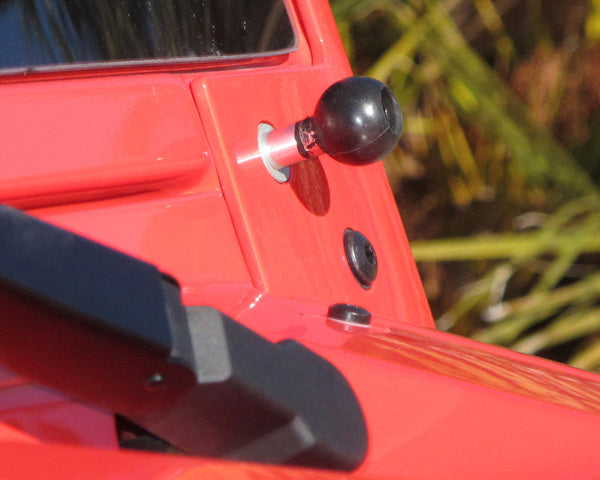

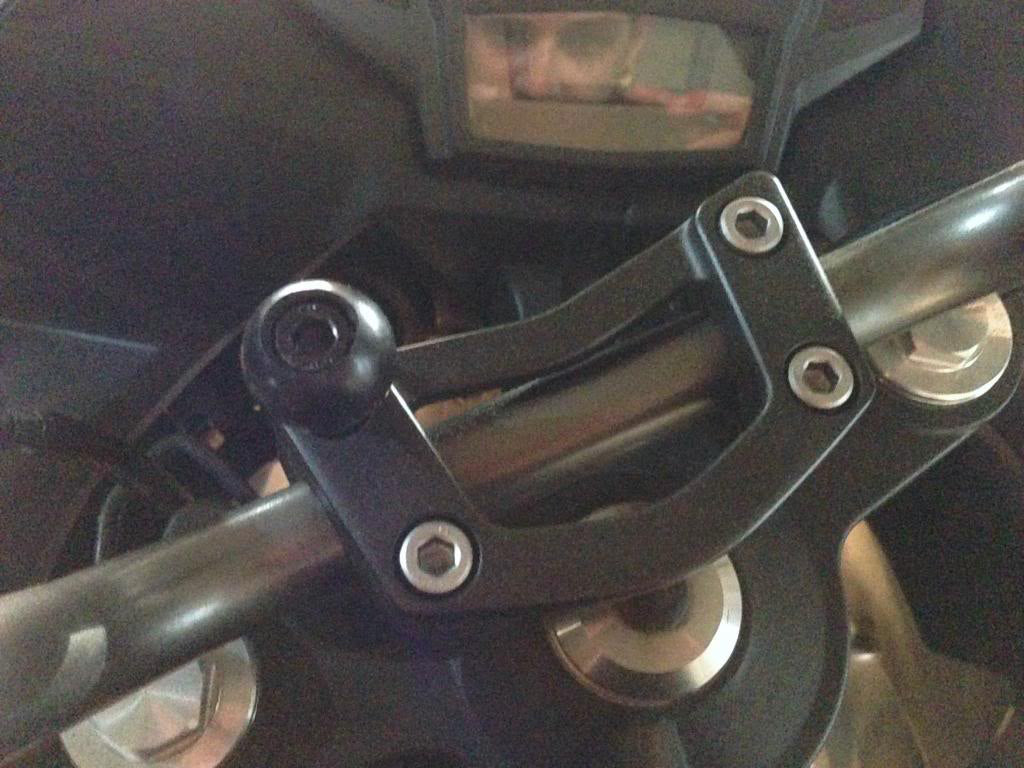

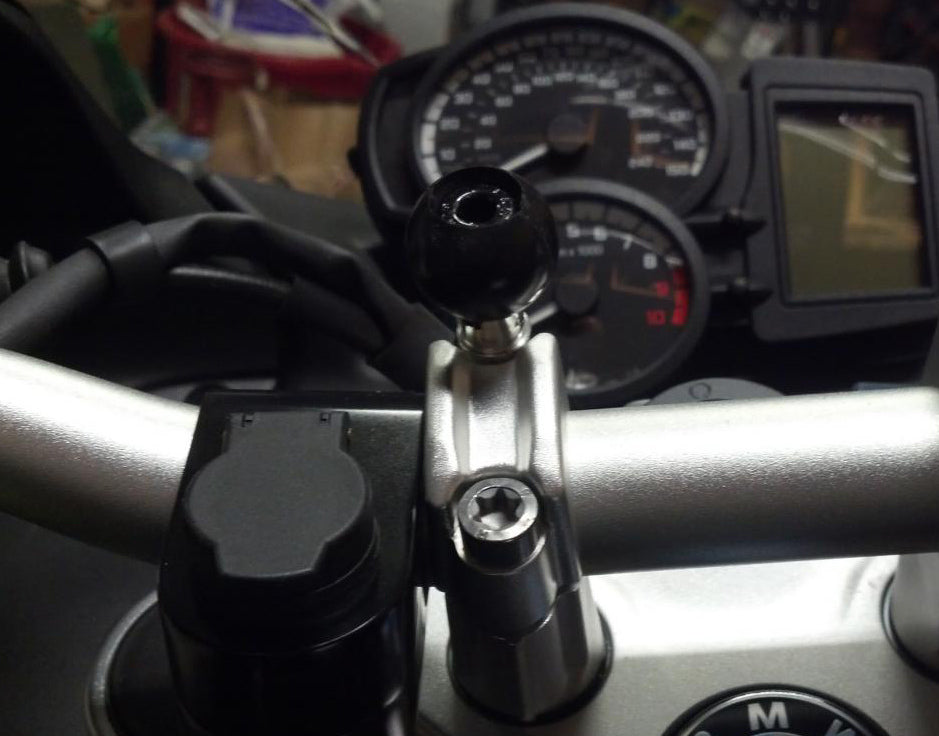

For M8 handlebar bolts, the RAM-B-367U motorcycle handlebar base will replace the existing bolt with a 1" B size ball. This rubber ball base provides shock and vibration damping, and is compatible with a wide variety of B size RAM® double socket arms and device holders. The RAM-B-367U motorcycle handlebar base will work with any motorcycle that features an 8mm bolt or smaller on its structure. A smaller bolt can be used, though the load capacity decreases with the bolt size.

Features

  • Includes rubber ball, M8 x 55 bolt, M8 x 60 bolt, M8 x 65 bolt (1.25 thread pitch)
  • Compatible with any motorcycle M8 threaded bolt; ball base allows for connection to any B size RAM® double socket arm
  • Made of marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Specs

Hardware Included

(1) M8 x 55mm Socket Head Cap Screw
(1) M8 x 60mm Socket Head Cap Screw
(1) M8 x 65mm Socket Head Cap Screw

Ball Size

B Size (1")

Weight Capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials

Marine-grade aluminum

Packaging Type

Poly Bag
