RAM Tough-Wedge Base with Ball

Name: RAM Tough-Wedge Base with Ball
Brand: RAM Mounts
SKU: RAM-B-407U
Availability: InStock

$126.00

In stock

Mounting base: screws or bolts down (AMPS hole pattern). Has a B size (1") ball; add a B size arm and holder to complete the mount.

RAM ball size guide

The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.

Size	Ball diameter	Holds up to	Best for
A	9/16" (14 mm)	0.45 kg	Small cameras, action cams, remotes
B	1" (25 mm)	0.9 kg	Phones, GPS units, small tablets. The most common size.
C	1.5" (38 mm)	1.8 kg	Tablets, small monitors, rugged devices
D	2.25" (57 mm)	2.7 kg	Large displays and laptops
E	3.38" (86 mm)	6.8 kg	Heavy monitors and equipment

Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.

Need an arm and holder for this? Complete your mount ↓

SKU RAM-B-407U Categories Car & Truck Mounts, Mobile Phone Mounts, Tablet Mounts

Overview

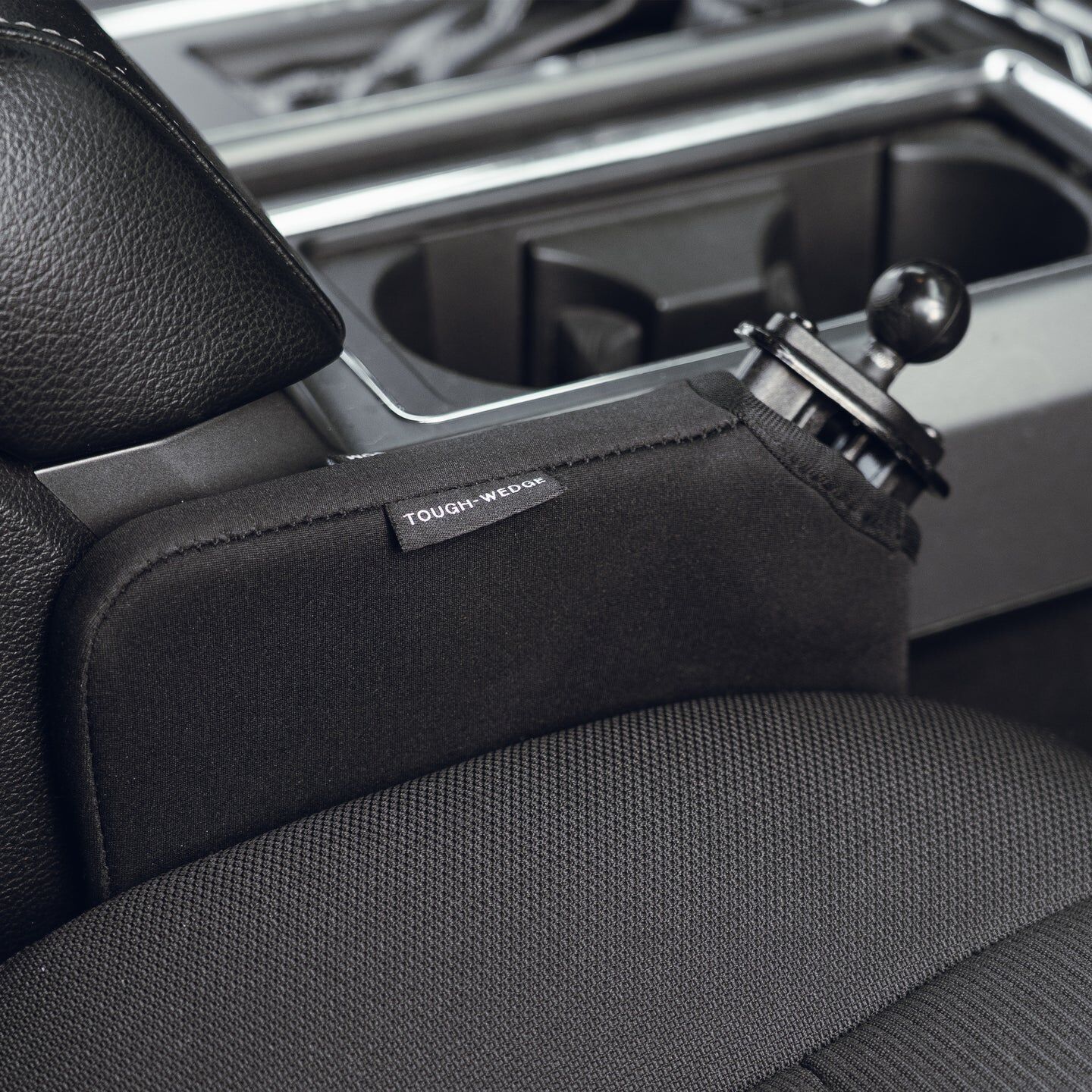

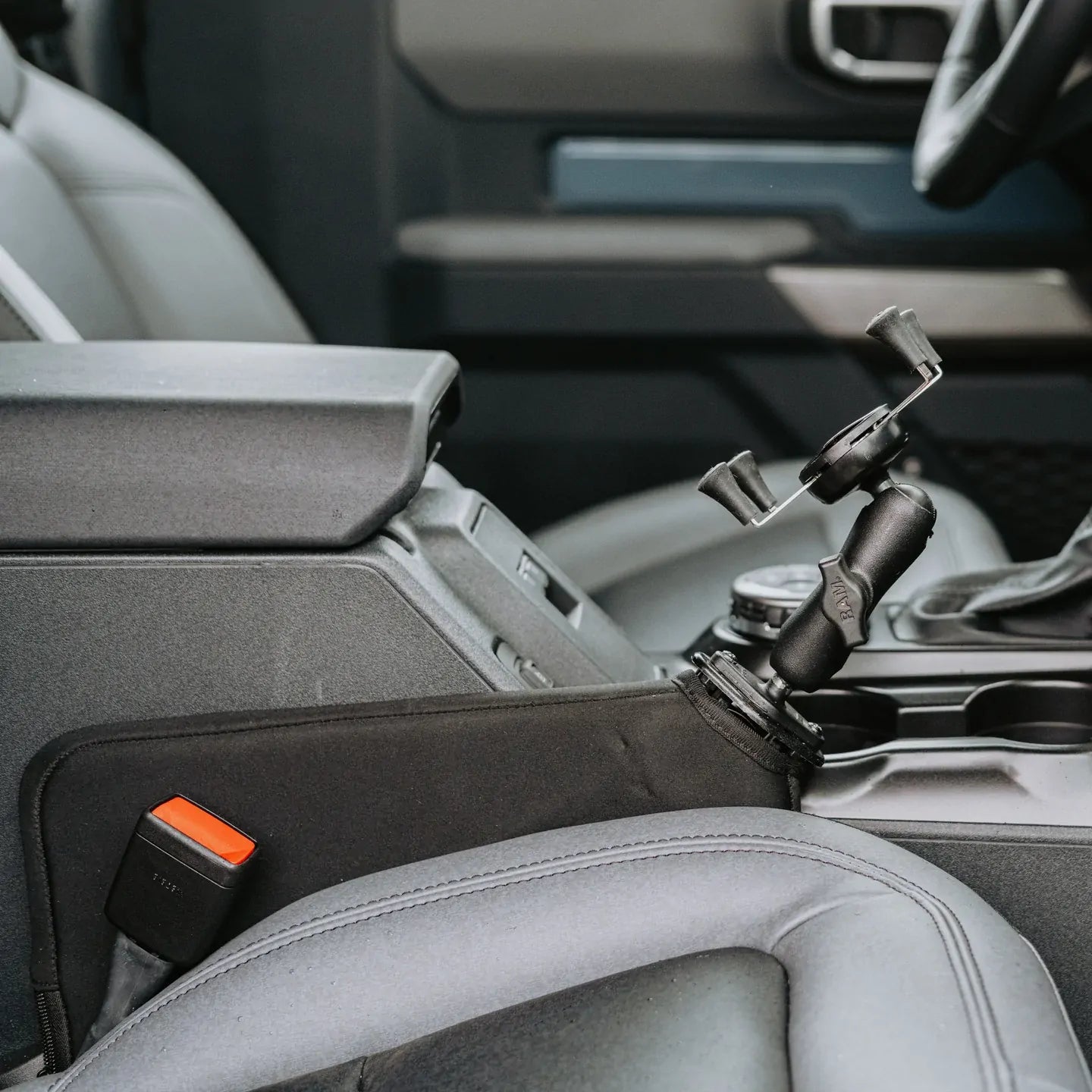

The Tough-Wedge™ is a seat wedge mount that fits in the gap between the vehicle seat and center console; allowing easy access and operation of your mobile device. The Tough-Wedge™ can also be used for back-seat applications, inserted into the pockets located on the back of the front seats. For capturing video on the go, place the Tough-Wedge™ in your backpack with a RAM camera mount. The included diamond adapter contains the industry standard AMPS hole pattern that allows attachment to a variety of RAM mounts. Hardware included to attach the Tough-Wedge™ to the mount. The 1" diamond ball base is compatible with all RAM-B size single and double socket arms.

Specs
