RAM Twist-Lock Triple Suction Cup Double Ball Base
RAM Twist-Lock Triple Suction Cup Double Ball Base - Image 2
RAM Twist-Lock Triple Suction Cup Double Ball Base - Image 3
RAM Twist-Lock Triple Suction Cup Double Ball Base - Image 4

RAM Twist-Lock Triple Suction Cup Double Ball Base

RAM Mounts

$176.00

In stock

Mounting base: suction cup for glass or a smooth dash, 84 mm cup. Has a B size (1") ball; add a B size arm and holder to complete the mount.

RAM ball size guide

The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.

SizeBall diameterHolds up toBest for
A9/16" (14 mm)0.45 kgSmall cameras, action cams, remotes
B1" (25 mm)0.9 kgPhones, GPS units, small tablets. The most common size.
C1.5" (38 mm)1.8 kgTablets, small monitors, rugged devices
D2.25" (57 mm)2.7 kgLarge displays and laptops
E3.38" (86 mm)6.8 kgHeavy monitors and equipment

Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.

Need an arm and holder for this? Complete your mount ↓

Not sure this fits your setup?Tell us your device and where you are mounting it. The RAM® Mount Builder shows every mount that fits.Find my mount

Complete your mount

A RAM mount is three parts: a base that attaches to your vehicle or surface, a socket arm that connects the balls, and a holder for your device. All B size parts below fit together. Tick one of each, then add them in one go.

Base

Arm

Holder

SKU RAP-B-217-365-224-1U Categories ,
Overview

Overview

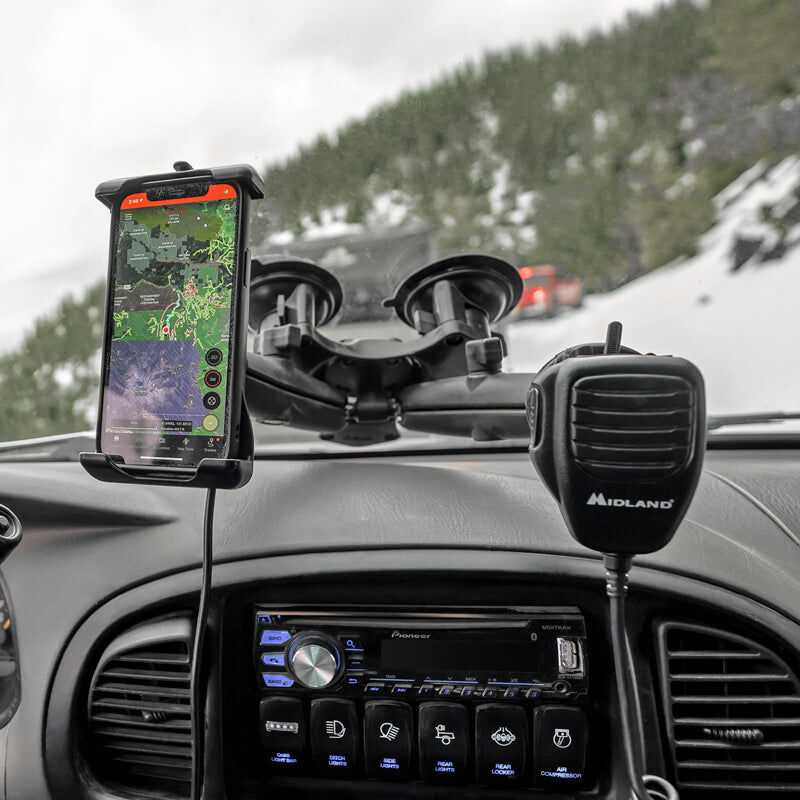

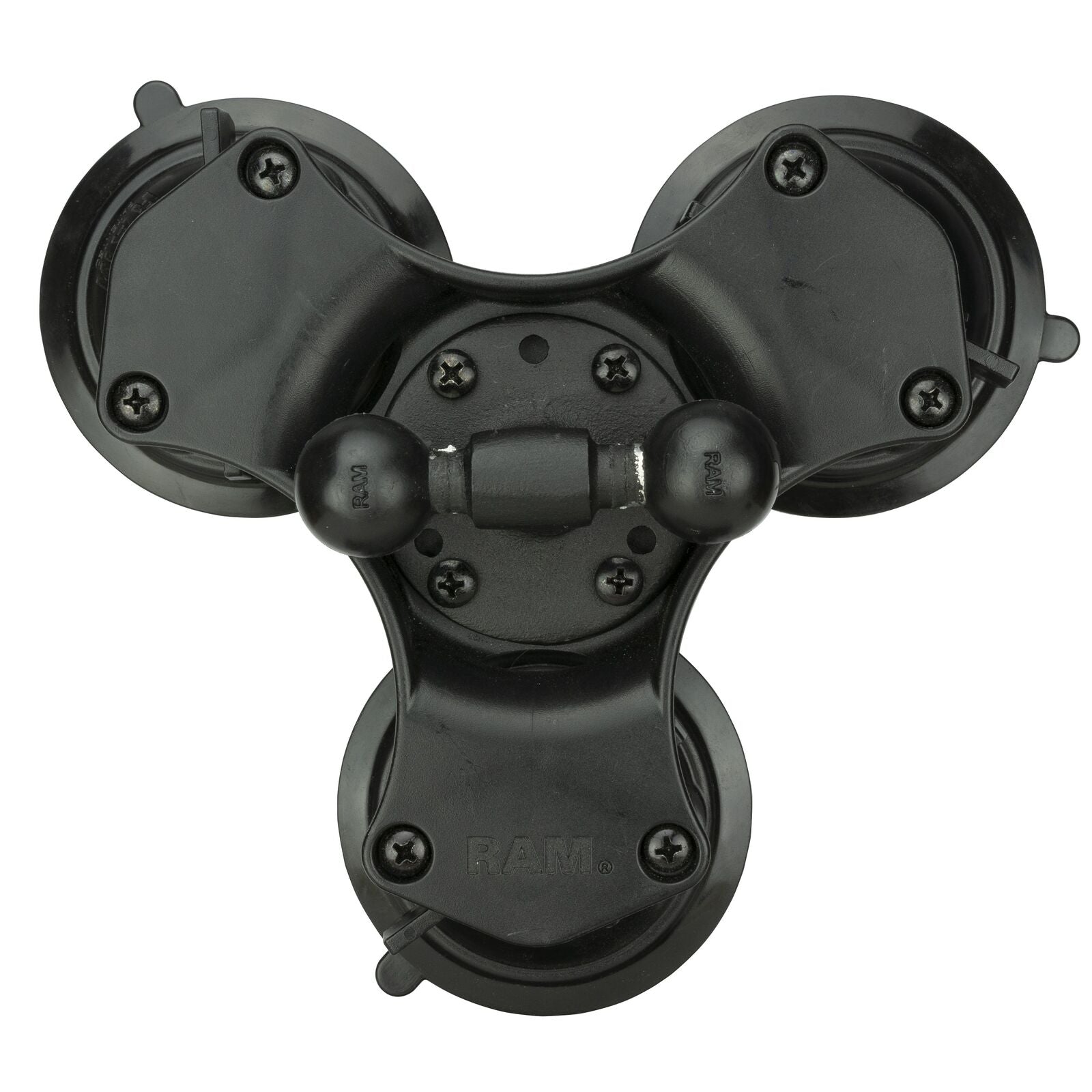

The RAM® Twist-Lock™ Triple Suction Cup with double ball adapter consists of a 2.5" round ball base with a double 1" diameter B size RAM® ball adapter, and a triple suction cup base designed for the most rugged environments. With three 3.3" diameter suction cup bases at each end, this suction cup base can be attached to any non-porous surface, like a windshield, with confidence. Take advantage of the RAM® double ball adapter by attaching two device mounts to one base up to 4 lbs total; ideal for vehicles such as side by sides, overland vehicles, golf carts and more. Customize your device mount with various B size socket arm lengths to achieve your ideal configuration on the road, or off-road.

Features

  • RAM® Twist-Lock™ triple suction cup base is ideal for windshields and other non-porous surfaces
  • Includes round base with double 1" diameter B size RAM® ball adapter that allows for mounting two small devices off one base; ball and socket technology allows for near-infinite adjustability
  • Supports device configurations up to 4 lbs; ideal for mounting a phone, GoPro, GPS/satellite tracker, handheld radio and more
  • Backed by a lifetime warranty*

Specs

Hardware Included

Assembly Hardware

Suction Size

(3) 3.3" Diameter Bases, Total Width 7.95"

Ball Size

B Size (1")

Weight Capacity

Standard Use: 2 lbs (per ball)
Heavy-Duty Use: 1 lb (per ball)

Materials

Marine-grade aluminum
High strength composite

Packaging Type

Poly Bag

Weight

0.96 lb

Additional Information

*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
