RAM Tough-Strap Handlebar Ball Base

RAM Mounts

$49.00

In stock

Mounting base: clamps onto a bar or rail, 32–35 mm diameter. Has a B size (1") ball; add a B size arm and holder to complete the mount.

RAM ball size guide

The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.

SizeBall diameterHolds up toBest for
A9/16" (14 mm)0.45 kgSmall cameras, action cams, remotes
B1" (25 mm)0.9 kgPhones, GPS units, small tablets. The most common size.
C1.5" (38 mm)1.8 kgTablets, small monitors, rugged devices
D2.25" (57 mm)2.7 kgLarge displays and laptops
E3.38" (86 mm)6.8 kgHeavy monitors and equipment

Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.

Need an arm and holder for this? Complete your mount ↓

Not sure this fits your setup?Tell us your device and where you are mounting it. The RAM® Mount Builder shows every mount that fits.Find my mount

Complete your mount

A RAM mount is three parts: a base that attaches to your vehicle or surface, a socket arm that connects the balls, and a holder for your device. All B size parts below fit together. Tick one of each, then add them in one go.

Base

Arm

Holder

SKU RAP-B-460U Categories ,
Overview

Overview

The RAM® Tough-Strap™ is lowest profile rugged mounting solution for any bike or motorcycle handlebars. With two different size straps, easily install the RAM® Tough-Strap™ on any mountain bike, road bike or e-bike with a simple twist of a knob. This RAM® Tough-Strap™ Handlebar Mount includes a B size ball base so you can attach any RAM® B size socket arm and your desired device holder to complete your solution. The long strap is used for bar diameters ranging from 1.25"-1.38" while the short strap is used for diameters ranging from 0.875"-1". Utilize the extra rubber strip to cut down to the diameter range of 1"-1.125" for a more custom fit. Take the RAM® Tough-Strap™ on your next adventure on and off the road.

Features

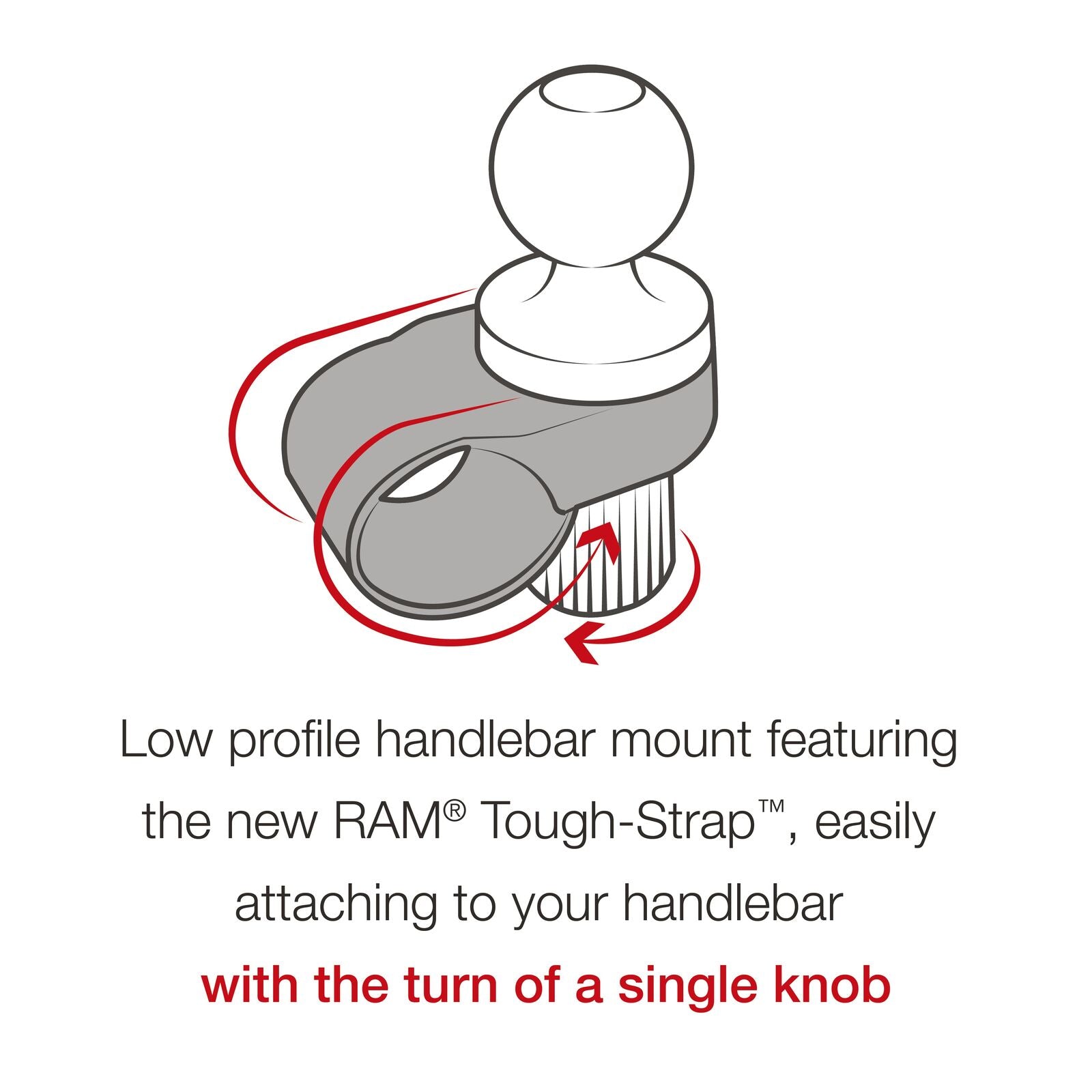

  • Low profile handlebar mount featuring the new RAM® Tough-Strap™, easily attaching to your handlebar with the turn of a single knob
  • Includes two different strap sizes for handlebars; Long strap ranges from 1.25"-1.38" diameter and small strap ranges from 0.875"-1" diameter, with an extra rubber strap for a more custom fit ranging from 1"-1.25"
  • Attach any RAM® B size socket arm and desired device holder for an ideal handlebar mount for all bike types, including mountain bikes, road bikes and e-bikes
  • Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Specs

Hardware Included

(1) #10-24 x 2.5" Hex Bolt
(1) Long Strap
(1) Short Strap
(1) Long Rubber Strip
(1) Short Rubber Strip
(1) Tightening Knob

Clamp Range

0.875" - 1.38"

Ball Size

B Size (1")

Weight Capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials

High strength composite

Packaging Type

Poly Bag

Weight

0.22 lb
