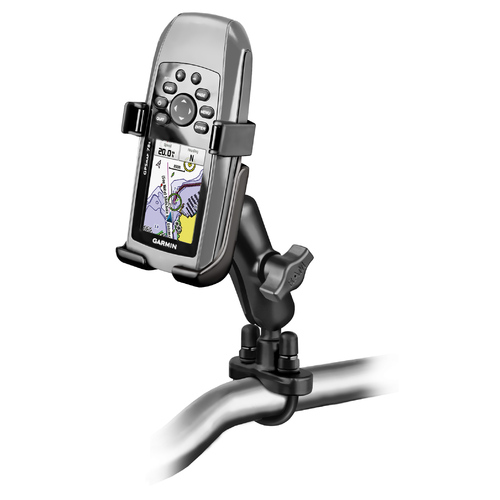

The RAM-B-149Z-GA40U consists of a double socket arm, zinc coated u-bolt base, diamond adapter base and custom high strength composite cradle for the Garmin GPSMAP^® 78 series. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle GPSMAP^® mount to your optimum viewing position. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter.



HARDWARE INCLUDED:

• Assembly Hardware
  • (1) 1/4"-20 U-Bolt for .5" - 1" Rails
  • (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
  • (2) 1/4"-20 Nylock Nuts
  • (2) Rubber Caps
  • (1) U-Bolt Spacer

CLAMP RANGE: .5" - 1.25"

SOCKET-TO-SOCKET LENGTH: 3"

BALL/SOCKET SIZE: B Size (1")

WEIGHT CAPACITY:

• Standard Use: 2 lbs
• Heavy-Duty Use: 1 lb
