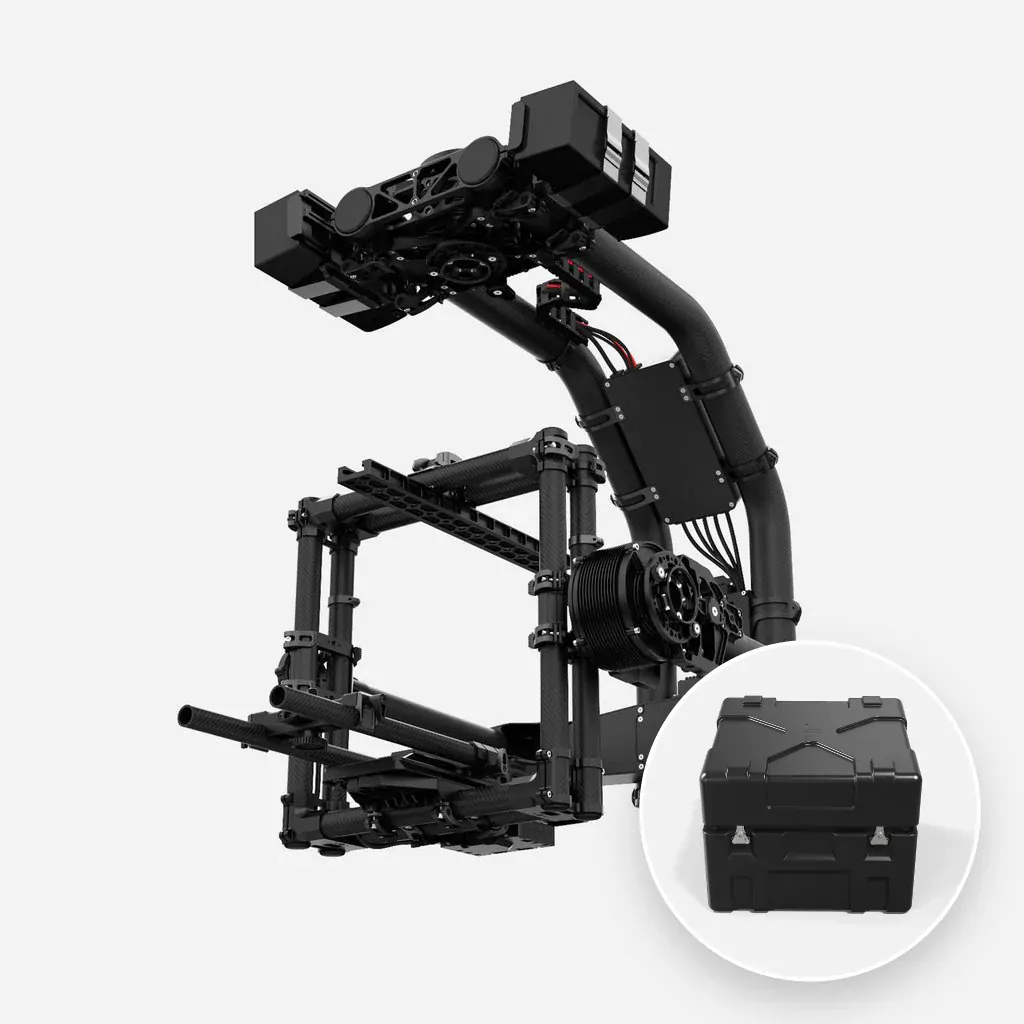

Mōvi XL with Case

The Freefly Systems Mōvi XL with Case s a lightweight, portable system that allows users to capture stable imagery in the most demanding environments.



Mōvi hit the gym! We took everything great about the Mōvi Pro and added some serious horsepower for the world's biggest cameras. Mōvi XL is a lightweight, portable system that allows users to capture stable imagery in the most demanding environments.

Features

  • Custom in house designed high torque direct drive motors
  • Axis locks for easy ground handling / balancing
  • Custom motor drives with high resolution encoders
  • Capable of performing at extreme speeds (75+mph)
  • Accessory power
  • Integrate Focus / Iris / Zoom motor drivers
  • Integrated control of Red cameras via RCP (with optional RCP Cable)
  • 3+ hour runtime powering gimbal and camera with onboard batteries (sold separately)
  • Completely wireless operation (power, video, control) allows for 1 minute changes from camera car to crane to cable cam
  • Underslung or overslung mounting
  • Compatible with Freefly Ecosystem - Mōvi ControllerMIMIC, Pilot
  • 50lb max payload
  • Capable of traveling as excess baggage on airlines
  • Quick Release system (Optional)
  • Mōvi XL to Mitchell Adapter (Optional)
  • Travel case with custom cut foam insert
  • Modular construction
  • Internal Wiring
  • 2 second boot time
  • Sub-10 second full system autotune (no more manual tuning!)
  • Integrated screen and menu system
  • iOS and Android App for control, configuration, and system feedback



IN THE BOX



  • Qty 1 - Mōvi XL Travel Case
    • Qty 1 - Mōvi XL Gimbal
    • Qty 1 - XL Top Rail
    • Qty 1 - Mōvi XL Accessory Bag
      • Qty 3 - Fuse Mini 297 32V 30A
      • Qty 2 - Fuse Mini 297 32V 20A
      • Qty 1 - Fuse Mini 297 32V 10A
      • Qty 1 - T-Handle Hex Key - 4 mm
      • Qty 8 - Bolt M4 x 10 SHCS
      • Qty 4 - Bolt ¼-20 x ½"
      • Qty 8 - 1/4-20 x 0.5 SHCS
      • Qty 1 - Aux UART to FRX
      • Qty 1 - Harness Hub to TSU Power
      • Qty 1 - 2.0MM Assy - Custom Hex Driver
      • Qty 1 - 2.5MM Assy - Custom Hex Driver
      • Qty 1 - 3.0MM Assy - Custom Hex Driver

Not included, but may be pictured in product images for reference:

  • Dovetail Plate
  • Camera Plate
  • Lens Support
  • 19mm Rods
  • Batteries
  • Weight (w/o batteries): 25.26lb
  • Camera cage dimensions: 399 x 255 x 289mm (L*W*H)
  • Maximum payload: 50lb (22.67Kg)
SKU 950-00075
Brand Freefly
Shipping Weight 37.0000kg
Shipping Width 1.200m
Shipping Height 0.700m
Shipping Length 1.200m
Shipping Cubic 1.008000000m3
