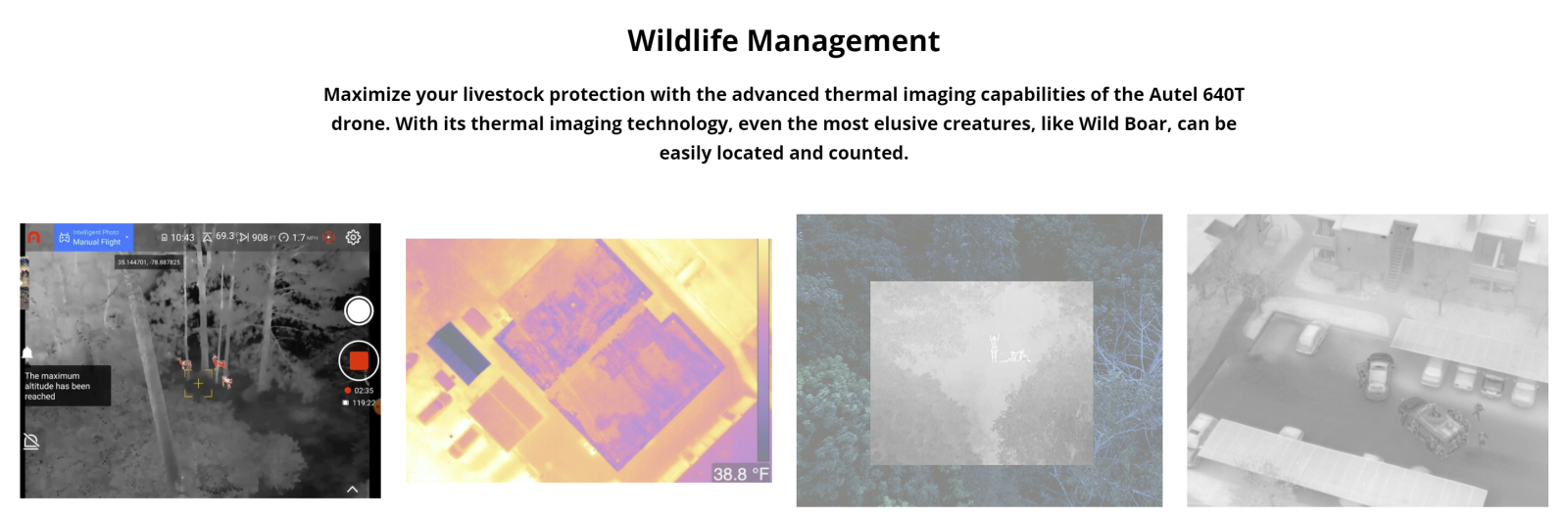

• Dual Camera design with a thermal imaging sensor
  • Thermal imaging sensor has a resolution of up to 640x512
  • Support 10 Thermal color palettes, 30Hz refresh rate and Picture-in-Picture mode
  • 13mm lens and 16x digital zoom capable of recognizing subjects at up to 100m
  • Radiometric Temperature Detection
  • 0.8" CMOS sensor capable of 50 MP photos
  • 360° obstacle avoidance with 19 groups of sensors
  • 7.9" Smart Controller V3
  • Dynamic Track 2.1
  • Industry-leading 38 minutes flight time
  • Transmission range of 15KM







Aircraft

Takeoff weight 1150 g
Max takeoff weight 1999 g
Size(L*W*H) 230*130*108mm（folded）
457*558*108mm（unfolded）
Wheelbase 397 mm
Maximum service ceiling altitude 7000 m
Max ascent speed 8 m/s (Ludicrous)
Max descent speed 4 m/s (Ludicrous)
Max horizontal flight speed 20m/s (Ludicrous)
Max flight distance (no wind) 22 km
Max angular velocity 120°/s
Max tilt angle 33° (Ludicrous)
Max flight time  (no wind) 38 min
Max hovering time  (no wind) 33 min
Operating temperature range -10℃ ~ 40℃
Maximum resistance to wind Level 8
Operating frequency 902-928MHz (FCC Only)
2.400-2.4835GHz
5.725-5.850GHz (non-Japan)
5.650-5.755GHz (Japan Only)
Transmission power 900M
FCC/ ISED：≤31dBm
2.4G
FCC/ ISED：≤32dBm
SRRC/CE/MIC/RCM：≤20dBm
5.8G (non-Japan) ; 5.7G (Japan)
FCC/ISED/SRRC/MIC：≤33dBm
CE/ RCM：≤14dBm
Hovering accuracy Vertical: ±0.1 m (when the visual positioning is working normally);
±0.5 m (when GPS works normally)
Horizontal: ±0.3 m (when the visual positioning is working normally);
±1.5 m (when GPS works normally)
GNSS GPS/Beidou/Glonass/Gallieo
Internal storage 8GB
SD storage max. support 256GB (UHS-3 or Class 10)

Gimbal

Gimbal 3-axis stabilization
Mechanical range Tilt: -135° to +45°;
Pan: -100° to +100°
Controllable rotation range Tilt: -90° to +30°;
Pan: -90° to +90°
Max control speed (Tilt) 300°/s
Angular Vibration Range ±0.005°

Remote Controller and Transmission

Operating frequency 902-928MHz (FCC Only)
2.400-2.4835GHz
5.725-5.850GHz (non-Japan)
5.650-5.755GHz (Japan Only)
Transmission power FCC：≤33dBm
CE：≤20dBm@2.4G，≤14dBm@5.8G
SRRC：≤20dBm@2.4G，≤33dBm@5.8G/5.7G
Max Transmission Distance (unobstructed, free of interference) FCC：15km
CE：8km
Display screen 2048x1536 60fps
Battery 5800mAh
Operating time ~3 hours (Max. Brightness)
~4.5 hours (50% Brightness)
Charging time 120 minutes
Internal Storage ROM 128GB



Sensing System



Sensing system type Omnidirectional sensing system
Forward Accurate measurement range: 0.5-18 m
Effective sensing speed: <12m/s
Viewing angle: Horizontal: 60°, Vertical: 80°
Backward Accurate measurement range: 0.5-16 m
Effective sensing speed: <12m/s
Viewing angle: Horizontal: 60°, Vertical: 80°
Upward Accurate measurement range: 0.5-10 m
Effective sensing speed: <5m/s
Viewing angle: Horizontal: 65°, Vertical: 50°
Downward Accurate measurement range: 0.5-10 m
Effective sensing speed: <5m/s
Viewing angle: horizontal: 100°, vertical: 80°
Left and right Accurate measurement range: 0.5-10 m
Effective sensing speed: <5m/s
Viewing angle: horizontal: 65°, vertical: 50°
Operating Environment Forward, Backward and Sides:
Surface with clear pattern and adequate lighting (lux > 15)
Upward:
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.)
Downward:
Surface with clear pattern and adequate lighting (lux > 15)
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.)



Thermal Camera



Sensor Uncooled VOx Microbolometer
Lens FOV H33°V26°
Focal length 13mm
Zoom 1 - 16x
Pixel size 12μm
Wavelength range 8 - 14μm
Temperature range High gain mode: -20° to +150°
Low gain mode: 0° to +550°
Temperature measurement accuracy ±3℃ or ±3% of reading (whichever is greater)
@Environmental temperature-20℃~60℃
Accurate temperature
measurement distance		 2-20 meters
Video resolution 640x512@30fps
Video format MOV / MP4 (Support H.264/H.265)
Camera resolution Infrared mode: 640*512
Picture-in-picture mode: 1920*1080, 1280*720
Photo mode Single shot
Burst shooting: 3/5 frames, 3 is the default
Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s
Photo format JPG (with irg file)



Visible Light Camera



Sensor 1/1.28"(0.8") CMOS; 50M effective pixels
Lens FOV: 85°
35 mm format equivalent focal length: 23 mm
Aperture: f/1.9
Focus range: 0.5 m to infinity (with auto focus)
ISO range Video: 100-64000
Photo: 100-6400
Shutter speed Photo mode: 1/8000 ~ 8s
Other: 1/8000 ~ 1/frame rates
Zoom 1-16x (up to 4x lossless zoom)
Photo mode Single shot/Burst shooting/AEB/Time Lapse/HDR imaging
Maximum photo size 8192*6144（4:3）
4096*3072（4:3）
3840x2160（16:9）
Image Format JPG (default) / DNG / JPG+DNG
Video format MOV / MP4
Video resolution 3840x2160P60/P50/P48/P30/P25/P24
2720x1528P60/P50/P48/P30/P25/P24
1920x1080P60/P50/P48/P30/P25/P24
Max bitrate 120Mbps
Supported file system FAT32/exFAT



Battery



Capacity 7100 mAh
Voltage 11.55 V
Battery type LiPo 3S
Energy 82 Wh
Weight 365 g
Charging temperature range 5℃ to 45℃
Storage temperature and humidity -10~30℃，65±20%RH
Recommended storage temperature 22-28℃
Max charging power 93W
Charging time 90 minutes



Charger

Input 100-240 V, 50/60 Hz, 1.5A
Output 13.2 V ⎓ 5 A
5V⎓3A 9V⎓2A 12V⎓1.5A
Voltage 13.2±0.1V
Rated power

66W







SKU ATLEVOIIDLV3RGD
