Overview

Includes the DJI OM Multifunctional Module and other accessories. When paired with the gimbal, this module enables subject and pet tracking, audio capture, and fill light functions^[1]. Its magnetic design makes it easy to attach and detach, ensuring hassle-free use. The module also supports gesture control^[2], making solo content creation more efficient.

Tips

1. These accessories contain magnets. Keep them away from magnetic cards, IC cards, pacemakers, hard disks, RAM chips, and other objects that are subject to interference.

2. If your phone uses a Lightning port, you will need to purchase the Phone Charging/Audio Recording Cable (USB-C to Lightning) separately.

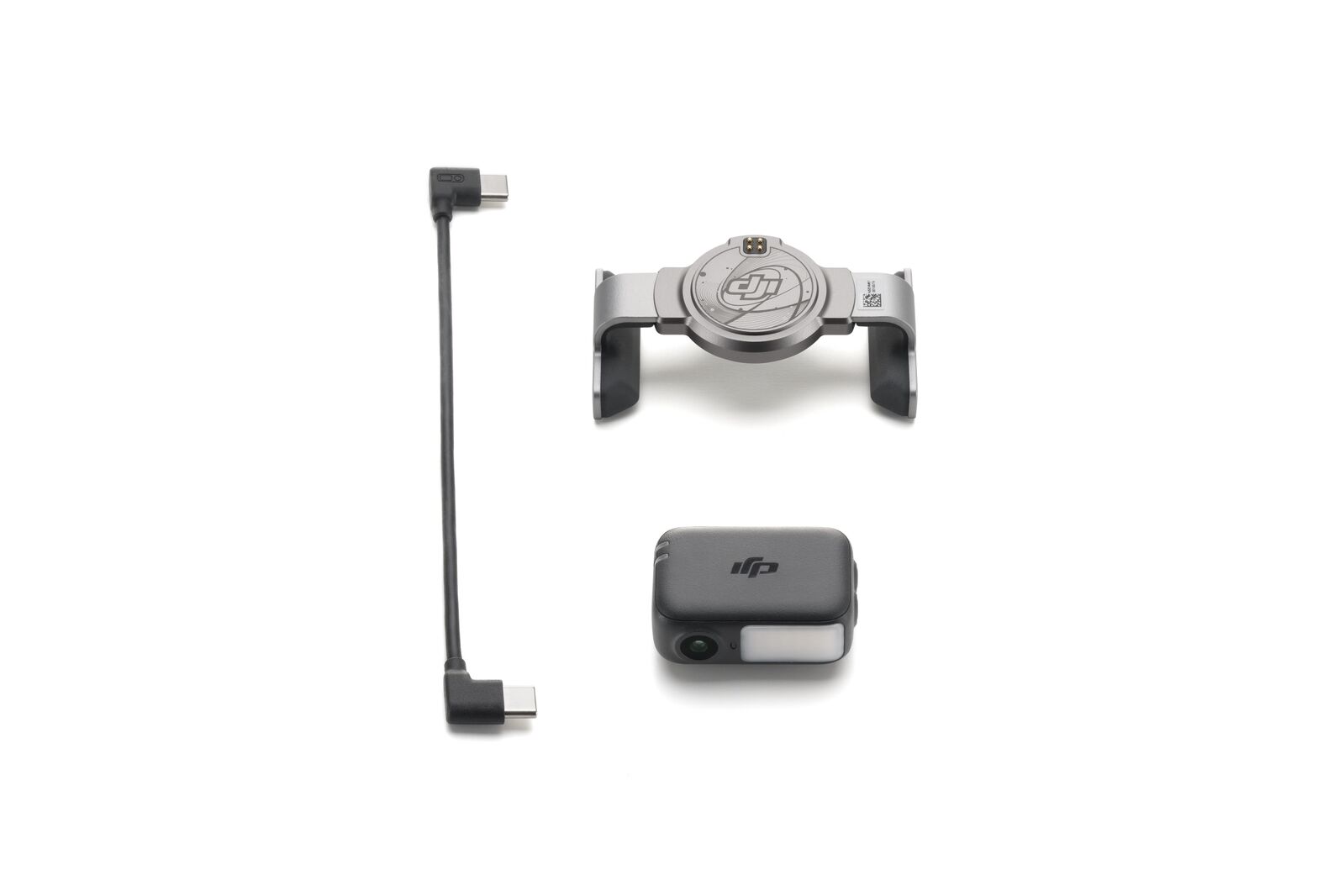

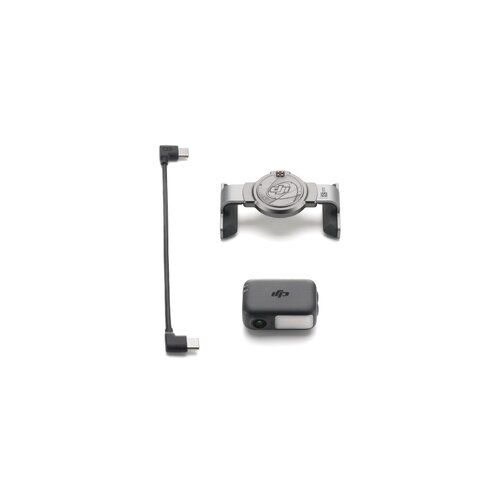

In The Box

DJI OM Multifunctional Module × 1

Magnetic Phone Clamp × 1

Phone Charging/Audio Recording Cable (USB-C to USB-C, 15 cm) × 1

Specifications

DJI OM Multifunctional Module

Weight: Approx. 19 g

GFSK: 2 Mbps

GFSK Transmitter Power (EIRP): <16 dBm

GFSK Operating Frequency: 2.4000-2.4835 GHz

Bluetooth Protocol: Bluetooth 5.3

Bluetooth Transmitter Power (EIRP): <16 dBm

Bluetooth Operating Frequency: 2.4000-2.4835 GHz

Fill Light Illuminance: 40 lux*

* This represents the maximum brightness measured at a distance of 0.6 meters from the subject and should be used for reference only.

Fill Light Color Temperature: 2500-6000 K

Magnetic Phone Clamp

Weight: Approx. 28 g

Compatible Phone Width: 67-84 mm

Compatible Phone Thickness: 6.9-10 mm

Compatible Phone Weight: 170-300 g

Compatibility

• Osmo Mobile 8
• Osmo Mobile 7P
• Osmo Mobile 7
