Take a Closer Look
Overview

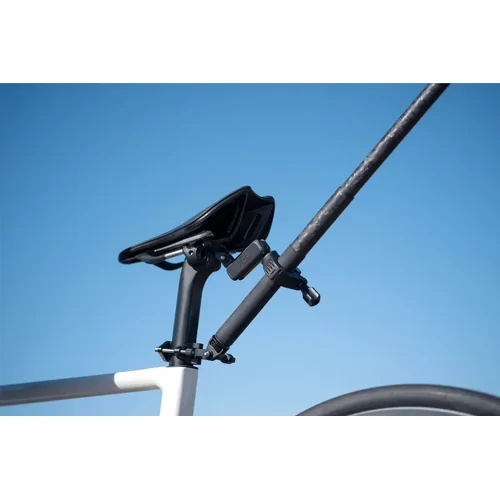

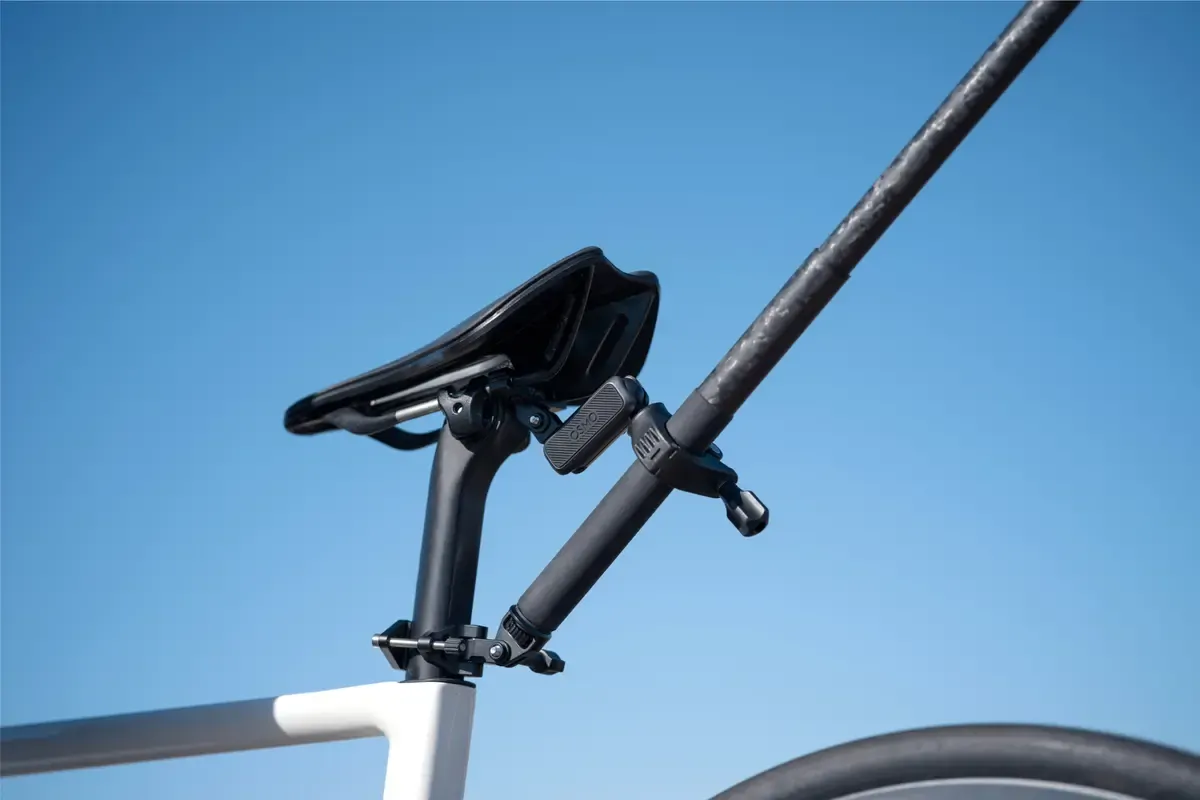

Pair with an invisible selfie stick* to effortlessly capture epic third-person 360° cycling shots. It supports quick angle adjustments for flexible and dynamic shooting perspectives. Dual-end support design, stable and reliable.
* The Osmo 360 Standard Combo does not include an Invisible Selfie Stick, which can be purchased separately.
Tips
1. Before use, carefully check if the camera is securely mounted to prevent it from falling due to prolonged vibration during cycling.
2. When shooting with the seat post, be sure to use the rear selfie stick clamp. Do not fix the selfie stick using only the seat post mount.
3. When shooting from the side rear of the seat post, pay attention to road safety while riding to avoid scraping pedestrians or being hit by other vehicles. When mounted on the side, the selfie stick must not exceed the width of the bicycle handlebars, and the rear extension length must comply with local regulations.
4. For riding safety, the seat post mount is limited to flat road riding, and it is recommended that the riding speed does not exceed 60 km/h. Do not use on bumpy roads such as mountains or muddy terrain. Before riding, be sure to tighten the auxiliary support clamp.
5. It is recommended to use with the invisible selfie stick, not compatible with the Osmo 2.5 m ultra-long carbon fiber selfie stick*.
6. Strictly follow the instructions for using accessories, and do not modify or change the structure of the accessories.
7. Be sure to understand and comply with the road safety traffic laws and regulations in your area. If there are special regulations regarding the use and installation of seat bows and mounts in local laws and regulations, strictly follow the relevant requirements for use and installation.
In The Box
Osmo Action Bike Seat Rail Mount × 1
Bike Seatpost Clamp Adapter Mount × 1
Bike Seatpost Large-Curved Clamp Bracket × 1
Bike Seatpost Small-Curved Clamp Bracket × 1
Bike Rear Selfie Stick Fixing Clamp × 1
M4 Screw × 2
M5 Long Screw × 2
M5 Short Screw × 2
Osmo Locking Screw × 2
1/4'' Thread to Two-Prong Adjustable Adapter × 1
Bike Seatpost Anti-Scratch Silicone Ring × 2
Hex Key × 2
Screw Locking Wrench × 1
Specifications
Osmo Action Bike Seat Rail Mount
Dimensions: Approx. 63.1 × 32.5 × 19.7 mm (L × W × H)
Weight: Approx. 47.0 g
Bike Seatpost Clamp Adapter Mount
Dimensions: Approx. 51.5 × 41.9 × 28.0 mm (L × W × H)
Weight: Approx. 30.0 g
Bike Seatpost Large Curved Clamp Bracket
Dimensions: Approx. 51.5 × 28.0 × 8.2 mm (L × W × H)
Weight: Approx. 15.0 g
Bike Seatpost Small Curved Clamp Bracket
Dimensions: Approx. 51.5 × 28.0 × 11.6 mm (L × W × H)
Weight: Approx. 18.2 g
Bike Rear Selfie Stick Fixing Clamp
Dimensions: Approx. 176.5 × 59.6 × 35.0 mm (L × W × H)
Weight: Approx. 137.9 g
Osmo Locking Screw
Dimensions: Approx. 55.6 × 23.0 × 13.3 mm (L × W × H)
Weight: Approx. 20.7 g
1/4'' Thread to Two-Prong Adjustable Adapter
Dimensions: Approx. 38.5 × 28.0 × 28.0 mm (L × W × H)
Weight: Approx. 21.6 g
Screw Locking Wrench
Dimensions: Approx. 96.6 × 52.7 × 15.9 mm (L × W × H)
Weight: Approx. 7.4 g
Compatibility
Osmo 360
