OVERVIEW

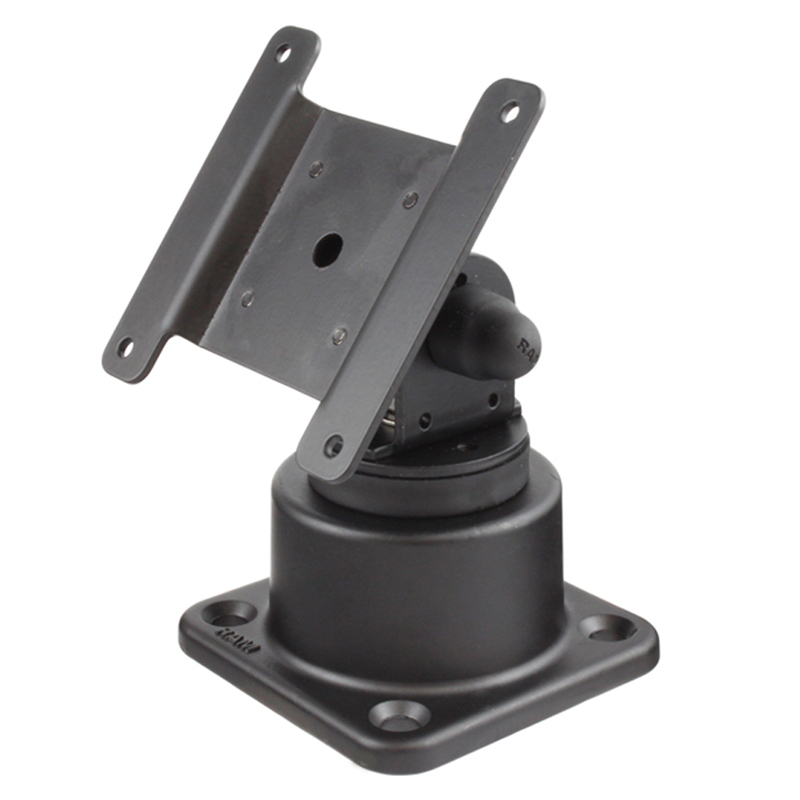

The RAM® Horizontal Swivel Pivot Mount consists of a horizontal mounting base that connects to an adapter plate that rotates 360 degrees and can tilt forward and back.

HOLE PATTERN:

See Drawing

MATERIALS:

Marine-grade aluminum

PACKAGING TYPE:

Box

WEIGHT:

1.9 lbs.



Q&A:



Will this Horizontal Pivot Swivel mount match the holes of your RAM® Remove-A-Pole™ Riser for Vehicle Laptop Mounts?I intend to use the Riser and Pivot combination to support a 3D printed Stalink Mini flat mount on my ocean race yacht. This combination allows me to orientate the Starlink Mini depending on heel angle when sailing, whilst enabling removal of the Starlink Mini when not in use to minimise UV impact (Australia).The Pivot mount plate will bolt to the underside of the Starlink Flat mount centered 150mm in from one end.Starlink flat mount 3D printed plastic W 330mm x L 380mm x H 45mmStarlink Antenna 1.25lbs



- Yes, the holes on the bottom of this swivel pivot mount will match the holes on the RAM-VB-REM1.



Will this mount attach to the Ram Tab-Tite holder for the 10.5” Samsung tablet?

This has a 75x75mm VESA mount on the back and will not connect directly to the Tab-Tite holder.

Hi there, we are interested in purchasing this horizontal swivel mount to install into a Road Rail vehicle, i.e. a pick up truck retrofitted with rail modules to allow on track travel. Question, is the swivel mount capable of maintaining the screen in a steady position during on rail and off road travel?

Yes, the RAM-109H-PV2U RAM Horiztonal Swivel Pivot Mount can be locked into position and will be a solid option for mounting a screen or monitor under the conditions you described.

SKU RAM-109H-PV2
Barcode # 793442932601
Brand Ram Mounts
Shipping Weight 1.2000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m
Shipping Cubic 0.008000000m3
