OVERVIEW

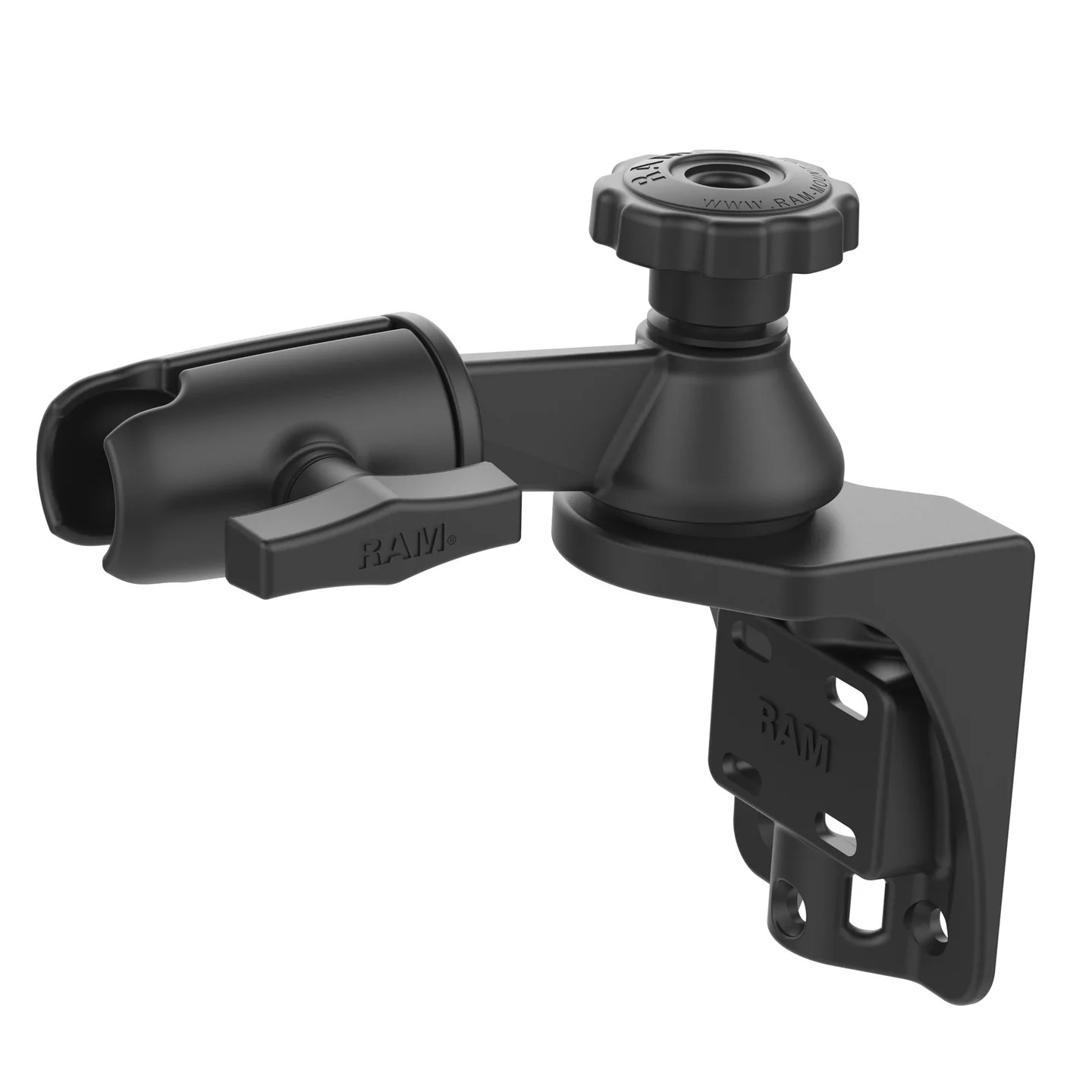

The RAM RAM-109VS-4U consists of a single swing arm mount with 1.5" socket, 6" long straight swing arm that is mounted on a vertical surface base. The connection between the swing arm and the base is a bolt pivot point. The open socket end will accept mounting bases with a RAM 1.5" diameter ball, enabling a versatile RAM ball and socket system. The bolt pivoting point allows a complete 360 degree rotation and the ball and socket system allows a 180 degree vertical pivot with a 360 degree rotation.

HOLE PATTERN

See Drawing

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum
