FEATURES

  • .5" NPT female thread connects to any .5" NPT male thread
  • Included C size 1.5" RAM® rubber ball allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

OVERVIEW

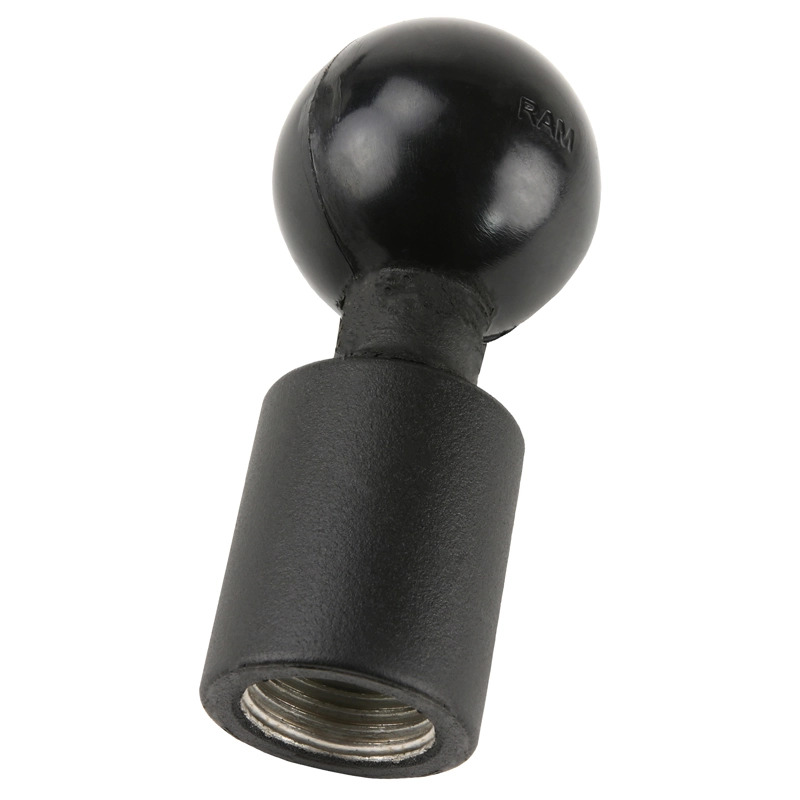

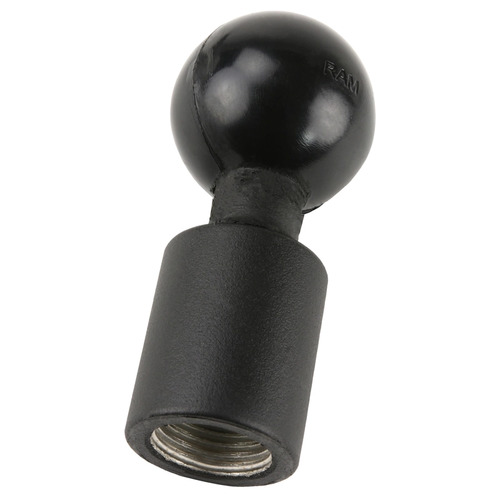

The RAM-218-1U consists of a 1.5" ball and 0.5" NPT female thread. This part connects to any 0.5" NPT male thread, including RAM-PA82xx rigid arm series mounts.

THREAD PITCH

1/2" NPT

BALL/SOCKET SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS

Marine-grade aluminum



ADDITIONAL INFORMATION

  • Note:NPT (National Pipe Thread) is a standard used in joining pipes and fittings that have a tapered thread. As a general rule, the NPT inch size is the inside diameter of the threaded pipe and is known as the NPS (Nominal Pipe Size). The outer diameter (OD) of the pipe is shown in the table below.

NPT Size (NPS) Pipe Outer Dia. (OD) Threads per inch
1/4" 0.540" 18
1/2" 0.840" 14
1" 1.315" 11.5
SKU RAM-218-1U
Barcode # 793442021817FEATURES .5" NPT female thread connects to any .5" NPT male thread Included C size 1.5"
Brand RAM Mounts
Shipping Weight 0.2000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m
Shipping Cubic 0.008000000m3
