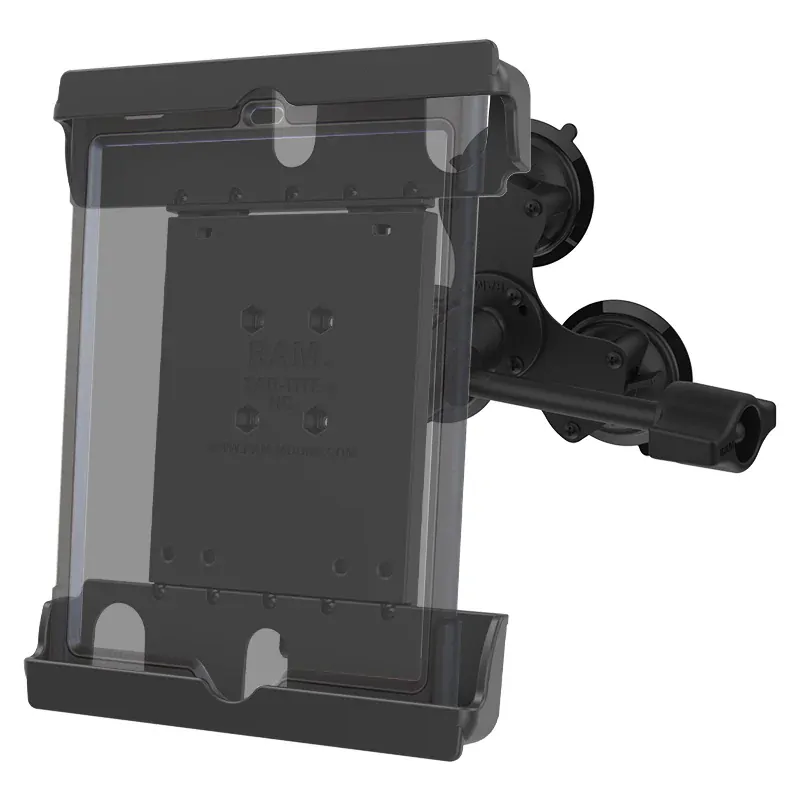

RAM Tab-Tite with RAM Twist-Lock Triple Suction for 9"-10.5" Tablets

Overview

The RAM-333-224-1-ALA1-TAB20U is a triple suction cup base for commercial aviation EFB iPad AIR 2. The triple suction cup base offers redundancy in the cockpit for a secure mount for the demanding environment of the modern flight deck. Designed to be used in either the Captain of the FO seat. This mount gives the operator the ability to adjust easily with the aviation designed double socket arm and the extended knob that is always in the sight of the operator.



Features

• Spring-loaded holder secures 9" tablets with heavy-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices
• Includes RAM^® Twist-Lock^™ triple suction cup base ideal for windshields and other nonporous surfaces
• Made of high-strength composites for durability and reliability in the most demanding environments
• Backed by a lifetime warranty*

Specifications:

hardware included:

Assembly Hardware

holder dimensions:

Height Range: 9.5" - 12.125"
Width Range: 6.55" - 7.43"
Depth Range: .3" - .875"

suction size:

(3) 3.3" Diameter Bases, Total Width 7.95"

socket to socket length:

3"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Powder coated steel
Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

2.22 lb

Additional Information:

*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM^® warranty policy here.
