OVERVIEW

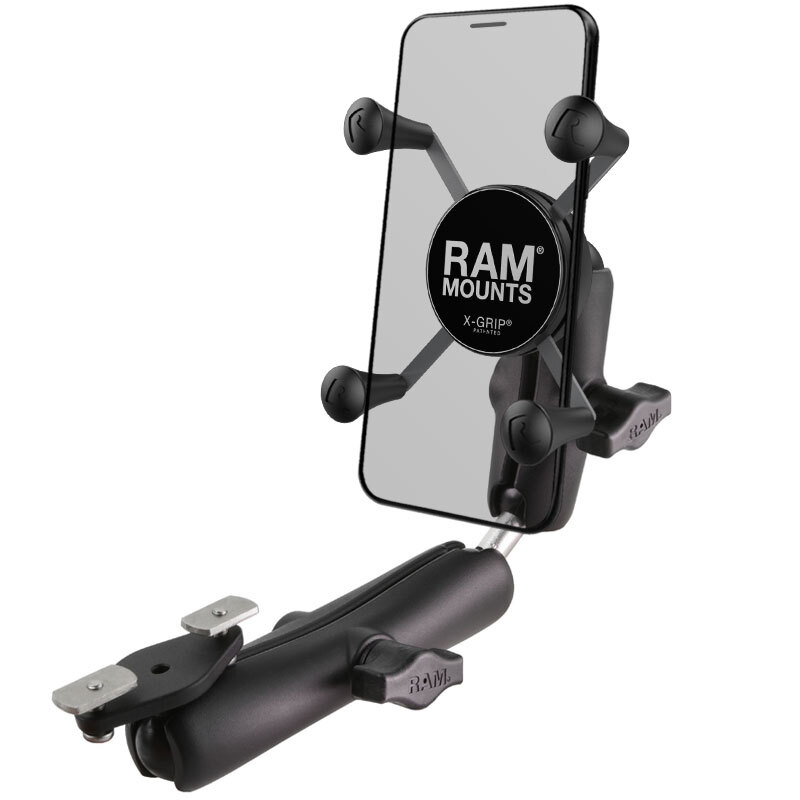

This kit includes a B size RAM^® diamond ball base with a universal hardware pack that accommodates the armrest on most major wheelchair brands, including Invacare, Permobil, and Quickie. With the included long double socket arm, double ball adapter, and medium double socket arm, connect and adjust the RAM^® X-Grip^® universal phone holder to your ideal position. The popular, spring-loaded RAM^® X-Grip^® provides a perfect fit for a wide variety of phones.

HARDWARE INCLUDED

(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) #10-32 T-Nuts
(2) #10-32 Flat Weld Nuts
(2) #10-32 x 1/2" Machine Screws
(2) M4 x 12mm Machine Screws
(2)M4 x 20mm Machine Screws
(2) M4 Stainless Steel Washers
(2) M4 Nylock Nuts

HOLDER DIMENSIONS

Width Range: 1.875" - 3.25"
Depth Range: .875" max

T-BOLT DIMENSIONS

Large: .48" x .95"
Small: .375" x .593"

HOLE PATTERN

2-Hole AMPS: 1.912"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum
High strength composite
Stainless steel

WEIGHT

1.3 lbs.
