OVERVIEW

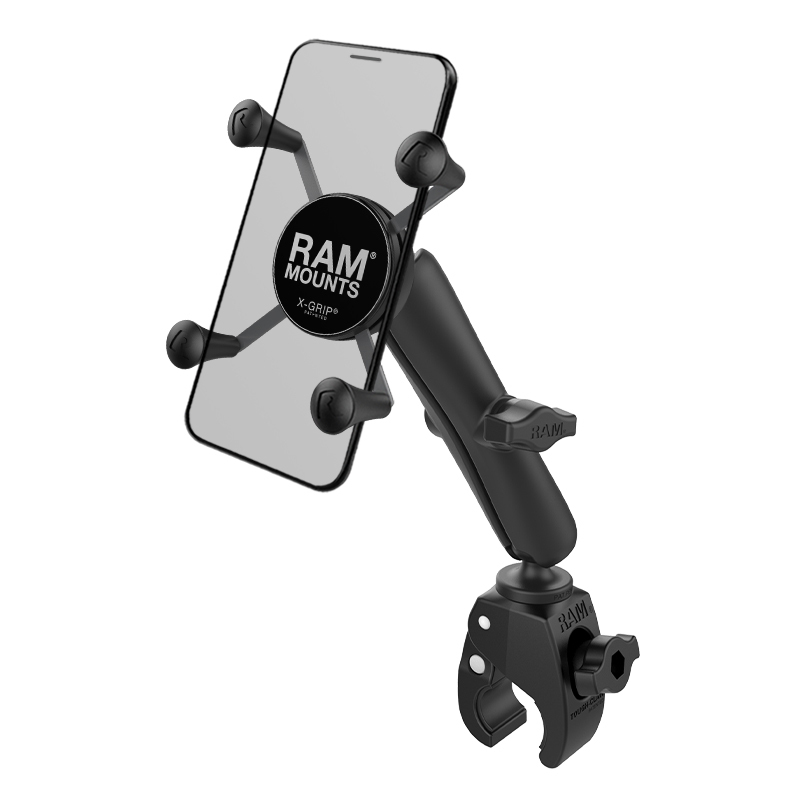

The RAM-B-400-C-UN7U consists of the Tough-Claw rail clamp base, LONG length double socket arm and universal spring loaded X-Grip® cradle for phones. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your tablet. Included are easy access grip knobs for quick insertion and release of your handheld device. The Tough-Claw rail clamp base is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw can be clamped on rails from 0.625" - 1.14" outer diameter. Perfectly suited for mounting on the yoke of an aircraft, handlebars and seat posts of bicycles, kayak rails, roll bars and much more, the RAM® Tough-Claw will soon become another essential RAM® component in your collection of mounting options. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

HARDWARE INCLUDED

(1) Optional Tether
(1) Glue Tube for Rubber Caps

HOLDER DIMENSIONS

Width Range: 1.875" - 3.25"
Depth Range: .875" max

CLAMP RANGE

.625" - 1.14" diameter

SOCKET-TO-SOCKET LENGTH

5.31"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum
High strength composite
Stainless steel



ADDITIONAL INFORMATION

  • Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.





 xgrip un7 animation of cradle dimensions

SKU RAM-B-400-C-UN7U
Barcode # 793442943874
Shipping Weight 1.2000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m
Shipping Cubic 0.008000000m3
