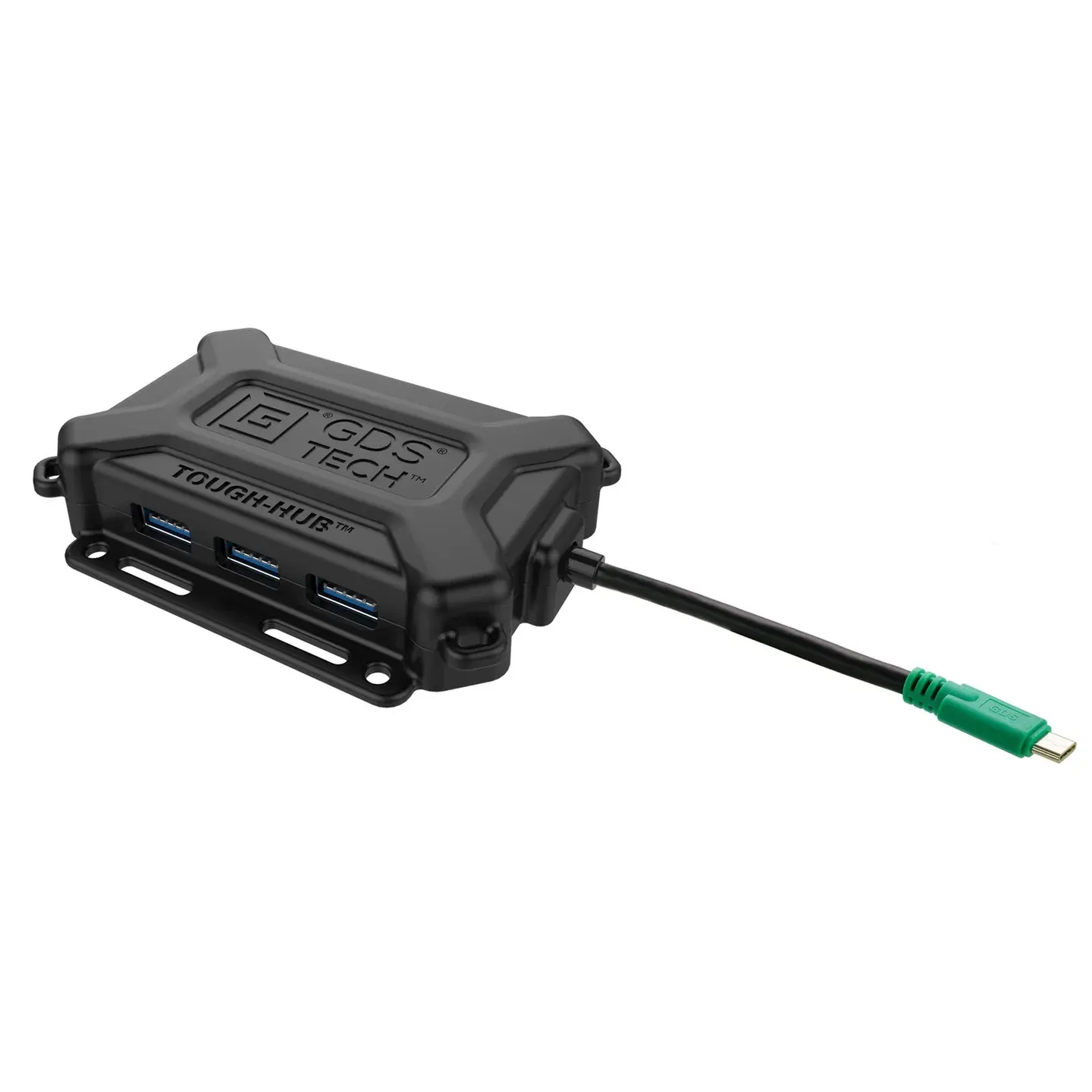

RAM GDS® Tough-Hub™ With USB Type-C For Vehicles

Overview

The GDS^® Tough-Hub^™ With USB Type-C For Vehicles (RAM-GDS-HUB-TYPEC-01-B) is a rugged, universal USB-C hub built to expand the capabilities of your mobile workstation. Designed for vehicles and demanding environments, it allows you to connect multiple inputs and outputs to a single phone or tablet. Simply plug your device into the USB-C pigtail connector, then connect accessories like a keyboard, mouse, external storage, or an HDMI adapter. The HDMI output supports both Samsung DeX^™ and screen mirroring, turning your mobile device into a desktop-like experience on the go. Engineered for durability, the Tough-Hub^™ features integrated mounting holes for secure installation and cable management with zip ties. It’s also fully compatible with any USB-C Power Delivery power source, including the full line of GDS^® Charge^™ accessories. Always Protected. Always Connected.^®

Features

• Easily connect accessories and peripherals to your device using a variety of inputs and ouputs
• Includes both USB Type-A and USB Type-C power delivery ports
• HDMI output supports Samsung DeX and screen mirroring for compatible devices
• USB Type-C pigtail connector supports most Type-C phones and tablets
• Backed by a 3-year warranty

Specs

packaging type:

Retail Box

transfer speed:

USB 3.0 super speed (5Gbps), downward compatible with USB 2.0

operating temperature:

-10°C to +70°C

storage temperature:

0°C to +45°C

ports:

(4) USB Type A Ports - One supports BC 1.2 with power up to 7.5W (5V/1.5A)
(1) RJ45 Port - Supports 10/100/1000Mbps bandwidth
(1) HDMI Port - Resolution up to 4Kx2K@30Hz
(1) USB Type-C Port - Supports data and PD charging 100W (20V/5A)

regulatory:

FCC, CE, WEEE and RoHS Compliant

Warranty:

3 year warranty

Weight:

0.35 lb

Additional Information:

This hub requires a Type-C Power Delivery power supply, such as the compatible GDS^® Charge^™ accessories. Power supplies that do not support power delivery will either not charge or will charge slower.
