Overview

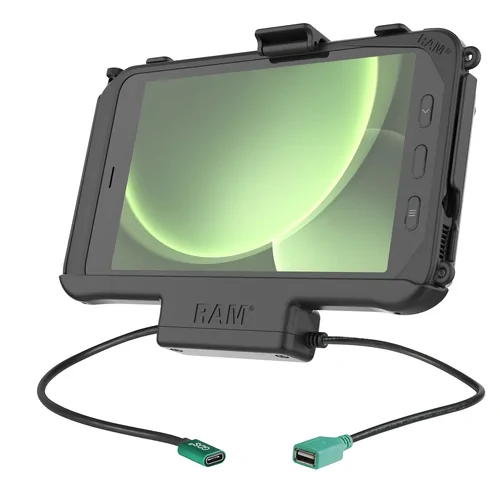

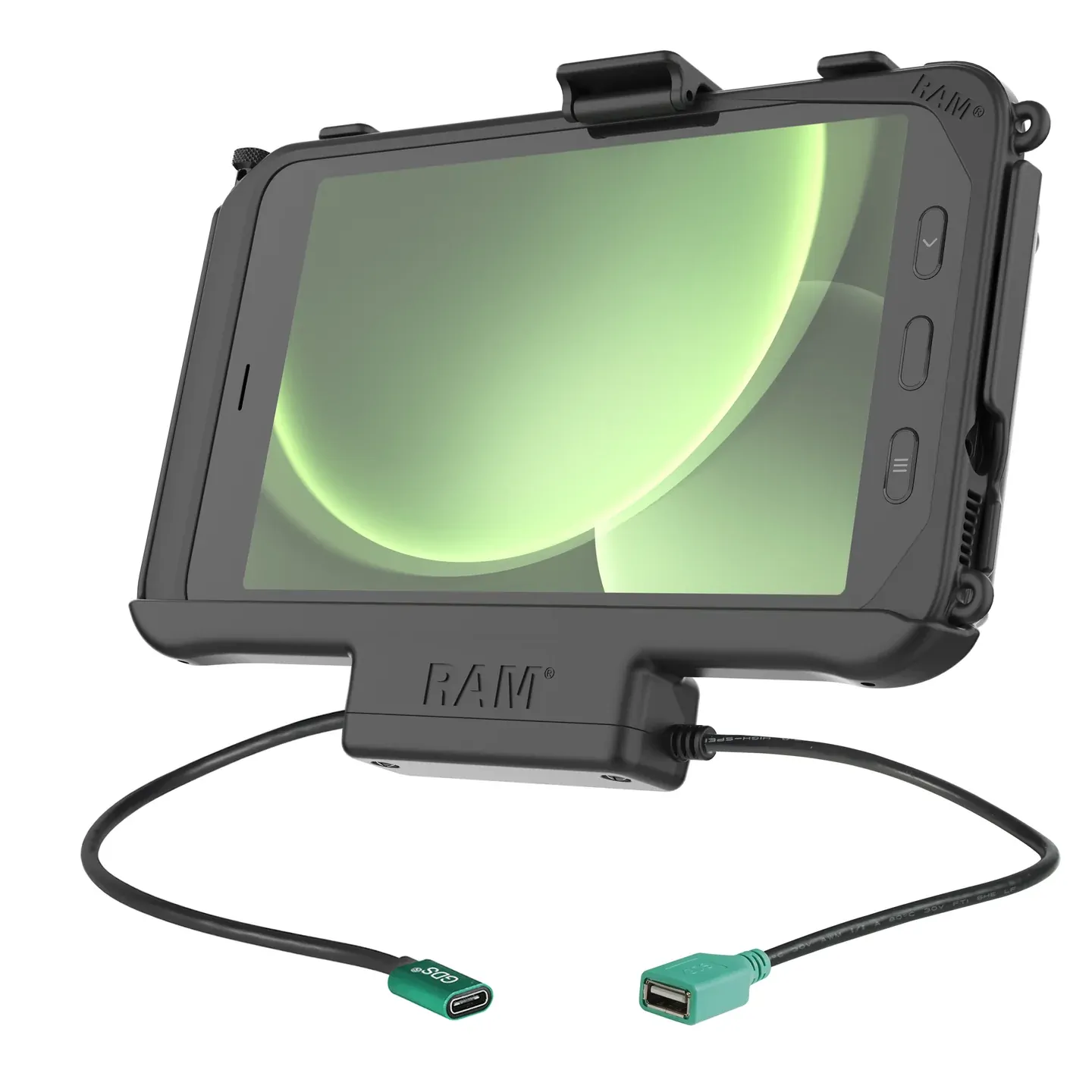

This RAM^® EZ-Roll’r^™ power cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS^® pogo pins while taking advantage of this cradle's USB-A port to support an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM^® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS^® Hand-Stand^™ attachment so you can easily take your Tab Active5, 3 & 2 from your vehicle, to your person, to your desk with zero hassle.



Features

• RAM^® EZ-Roll'r^™ form-fit powered dock for the Samsung Galaxy Tab Active5, Tab Active3 and 2 provides charging and connects one additional USB peripheral through an integrated pogo pin connector
• Compatible with the Samsung OEM skin as well as the RAM^® Skin^™; built-in cavity in the back allows for GDS^® Hand-Stand^™ compatibility
• Powered via USB-C connector (Non-Power Delivery charger required); connect a single input device via USB-A connector
• Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS^® shoulder strap loops on RAM^® Skin^™
• Backed by a 3-year warranty





Hardware Included:

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Optional Cable Clamp Housings
(6) Large Cable Ties
(10) Small Cable Ties

Product Dimensions:

Width: 9.24"
Height: 6.34"
Depth: 2.57"

Hole Pattern:

4-Hole AMPS: 1.181" x 1.496"

Materials:

High strength composite

Packaging Type:

Poly Bag

Input Voltage:

5.3-5.4VDC

Output Voltage:

5VDC

Power Output:

500mA

Input Connector:

USB Type-C Female

Input cable length:

250mm

Output connector:

USB 1.1 Type A

Output cable length:

250mm

Peripheral output:

500mAh

Transfer speed:

12Mbps

Warranty:

3 year warranty

Weight:

0.71 lb

Additional Information:

Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly.

This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM^® Tough-Case^™ options here.
