FEATURES

• Spring-loaded holder secures the Samsung Tab S7+, S7 FE, S8+ & S9+ with a case; interchangeable end cups allow you to modify the holder when upgrading devices
• Compatible with RAM^® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of high-strength composites for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

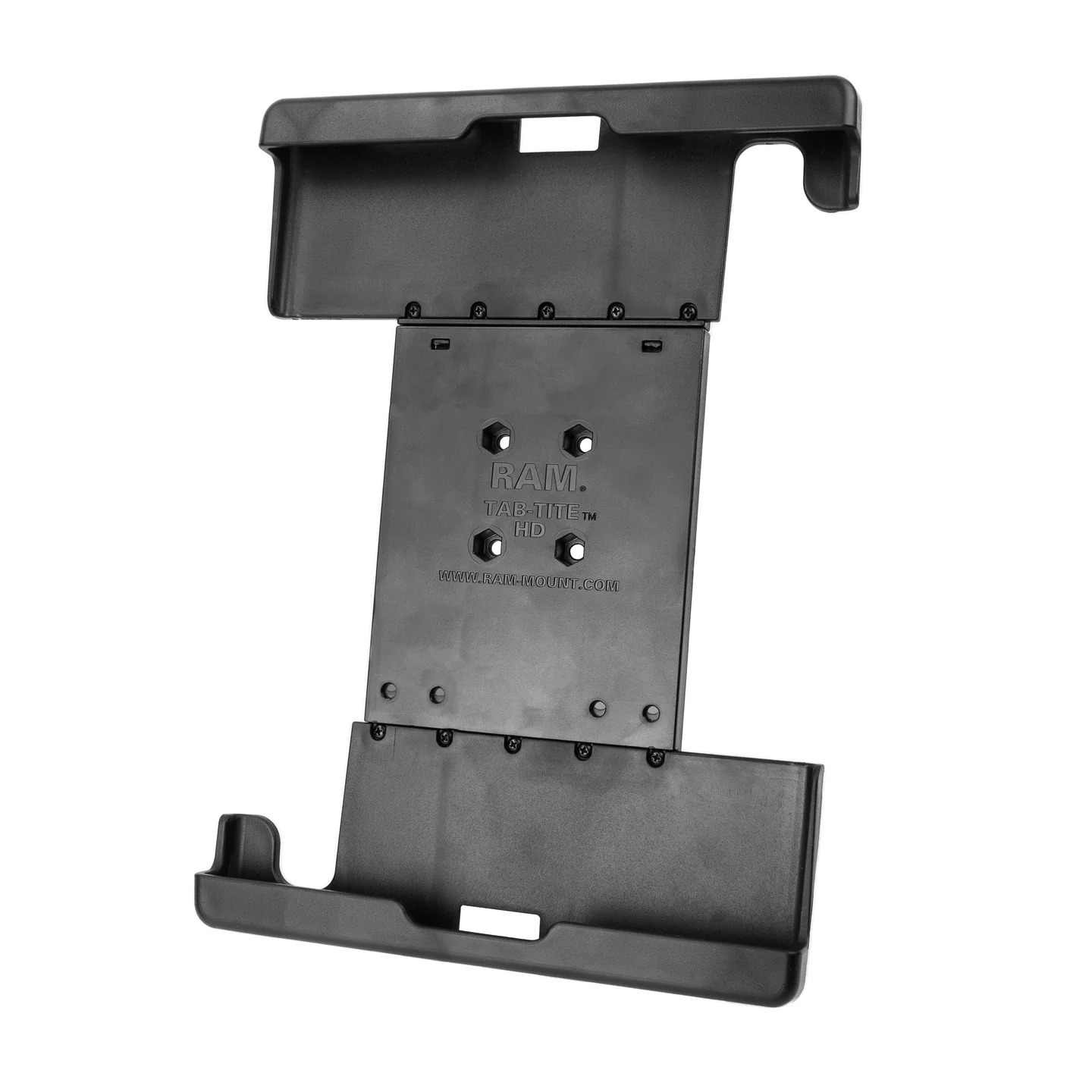

The RAM^® Tab-Tite^™ Holder for Samsung Tab S7+, S7 FE, S8+ & S9+ with Case (RAM-HOL-TAB36U) is a spring-loaded, quick-release device holder. The spring-loaded design makes it easy to insert and remove your tablet while keeping it secure in a variety of applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. Included is a set of four nuts and bolts to attach the holder to any RAM^® components that contain the universal AMPS hole pattern. This holder is compatible with the Samsung Tab S7+, S7 FE, S8+ & S9+ with a case.

HARDWARE INCLUDED

Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts

HOLDER DIMENSIONS

Height Range: 11.5" - 14"
Max Width: 8.125"
Max Depth: .79"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

ADDITIONAL INFORMATION

This holder is intended for larger, heavy duty cases. Thin or light duty cases may sit relatively loosely in the holder. For a better solution to support lighter duty cases, see RAM^® X-Grip^® option RAM-HOL-UN11U.

If your case has a built-in hand strap or kickstand, offset risers may be required: RAM-HOL-TAB-RISER2U.
