OVERVIEW

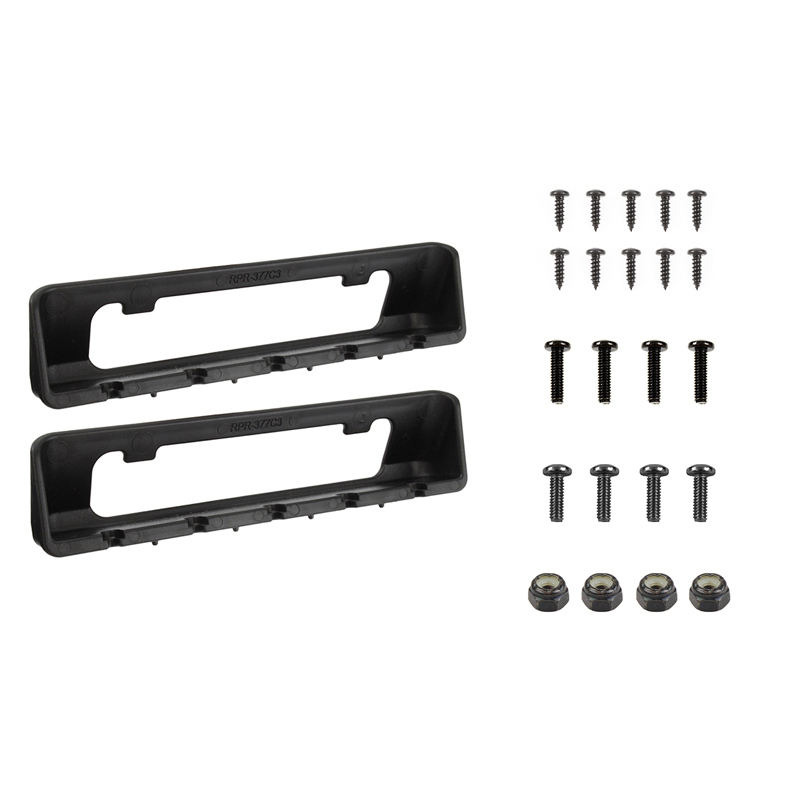

The RAM-HOL-TAB4-CUPSU includes (2 qty) Tab-Tite^™ cup ends and hardware. The interchangeable support cups can be used, along with all RAM Tab-Tite^™ and Tab-Lock^™ mounts; these include the universal backplate that support all TAB cups. Hardware is included to attach the cup ends to the backplate.

Cup End Dimensions:
Height: 7.13" to 9.13"
Width: 4" to 5.31"
Depth: 0.13" to 1.06"

HARDWARE INCLUDED

(10) #4 x 3/8" Sheet Metal Screws
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts

HOLDER DIMENSIONS

Height Range: 7.375" - 10"
Width Range: 4" - 5.31"
Depth Range: .13" - 1.06"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

WEIGHT

0.2 lbs.
