RAM Stubby Cup Holder Mount with RAM Qi2 15W Wireless Charger

Overview

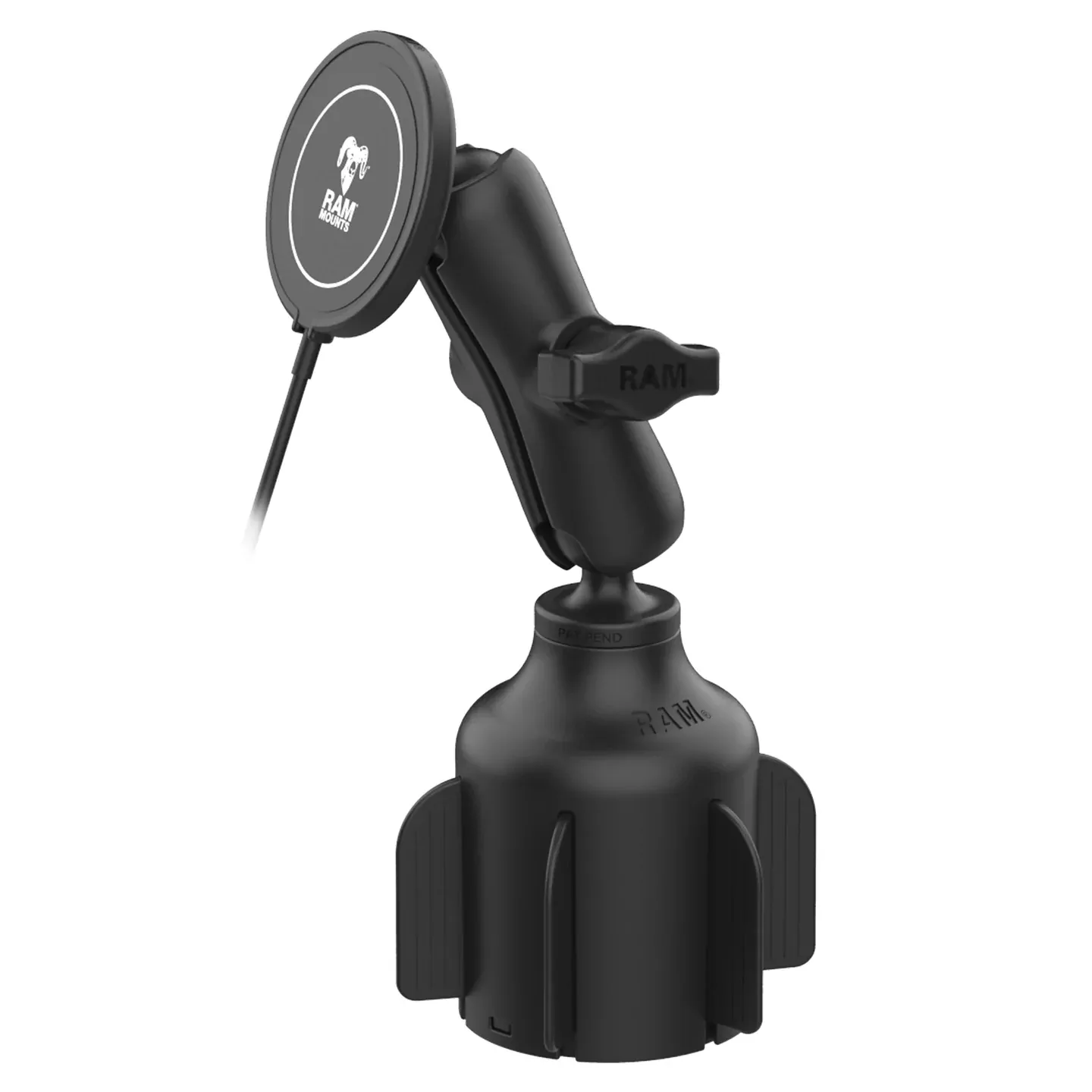

The RAM^® Stubby^™ Cup Holder Mount with RAM^® Qi2 15W Wireless Charger (RAP-B-299-4-AP-MAG-1-W2MU) is your all-in-one solution for mounting and charging on the go. Just drop the Stubby^™ base into your cup holder for quick, no-tools installation, it’s that easy. This kit includes the RAM^® Qi2 15W Wireless Charger, ball adapter, Stubby^™ cup holder base, and B size medium socket arm—designed to fit snugly in small to medium cup holders (2.57"–3.5" inside diameter). With IP67 waterproof protection and a durable woven USB-C cord, you’ll get a reliable charge every time. Plus, harness your iPhone’s MagSafe^® magnetic charging for a seamless, secure connection, no fumbling with cables.



Features

• Wireless charging bundle built for vehicle cup holders
• 15W Qi2 fast charging for efficient power delivery
• Includes RAM^® Stubby^™ cup holder weighted ball base and medium length B size RAM^® double socket arm
• Magsafe compatible; precise magnetic alignment for iPhone 12 and later, and AirPods
• Mounting components backs by a lifetime warranty; electronics backed by a 3-year warranty

Specs



wedge dimensions:

Fits cup holders between 2.57" - 3.5" inside diameter

socket to socket length:

3"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

High strength composite

packaging type:

Poly Bag

power specifications:

Operating Frequency: 360KHZ
Stand-by Consumption ~ 0.008A / 8mA @5VDC
80% Wireless Power Transfer Efficiency or Greater
Supports USB 2.0 BC1.2 Power Supply (5V)
Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0

input voltage:

USB 5V @ 3A
QC2.0 9V @ 2.22A
USB PD 2.0 5-15V @ 2A

power output:

BPP - 5W
EPP - 7.5W
MPP - 15W

output connector:

USB Type-C Male with USB-A Adapter

output cable length:

1 Meter

operating temperature:

0°C to +40°C

storage temperature:

-20°C to +80°C

regulatory:

Over Current Protection
Short Cirtcuit Protection
Over Temperature Protection
RoHS Compliance
WEEE Compliance

certifications:

IP67
SAE J1455
FCC Certification
CE Certification
E-Mark Certification
RCM Certification

Weight:

1.43 lb

Additional Information:

The included wireless charger will support up to 8mm charging distance between puck and device.
