The Ronin-SC Focus Motor works with the Ronin-SC Focus Wheel to control the camera focus, providing optimal shooting experience with a compact, low-noise design.

Focus Motor × 1

Rod Mount × 1

12 mm Rod × 1

M4 Screw × 4

Focus Gear Strip × 1

RSS Splitter × 1

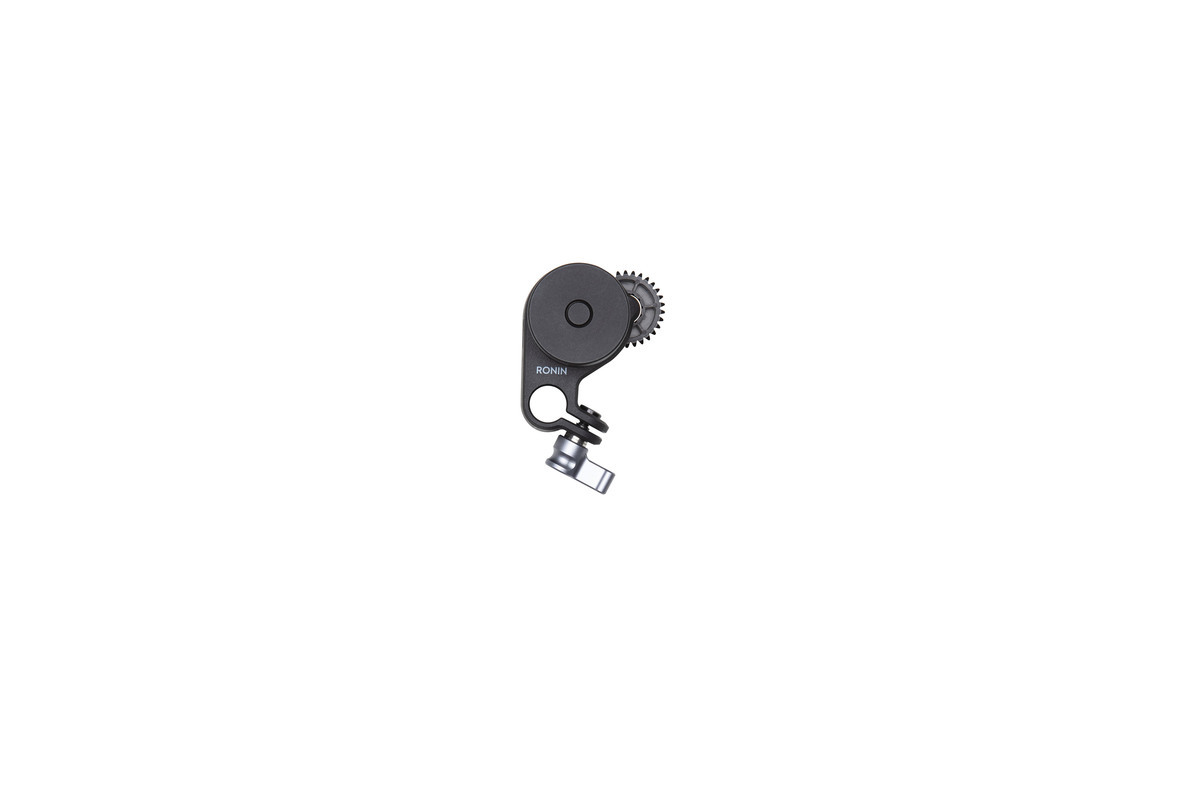

Focus Motor

Weight: 88 g

Dimensions: 71×47×34 mm

Max Torque: 0.2 Nm

Max Operating Speed: 100 RPM

Operating Current: Free current: 50 mA (5 V); Stall current: 1.2 A (5 V)

Operating Voltage: 5 V

Noise: 25 dB

Rod Clamp Inner Diameter: 12 mm

Gear: No. of teeth 40; Module: 0.8

Operating Temperature: -20 to 45°C



Gear:

No. of teeth: 151

Module: 0.8

Diameter: 30-110 mm

Length: 377 mm

Ronin-SC
