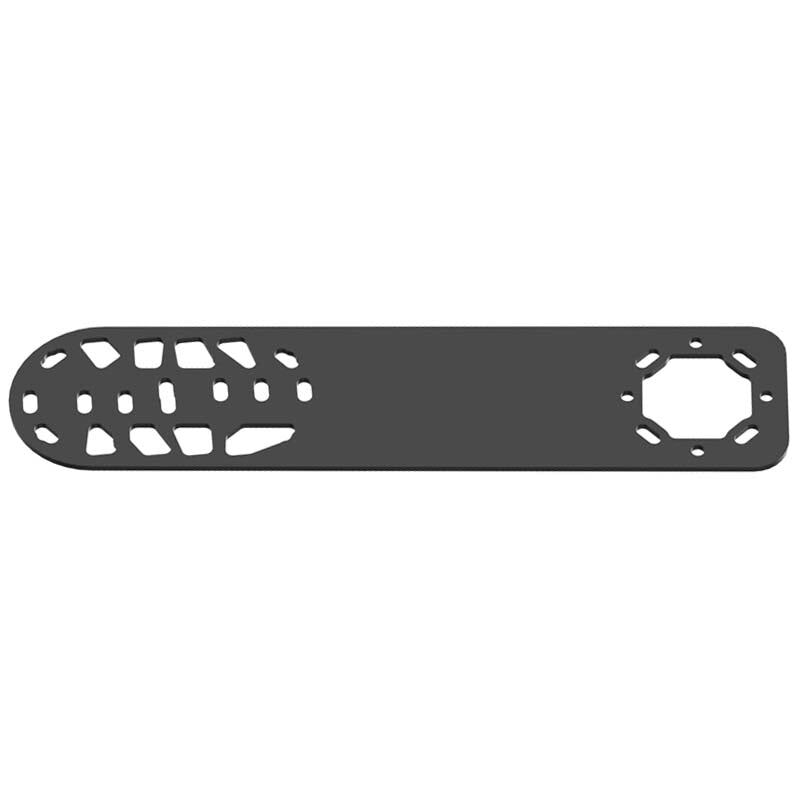

RAM Standard Bracket Adapter for Speakers & Microphones
Attach a speaker or microphone to your RAM® Tab-Tite™ or RAM® Tab-Lock™ cradle with the RAM® Speaker/Microphone Bracket. Simply install the bracket between the cradle and the ball base – two screws are included for attaching the bracket to any RAM® Tab-Lock™ cradle. Compatible with speakers, microphones and accessories that use the common AMPS hole pattern, the bracket features four spaced AMPS hole pattern sets that allow for various mounting heights. Also included is a vertical and horizontal set of holes for attaching a diamond base. Measuring 10.81" in length, this bracket supports both portrait and landscape placement.
Specifications
| Hardware Included | (2) #8 x 3/4" Sheet Metal Screws | (4) #8-32 x 3/4" Machine Screws | (2) #8-32 x 3/8" Machine Screws | (2) #8-32 Nylock Nuts | (2) M4 x 35mm Machine Screws | (2) M4 Nylock Nuts |
| Product Dimensions | Overall Length: 10.81" |
| Hole Pattern | See Drawing |
| Materials | Powder coated steel |
| Packaging Type | Poly Bag |
| Weight | 0.69 lb |
| Additional Information | If you are connecting a GDS® Uni-Conn™ Dock, RAP-SPACER-238-NISU Spacer is required. |
| SKU | RAM-101-MIC2U |
| Barcode # | 793442006951 |
| Brand | Ram Mounts |
| Shipping Weight | 0.4000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.040m |
| Shipping Length | 0.100m |
| Shipping Cubic | 0.000800000m3 |
