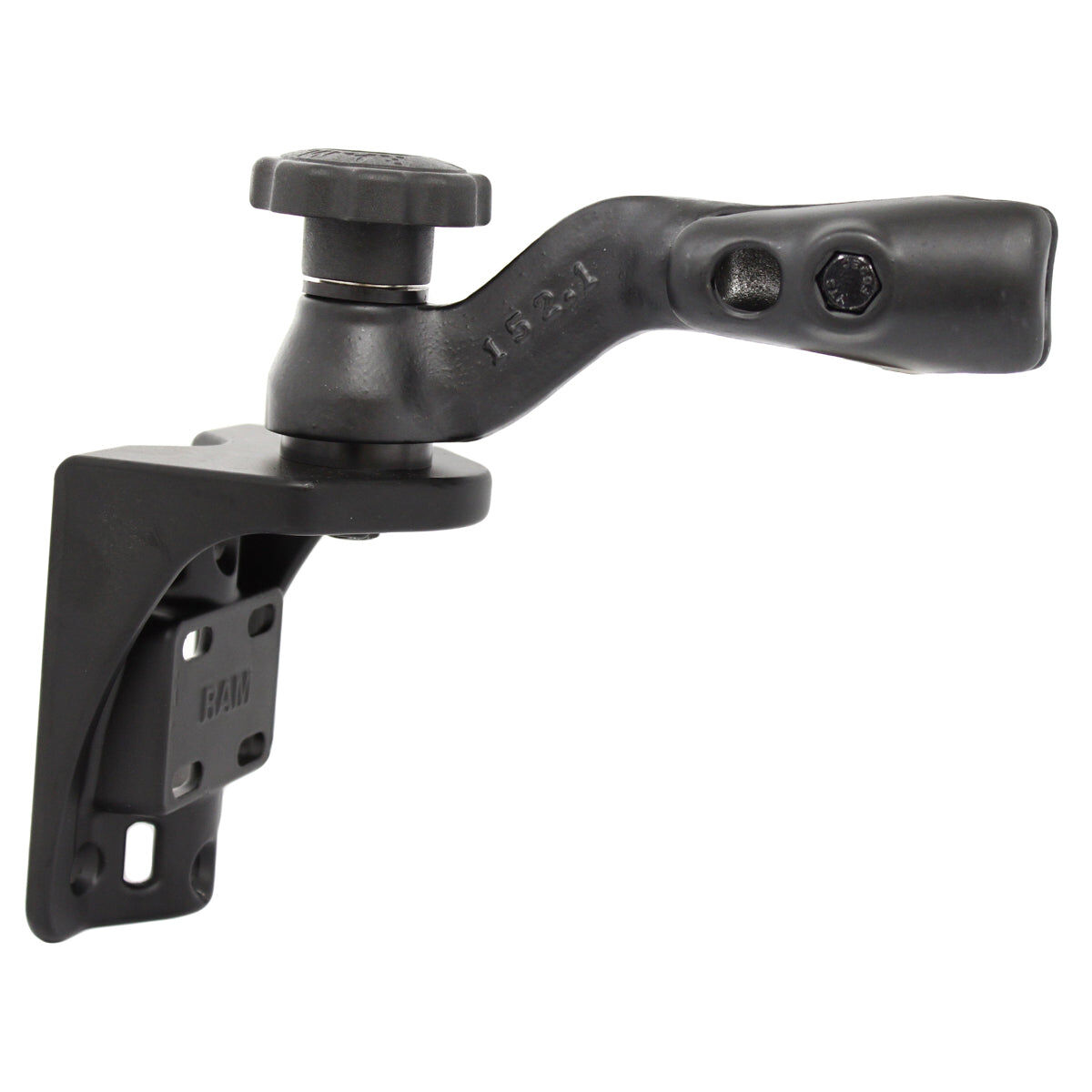

RAM Vertical 6" Swing Arm Mount with Fixed Socket Arm
The RAM-109V-4U consists of a 6" long curved swing arm with open socket and vertical surface mounting base. There are two (2) pivoting points on the mount: one at the swing arm and base and one at the center of the open single socket. Each pivoting point allows a complete 360 degree rotation. The open socket will accommodate all RAM 1.5" diameter ball component parts.
Specifications
| Product Dimensions | Overall Height: 8.45" | Total Swing Arm Length: 6" |
| Hole Pattern | See Drawing |
| Ball Size | C Size (1.5") |
| Weight Capacity | Standard Use: 4 lbs | Heavy-Duty Use: 3 lbs |
| Materials | Marine-grade aluminum |
| Packaging Type | Poly Bag |
| Weight | 2.22 lb |
| SKU | RAM-109V-4U |
| Barcode # | 793442903908 |
| Brand | Ram Mounts |
