FEATURES

  • Combination handlebar and brake/clutch reservoir base for motorcycles; includes U-bolt hardware
  • Included B size 1" RAM rubber ball allows for connection to any B size RAM double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of power-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
  • Backed by a lifetime warranty



OVERVIEW

The RAM-B-309-7U combination handlebar and brake/clutch reservoir base provides the ultimate flexibility for mounting to your motorcycle. Attach the base to either your handlebar or brake/clutch, and achieve near-infinite adjustability and ideal viewing angles for your phone, GPS unit, or action camera. The zinc-coated metal U-bolt accommodates rails ranging from 0.5" to 1.25" in diameter. Hardware included.

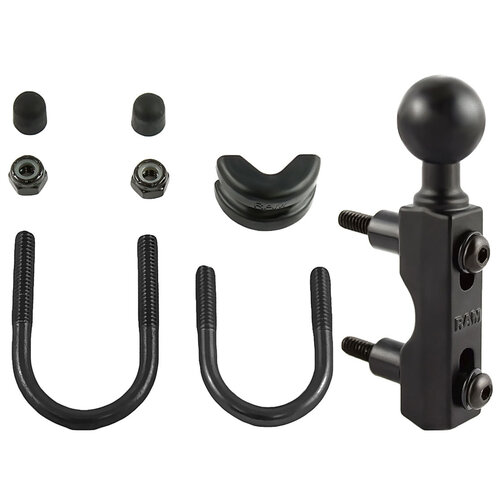

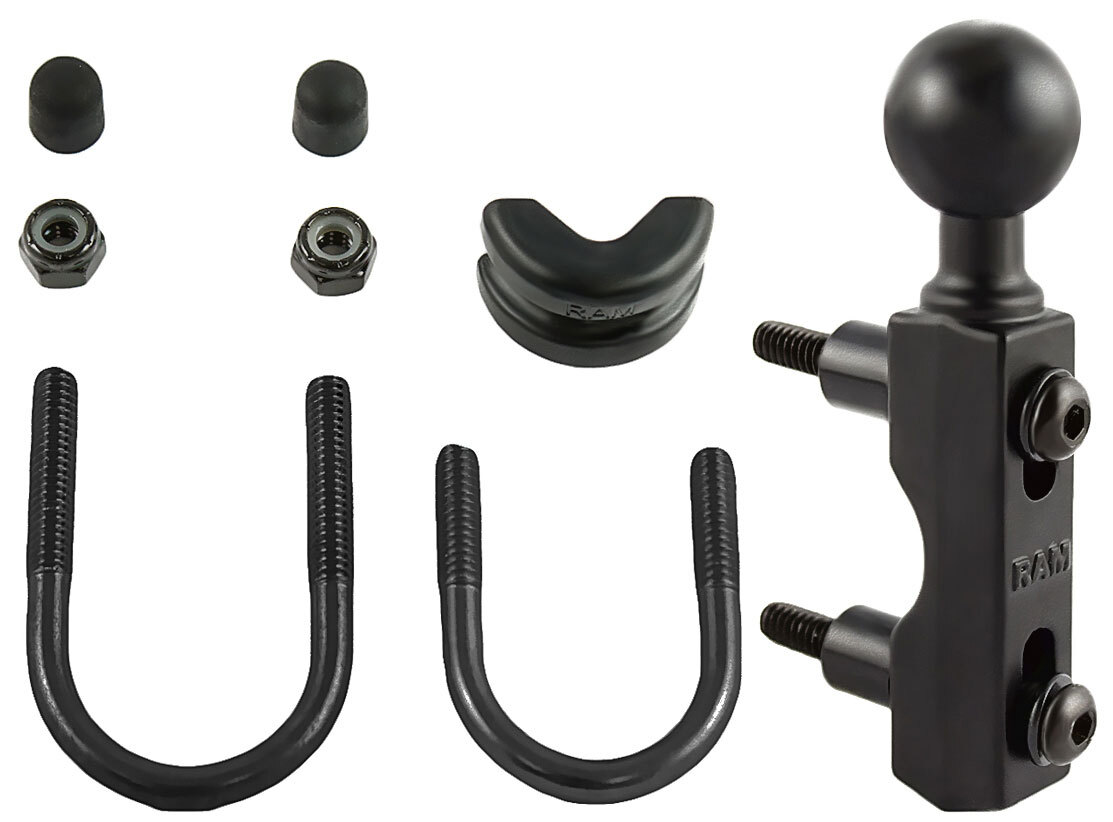

HARDWARE INCLUDED

(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE

.5" - 1.25" diameter

BALL & SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum







SKU RAM-B-309-7U
Barcode # 793442904110
Brand RAM Mounts
Shipping Weight 0.1000kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.050m
