When you buy the DJI D-RTK 2 High Precision GNSS Mobile Station from Camzilla - the drone experts - you can rest assured that you're ordering from the industry experts with in-depth product knowledge and that you'll receive an unparallelled level of customer service. We're not just after a quick sale - we're looking to establish and maintain long-term relationships with our clients. All of our products are backed by the Manufacturers' Australian Warranty, and we offer free set-up and activation of your equipment (if desired) and free technical support for the life of your product.

Centimeter-Level Positioning

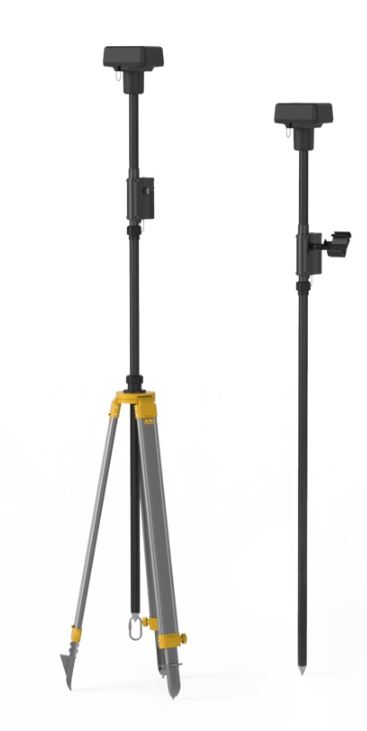

D-RTK 2 Mobile Station fully-supports GPS, GLONASS, Beidou and Galileo signals. Easy and quick to set up, the D-RTK 2 Mobile Station provides real-time differential data for drones, allowing pilots to achieve centimetre-level positioning accuracy.

The built-in, high gain antenna guarantees better signal reception from more satellites – even when obstructions are present.





Stay Connected for Any Mission

D-RTK 2 Mobile Station supports communication via 4G, OcuSync, WiFi and LAN, ensuring uninterrupted, stable data transmission under any application scenario. Up to 5 remote controllers* can be simultaneously-connected to the D-RTK 2 mobile, making possible coordinated operations using multiple drones. The result? More efficient operations.



Durability You Can Trust



Featuring IP67 level ingress protection and a lightweight carbon fiber body, the D-RTK 2 Mobile Station is ultra-portable and up for any task, no matter how tough. The built-in IMUs monitor movements and calibrate the tilt sensors to alert the operator of any abnormalities during the mission, minimizing risks.





GNSS RECEVIER

GNSS Frequency Simultaneously receive:
GPS: L1 C/A, L2, L5
BEIDOU: B1, B2, B3
GLONASS: F1, F2
Galileo: E1, E5A, E5B
Positioning Accuracy Single Point
Horizontal:1.5 m(RMS)
Vertical:3.0 m(RMS)
RTK
Horizontal:1 cm+ 1 ppm(RMS)
Vertical:2 cm+ 1 ppm(RMS)
1 ppm: For every 1 km increase in distance, the accuracy will be 1 mm less. For example, the horizontal accuracy is 1.1 cm when the receiving end is 1 km away from the base station.
Positioning Update Rate 1 Hz, 2 Hz, 5 Hz, 10 Hz and 20 Hz
Cold Start <45 s
Hot Start <10 s
Recapture Time <1 s
Initialization Reliability >99.9%
Differential Data Format RTCM 2.X/3.X

IMU

Features Built-in high-precision 6-axis accelerometer
D-RTK 2 movement monitoring
Sloping measurements
Electronic bubble level

PHYSICAL CHARACTERISTICS

Dimensions(D-RTK 2 body with extension rod) 68 mm×168 mm×1708 mm
IP Rating IP67

COMMUNICATION AND DATA STORAGE

Data Link OcuSync, Wi-Fi, LAN, 4G
Operating Frequency 2.400 GHz to 2.483 GHz (China, United States, Australia, Europe, Japan, Korea)
5.725 GHz to 5.850 GHz (China, United States, Australia)
EIRP OcuSync
2.4 GHz
SRRC (Mainland China) / CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm
FCC (United States, Australia) / NCC (Taiwan, China): < 26 dBm
5.8 GHz
FCC (United States, Australia) / SRRC (Mainland China) / NCC (Taiwan, China): < 26 dBm
Wi-Fi
2.4 GHz
SRRC (Mainland China) / CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm
FCC (United States, Australia) / NCC (Taiwan, China): < 22 dBm
5.8 GHz
FCC (United States, Australia) / SRRC (Mainland China) / NCC (Taiwan, China): < 22 dBm
Communication Distance OcuSync: 2 km (unobstructed and free of interference, when the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m, when the difference in height between the remote controller and D-RTK 2 is less than 2 m, and when the remote controller is 1.2 m from ground level)
Memory Capacity 16 GB

ELECTRICAL CHARACTERISTICS

Power Consumption 12 W
Power Supply 16.5 to 58.8VDC
Battery Type:Lithium-ion battery
Capacity: 4920 mAh
Energy: 37.3 WH
Run Time WB37 battery:>2 h
MG-12000P battery:>50 h

OPERATING TEMPERATURE

Operating Temperature 32° to 113° F (0° to 45° C)
SKU DJID-RTKmobilestation
Brand DJI
Shipping Weight 10.0000kg
