The New Benchmark for Aerial Surveying

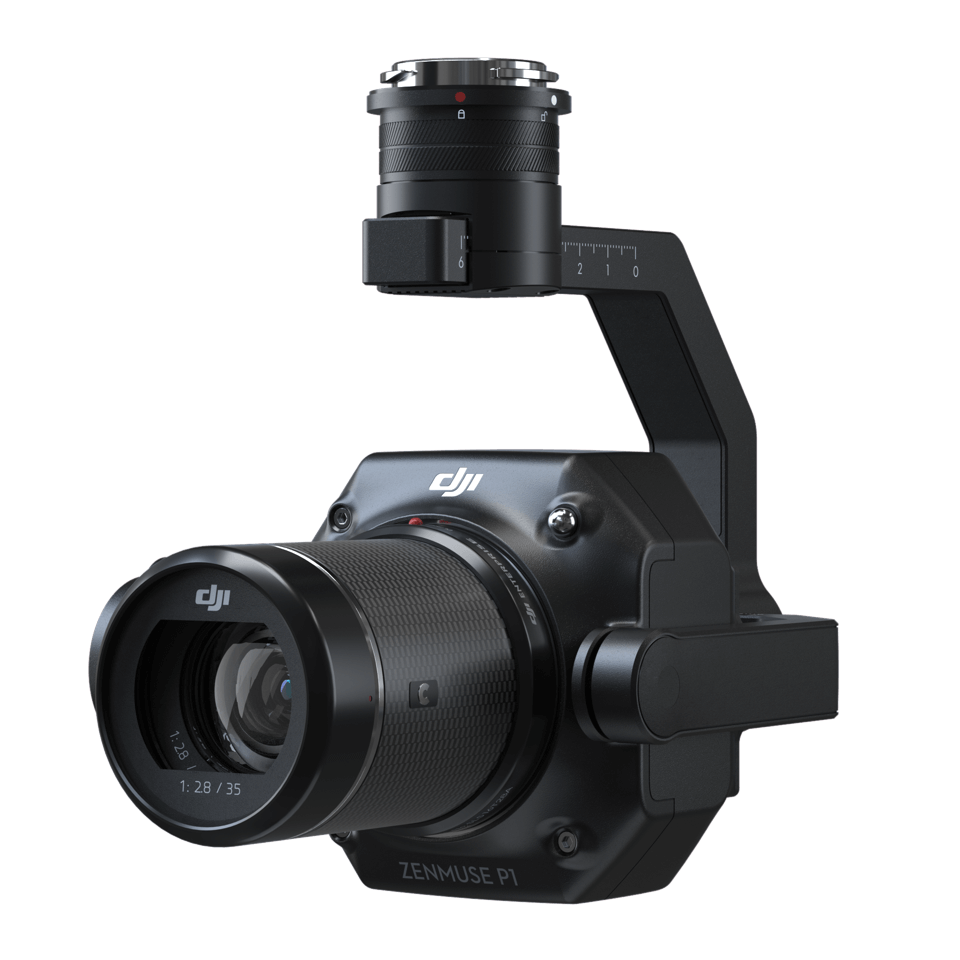

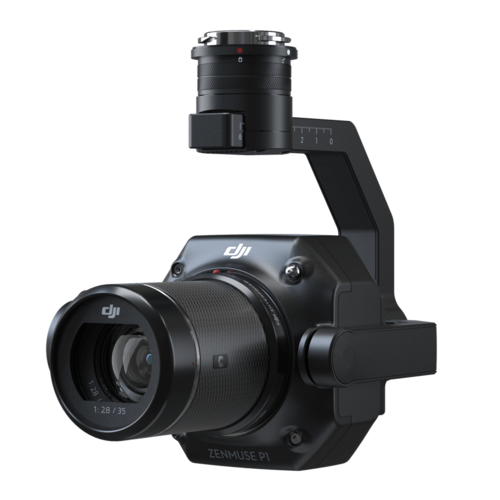

The Zenmuse P1 integrates a full-frame sensor with interchangeable fixed-focus lenses on a 3-axis stabilized gimbal. Designed for photogrammetry flight missions, it takes efficiency and accuracy to a whole new level.



[1] Using Mapping Mission at a GSD of 3 cm, with an 75% front overlap rate and a 55% side overlap rate.

[2] At a GSD of 3 cm, with an 75% front overlap rate and a 55% side overlap rate.

[3] The global shutter is achieved with a central leaf shutter.

[4] Using Smart Oblique Capture at a GSD of 3 cm, with an 80% front overlap rate and a 60% side overlap rate.

[5] Area mapped: 1.5 km2, flight altitude: 200 m

[6] Area mapped: 0.5 km2, flight altitude: 200 m

[7] Support coming soon.

Specs





General

  • Product Name

  • ZENMUSE P1

  • Dimensions

  • 198×166×129 mm

  • Weight

  • Approx. 800 g

  • Power

  • 20W

  • IP Rating

  • IP4X

  • Supported Aircraft

  • Matrice 300 RTK

  • Operating Temperature Range

  • -20° to 50° C (-4° to 122° F)

  • Storage Temperature Range

  • -20° to 60° C (-4° to 140° F)

  • Absolute Accuracy

  • Horizontal: 3 cm, Vertical: 5 cm *
    * Using Mapping Mission at a GSD of 3 cm and flight speed of 15 m/s, with an 75% front overlap rate and a 55% side overlap rate.

Camera

  • Sensor

  • Sensor size (Still): 35.9×24 mm (Full frame)
    Sensor size (Max video recording area): 34×19 mm
    Effective Pixels: 45MP
    Pixel size: 4.4 μm

  • Supported Lenses

  • DJI DL 24mm F2.8 LS ASPH(ENTERPRISE) (with lens hood and balancing ring/filter), FOV 84°
    DJI DL 35mm F2.8 LS ASPH(ENTERPRISE) (with lens hood and balancing ring/filter), FOV 63.5°
    DJI DL 50mm F2.8 LS ASPH(ENTERPRISE) (with lens hood and balancing ring/filter), FOV 46.8°

  • Supported SD Cards

  • SD: UHS-I rating or above; Max capacity: 512 GB

  • Storage Files

  • Photo / GNSS Raw Observation Data/ Image Log File

  • Photo Size

  • 3:2 (8192×5460)

  • Operation Modes

  • Photo, Video, Playback

  • Minimum photo interval

  • 0.7 s

  • Shutter Speed

  • Mechanical Shutter Speed: 1/2000*-1 s
    Electronic Shutter Speed: 1/8000-1 s
    *Aperature value no larger than f/5.6

  • Aperture Range

  • f/2.8-f/16

  • ISO Range

  • Photo: 100-25600
    Video: 100-25600

Video

  • Video Format

  • MP4

  • Video Resolution

  • 16:9 (1920×1080)
    16:9 (3840×2160)*
    *Only 35mm lens supported

  • Frame Rate

  • 60fps

Gimbal

  • Stabilized System

  • 3-axis (tilt, roll, pan)

  • Angular Vibration Range

  • ±0.01°

  • Mount

  • Detachable DJI SKYPORT

  • Mechanical Range

  • Tilt: -125° to +40°; Roll: -55° to +55°; Pan: ±320°
SKU DJIZMP1-rental
Brand DJI
Shipping Weight 3.6000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m
Shipping Cubic 0.008000000m3
