FEATURES

• Spring-loaded holder secures the Samsung Tab (S6 Lite, A7 10.4, S5e, and A 10.1) and Lenovo K10 Tablet with or without case; interchangeable end cups allow you to modify the holder when upgrading devices
• Compatible with RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of high-strength composites for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

OVERVIEW

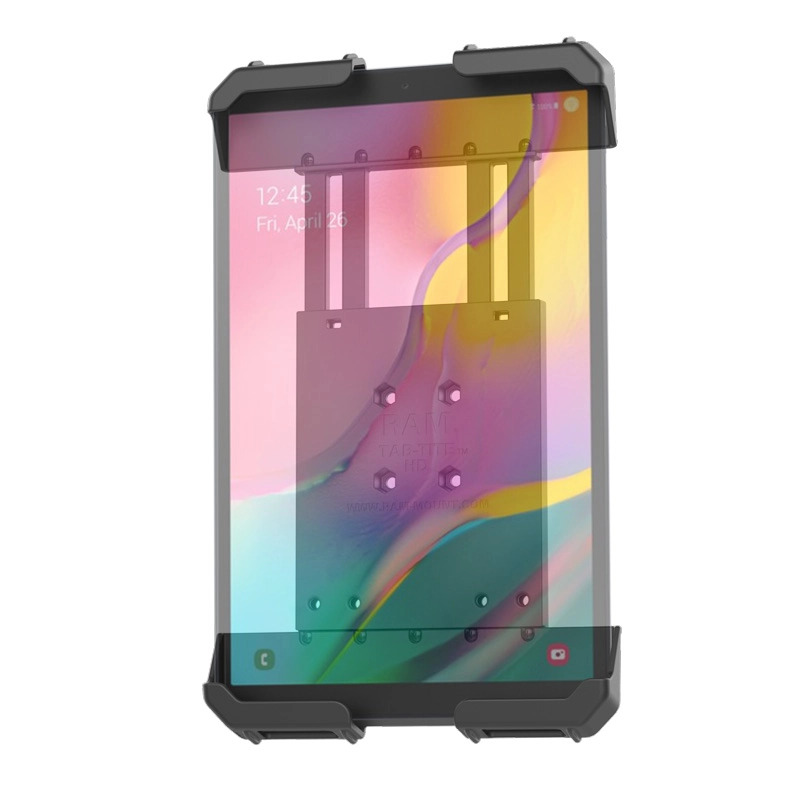

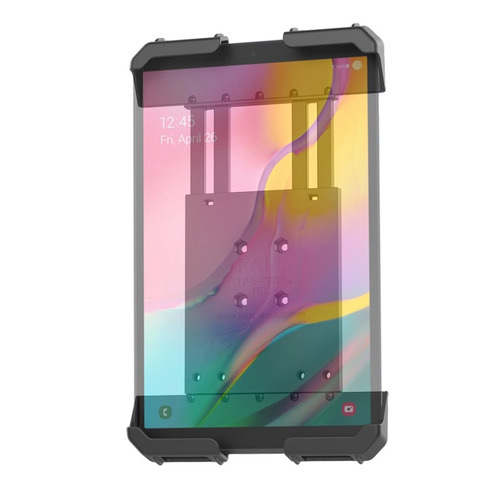

The RAM^® Tab-Tite^™ spring-loaded, quick release holder offers a secure fit with easy access to the mounted tablet. The spring-loaded design makes it easy to insert and remove your tablet, while keeping it secure in a variety of applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. Included is a set of four nuts and bolts to attach the holder to any RAM^® components that contain the universal AMPS hole pattern. For off road environments and use in open cockpit applications, we recommended the use of a tether to assist in securing your device. The RAM^® Tab-Tite^™ holder is compatible with any tablet within the listed dimensions.

HARDWARE INCLUDED

Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts

HOLDER DIMENSIONS

Height Range: 9.55" - 11.8"
Width Range: 5.5" - 6.95"
Depth Range: .2" - .66" max

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag
